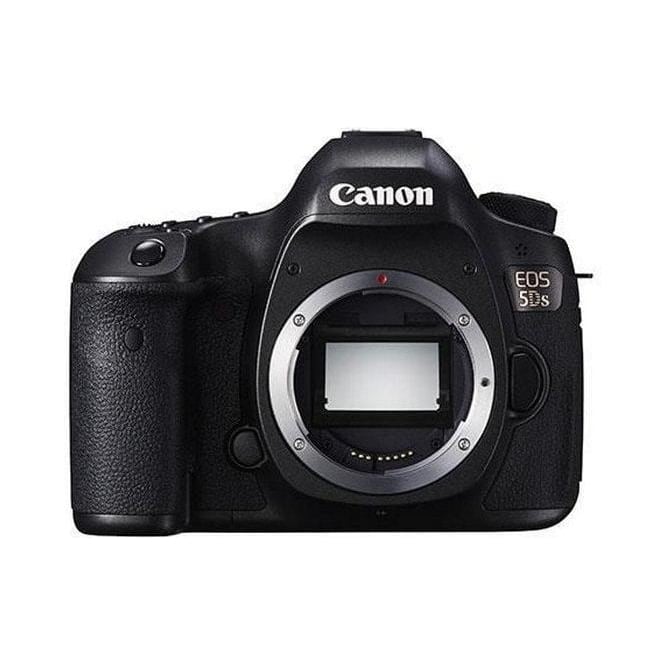

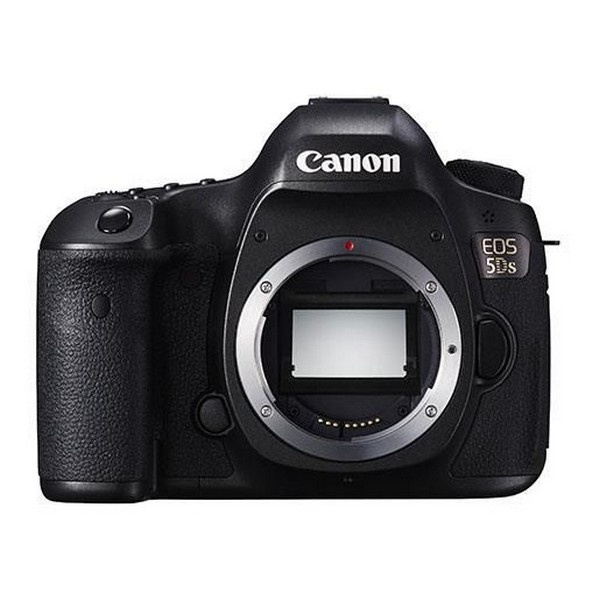

Canon EOS5DS (EOS 5DS, EOS/5DS, EOS-5DS, eos5ds) Digital SLR Body
The Freedom of High Resolution
Marking a new standard in high-resolution digital SLR photography, the Canon EOS 5DS camera shatters the status quo with a new 50.6 Megapixel, full-frame CMOS sensor. Perfect for commercial and fine art photography, or any other application that calls for extremely high-resolution, the EOS 5DS is the ultimate combination of EOS performance and ultra-high megapixel capture. It features an advanced, 61-point High Density Reticular AF system that includes 41 cross-type AF points and EOS iTR AF for precise AF in numerous situations. An anti-flicker function helps provide consistent exposure and color during continuous shooting under certain lighting conditions, while a built-in bulb timer and intervalometer expands creative opportunities without the need for an additional remote control. A refined mirror control mechanism reduces vibration and a Time Release Lag setting minimizes camera shake for sharp image capture when using mirror lock-up. New features like a crop function of 1.3x and 1.6x and a Custom Quick Control screen are complemented by advanced, multi-featured Full HD Movie capture, with Time Lapse Movie, and much more. With EOS performance and 50.6 Megapixel Capture, the EOS 5DS revolutionizes high-resolution photography!
The Canon EOS 5DS is a tough, full-frame DSLR with a 50.6 megapixel full frame CMOS sensor. Features include Dual DIGIC 6 processors for super-fast image processing, 61-point AF, 5fps continuous shooting, reduced mirror vibration for maximum sharpness and USB 3.0 interface.
Capture extraordinary detail
The 50.6 megapixel full frame CMOS sensor is capable of recording extraordinary levels of detail. The ultra-high resolution enables extensive cropping and still delivers stunning image quality. Even the built in 1.3x and 1.6x cropped shooting modes produce 30.5 and 19.6 megapixel files, respectively.
Fast image processing & responsiveness
Enjoy fast image processing and camera responsiveness – even with the large amounts of data captured by the 50.6-MP sensor - thanks to the Dual DIGIC 6 processors. You can catch all the action with an unrivalled ability to capture 50.6-MP resolution images at 5fps while USB 3.0 connectivity allows fast tethered shooting and remote camera control.
61-point wide-area autofocus
Focus quickly and precisely, even in low-light conditions using a 61-point AF System. 41 cross-type focus points, including five extra-sensitive double cross-type, provide extra accuracy.
AF Point Selection
Use all 61 AF points together, or group them into moveable zones that cover off-centre subjects. Alternatively, select just a single AF point to focus precisely on a specific part of the scene.
Advanced subject tracking and recognition
EOS Intelligent Tracking and Recognition (iTR) AF technology uses colour and face information to recognise and track subjects as they move around the frame. AF responsiveness can be customised using a simple tool, which adjusts the focus tracking according to the shooting environment and subject, so that other objects passing momentarily in front of the subject don’t interfere with focusing.
Weather sealing
Carry on shooting with confidence, whatever the conditions, thanks to weather-sealed controls that protect against water and dust, and a durable magnesium alloy construction.
Intelligent Viewfinder II
Enjoy a bright (approx.) 100 percent image with a customisable information overlay. 1.6x and 1.3x crops can be masked in the viewfinder and capured as JPEG files.
Dual memory card slots
CompactFlash and SD memory card slots enable automatic back up of files as you shoot, allowing easy sharing with clients and extending storage capacity.
High dynamic range imaging
Preserve the detail in highlight and shadow areas using HDR imaging. Ideal for shooting landscape and still-life shots it combines three images of different exposures: standard, underexposure and overexposure.
Multi exposure
Create stunning composite images in-camera using Multiple Exposure mode, which overlays images on top of each other with a choice of automatic multiple exposure control options.
Reduced mirror vibration for maximum sharpness
The EOS 5DS uses Canon’s Mirror Vibration Control System to reduce vibrations caused by internal movements within the camera, which can spoil image sharpness and reduce resolution. Cams are used to drive the mirror up and down in a more controlled fashion, avoiding any sudden stops and also softening the shutter-release sound.
Full HD EOS movies
Capture Full HD EOS Movies, with creative manual control over picture and sound.
Timer shooting functions
Create great time-lapse movies with a built-in, pre-programmable interval timer. For extreme long-exposure photography, the shutter can be locked up in bulb mode for a specified time.
Fine Detail Picture Style
Prioritise gradations and detail captured by the highresolution sensor using Fine Detail Picture Style, which also provides adjustable in-camera sharpening parameters like threshold and fineness for JPEG files - so you can deliver high impact images directly from the camera.
Key features at a glance:
A full-frame 50.6 megapixel CMOS sensor, and DIGIC 6 processing, deliver extraordinary resolution.
Shoot continuously at 5 fps, with dual DIGIC 6 processors.
USB 3.0 connectivity delivers fast tethered performance.
Use 61 AF points to focus quickly and accurately, and EOS iTR AF technology to track moving objects.
Set-up the EOS 5DS customisable controls just as you like, and configure the layout of its Custom Quick Control screen.
Capture Full HD EOS Movies, with creative control at your fingertips.
Create time-lapse projects in-camera.
See more detail and new levels of image quality
Capture extraordinary detail
Print fine-art quality images to A0 and beyond
Print ultra-high resolution images in large format – A0 and beyond - with low noise, true skin tones and outstanding, accurate colour reproduction thanks to the high performance Dual DIGIC 6 processors.
Reduced mirror vibration for maximum sharpness
The EOS 5DS uses Canon’s Mirror Vibration Control System to reduce vibrations caused by internal movements within the camera, which can spoil image sharpness and reduce resolution. Cams are used to drive the mirror up and down in a more controlled fashion, avoiding any sudden stops and also softening the shutter-release sound.
React and respond, staying ahead of the action
Enjoy fast image processing and camera responsiveness – even with the large amounts of data captured by the 50.6-MP sensor - thanks to the Dual DIGIC 6 processors. You can catch all the action with an unrivalled ability to capture 50.6-MP resolution images at 5fps while USB 3.0 connectivity allows fast tethered shooting and remote camera control.
Critical sharpness when it really matters
61-point wide-area autofocus
Advanced subject tracking and recognition
EOS Intelligent Tracking and Recognition (iTR) AF technology uses colour and face information to recognise and track subjects as they move around the frame. AF responsiveness can be customised using a simple tool, which adjusts the focus tracking according to the shooting environment and subject, so that other objects passing momentarily in front of the subject don’t interfere with focusing.
AF Point Selection
Use all 61 AF points together, or group them into moveable zones that cover off-centre subjects. Alternatively, select just a single AF point to focus precisely on a specific part of the scene.
Built for the way you work
Customisable controls
Intelligent Viewfinder II
Enjoy a bright (approximately) 100 per cent image with a customisable information overlay. 1.6x and 1.3x crops can be masked in the viewfinder and captured as JPEG files.
Customisable screen
Flexibly change the type, size and position of icons on the camera’s Custom Quick Control screen, so you can easily find your favourite settings.
Weather sealing
Carry on shooting with confidence, whatever the conditions, thanks to weather-sealed controls that protect against water and dust, plus a durable magnesium alloy construction.
Dual memory card slots
CompactFlash and SD memory card slots enable automatic back up of files as you shoot, allowing easy sharing with clients and an extended storage capacity.
In-camera functions empower your creativity
High dynamic range imaging
Multi exposure
Create stunning composite images in-camera using Multiple Exposure mode, which overlays images on top of each other with a choice of automatic multiple exposure control options.
Full HD EOS movies
Capture Full HD EOS Movies, with creative manual control over picture and sound.
Fine Detail Picture Style
Prioritise gradations and detail captured by the high-resolution sensor using Fine Detail Picture Style, which also provides adjustable in-camera sharpening parameters like threshold and fineness for JPEG files - so you can deliver high impact images directly from the camera
Timer shooting functions
Create great time-lapse movies with a built-in, pre-programmable interval timer. For extreme long-exposure photography, the shutter can be locked up in bulb mode for a specified time.
Newly designed 50.6 Megapixel full-frame CMOS helps deliver ultra-high resolution images for large-scale printing and extensive, creative cropping, while Dual DIGIC 6 Image Processors enable spectacular image quality and processing speed.
EOS Scene Detection System features a 150,000-pixel RGB+IR Metering Sensor for excellent precision.
61-Point High Density Reticular AF including up to 41 cross-type AF points and EOS iTR allows for high precision autofocus.
Advanced mirror control mechanism and new user-selectable shutter release time lag helps suppress camera vibration for reducing image shake.
Anti-flicker helps compensate for flickering light sources and provides consistent exposure and color during continuous shooting.
Built-in intervalometer and bulb timer helps deliver expanded creativity.
1.3x and 1.6x crop shooting adds superb flexibility, while still delivering high resolution images required for demanding applications.
Intelligent Viewfinder II with approximately 100% viewfinder coverage.
Full HD 30p movie capability and Time Lapse Movie function, which takes still photographs at set intervals and combines them into a Full HD movie file.
High-speed continuous shooting up to 5.0 fps allows you to capture fast action.
3.2-inch ClearView II LCD monitor, 170° viewing angle, 1,040,000-dot VGA, reflection resistance with multi coating and high-transparency materials for bright and clear viewing.
Customizable Quick Control Screen allows you to quickly change frequently used camera settings and functions.
Support for USB 3.0.
Type
Digital, AF/AE single-lens reflex, camera
Recording Media
CF card
* Type I drive (Incompatible with Type II and Microdrive.)
* High-speed writing possible with UDMA CF cards.
SD, SDHC, and SDXC memory cards
* High-speed writing possible with UHS-I SD cards.
* MultiMediaCard (MMC) cannot be used. (A card error will be displayed.)
Image Format
Approx. 36 mm x 24mm (35mm Full-frame)
Compatible Lenses
Canon EF Lenses (excluding EF-S Lenses)
Lens Mount
Canon EF mount
Back to TopImage Sensor
Type
High-sensitivity, high-resolution, large single-plate CMOS sensor
Pixels
Effective pixels: Approx. 50.60 megapixels
Total pixels: 53.00 megapixels
Pixel Unit
4.14µm square
Total Pixels
Total Pixels: 53.00 megapixels
Aspect Ratio
3:2 (Horizontal: Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Fixed position in front of the image sensor
Dust Deletion Feature
Self Cleaning Sensor Unit
* Removes dust adhering to the low-pass filter.
* At power ON: Performed for approx. 3 sec. (Operation indicated for 2 sec.)
At power Off: Performed for approx. 2 sec.
Manual operation: Performed for approx. 8.5 sec.
* Magnesium fluoride coating on the low-pass filter surface applied.
Dust Delete Data acquisition and appending
* The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
* The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
Manual cleaning
Back to TopRecording System
Recording Format
Design Rule for Camera File System 2.0 and EXIF 2.3
Image Format
Still Image: JPEG, RAW (14-bit Canon Original), RAW, M-RAW, S-RAW, RAW+JPEG, M-RAW+JPEG, S-RAW+JPEG
Video: MOV (Image data: H.264/MPEG-4 AVC; Audio: Linear PCM)
File Size
Full Size
Large: Approx. 50.3 Megapixels (8688 x 5792)
Medium 1: Approx. 39.3 Megapixels (7680 x 5120)
Medium 2: Approx. 22.1 Megapixels (5760 x 3840)
S1 (Small 1): Approx. 12.40 Megapixels (4320 x 2880)
S2 (Small 2): Approx. 2.50 Megapixels (1920 x 1280)
S3 (Small 3): Approx. 350,000 Pixels (720 x 480)
RAW: Approx. 50.3 Megapixels (8688 x 5792)
M-RAW: Approx. 28.50 Megapixels (6480 x 4320)
S-RAW: Approx. 12.40 Megapixels (4320 x 2880)
Crop - 1.3x
Large: Approx. 30.5 Megapixels (6768 x 4512)
Medium 1: Approx. 24.1 Megapixels (6016 x 4000)
Medium 2: Approx. 13.6 Megapixels (4512 x 3008)
S1 (Small 1): Approx. 7.6 Megapixels (3376 x 2256)
S2 (Small 2): Approx. 2.5 Megapixels (1920 x 1280)
S3 (Small 3): Approx. 0.35 Megapixels (720 x 480)
Crop - 1.6x
Large: Approx. 19.6 Megapixels (5424 x 3616)
Medium 1: Approx. 15.4 Megapixels (4800 x 3200)
Medium 2: Approx. 8.7 Megapixels (3616 x 2408)
S1 (Small 1): Approx. 4.9 Megapixels (2704 x 1808)
S2 (Small 2): Approx. 2.50 Megapixels (1920 x 1280)
S3 (Small 3): Approx. 0.35 Megapixels (720 x 480)
Aspect Ratio - 1:1
Large: Approx. 33.5 Megapixels (5792 x 5792)
Medium 1: Approx. 26.2 Megapixels (5120 x 5120)
Medium 2: Approx. 14.7 Megapixels (3840 x 3840)
S1 (Small 1): Approx. 8.3 Megapixels (2880 x 2880)
S2 (Small 2): Approx. 1.6 Megapixels (1280 x 1280)
S3 (Small 3): Approx. 0.23 Megapixels (480 x 480)
Aspect Ratio: 4:3
Large: Approx. 44.7 Megapixels (7712 x 5792)
Medium 1: Approx. 34.9 Megapixels (6816 x 5120)
Medium 2: Approx. 19.7 Megapixels (5120 x 3480)
S1 (Small 1): Approx. 11.1 Megapixels (3840 x 2880)
S2 (Small 2): Approx. 2.2 Megapixels (1712 x 1280)
S3 (Small 3): Approx. 0.31 Megapixels (640 x 480)
Aspect Ratio: 16:9
Large: Approx. 42.5 Megapixels (8688 x 4888)
Medium 1: Approx. 33.2 Megapixels (7680 x 4320)
Medium 2: Approx. 18.7 Megapixels (5760 x 3240)
S1 (Small 1): Approx. 10.5 Megapixels (4320 x 2432)
S2 (Small 2): Approx. 2.1 Megapixels (1920 x 1080)
S3 (Small 3): Approx. 0.28 Megapixels (720 x 408)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.
Recording Functions
Standard
* Records to either the CF card or SD card.
Auto switch card
* When the current card becomes full, the camera switches to the other card automatically.
Record separately
* The CF card and SD card record the same image at a different image recording quality (L, M, S1, S2, S3, RAW, M-RAW, S-RAW)
Record to multiple
* Both the CF card and SD card record the same image at the same image recording quality. (Also applies to RAW+JPEG, M+JPEG, and SRAW+JPEG)
Backup Recording
Images recorded in a card can be copied to the other card
File Numbering
The following three types of file numbers can be set:
(1) Continuous numbering
* The continuous numbering of captured images will continue even after you replace the camera's card. (The numbering continues even when the folder changes.)
(2) Auto reset
* When you replace the camera's card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card.
(3) Manual reset
* Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
The image-recording quality can be selected in any combination of the three RAW and eight JPEG recording quality settings.
Color Space
Selectable between sRGB and Adobe RGB
Picture Style
Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3
* Scene Intelligent Auto will set [Auto] automatically.
* [Standard] is the default setting for [User Def. 1-3]
Back to TopWhite Balance
Settings
Auto (AWB): Ambience priority
Auto (AWB): White Priority
Daylight
Shade
Cloudy, Twilight, Sunset
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)
Color temperature
* With an EX-series Speedlite having the color temperature information transmission feature, the color temperature setting changes to match the color temperature when the flash is fired. Set to approx. 6000K if the flash unit does not have the color temperature communication feature.
Auto White Balance
Auto white balance with the image sensor
Color Temperature Compensation
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
*Corrected in reference to the current WB mode's color temperature.
Color Temperature Information Transmission
Provided
Back to TopViewfinder
Type
Eye-level pentaprism
Coverage
Approx. 100% vertically and horizontally (At approx. 21mm eyepoint)
Magnification
Approx. 0.71x / Angle of view 34.1° (with 50mm lens at infinity, -1 m-1 (dpt))
Eye Point
Approx. 21mm (At -1m-1 from the eyepiece lens center)
Dioptric Adjustment Correction
-3.0 to +1.0m-1 (diopter)
Focusing Screen
Fixed
Mirror
Quick-return half mirror (transmission: reflectance ratio of 40:60)
Highlight tone priority (D+), maximum burst (2-digit display), card information
Battery check
Composition information
Grid, electronic level
Warning symbol
Displayed if any of the following is set: Monochrome, white balance correction, One-touch recording quality switch, expanded ISO speed, or spot metering.
JPEG/RAW
Flicker detection
Depth Of Field Preview
Enabled with Depth-of-field preview button
