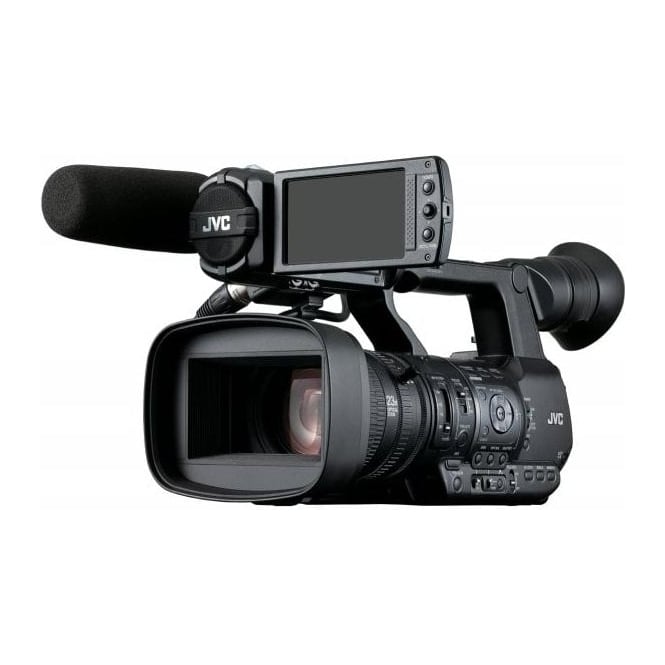

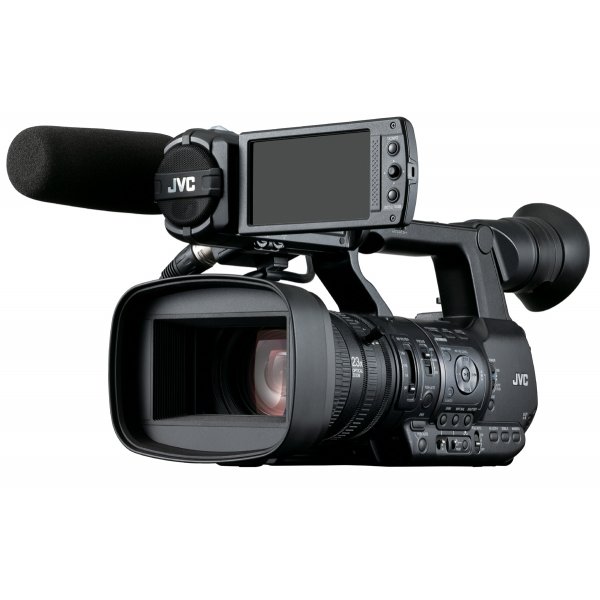

JVC GY-HM650 ProHD ENG Camcorder

disc

JVC GY-HM650 (GYHM650) ProHD ENG Camcorder

Shoot & deliver footage faster than ever



Industry's most interoperable camcorder

Records MXF, XDCAM EX, MOV and AVCHD files

Records 2 files simultaneously

23x Fujinon autofocus zoom lens

HD/SD ENG camcorder with Wi-Fi and FTP connectivity and ability to record in HD and smaller res files simultaneously for fast delivery



JVC's GY-HM650 is the perfect camcorder for next generation newsgathering. With dual codec recording, clips can be transferred to the station immediately with built in FTP. Light, versatile and extremely easy to use, this camera offers superb low light performance, a long (23x) wide angle zoom lens, and MXF file interoperability from acquisition to air.



Key Features -



1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)

F12 Sensitivity

23x Fujinon Auto focus zoom lens with manual functions

F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion: 29 to 667mm)

Optical image stabilizer

SDXC/SDHC memory card recording (2 slots for dual-backup, continuous recording)

Dual Codec: Recording simultaneously HD and 1/4 HD (for web delivery)

Multiple encoding formats: HD MPEG2 (35/25/19Mbps) / AVCHD 1920x1080 60i / SD H.264

Wide media format compatibility:

.MXF with rich Metadata / .MOV (Final Cut Pro) / .MP4 (XDCAM EX™) / AVCHD

Mobile Newsgathering is now faster and better then ever with the introduction of JVC's GY-HM650. Small and light enough to be used anywhere, this advanced camera surpasses the performance of many traditional ENG style units

and offers capabilities never before available on any model. Dual codecs make it possible to record for 2 screens simultaneously: full HD on one memory card and a smaller web-friendly file on another card. Transfer the footage back

to the station with the GY-HM650's built-in FTP and WiFi connectivity.



Generic Spec: GY-HM650



Specifications - General - Power: DC 12V (AC adaptor), DC 7.2V (Battery)



Power Consumption: Approx. 12W (with VF and LCD monitor)



Dimensions: 178(W) x 198(H) x 416(D)mm (7" x 7-13/16" x 16-3/8")



Weight: Approx. 2.45kg(5.4lbs):GY-HM650 (Including battery)



Operating temperature: 0 to 40 (32 to 104)



Storage temperature: -20 to 50 (14 to 122)



Operating humidity: 35% to 80%



Storage humidity: Under 85%



Camera - Image Sensor: 1/3" 2.2M pixels progressive scan 3CMOS



Synchronizing system: Internal synchronization



Stabilizer: Optical image stabilizer



Lens: Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)



Filter diameter: 72mm



Shutter speed: 1/4 to 1/10000



Gain: -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALCND



filter: 1/4, 1/16, 1/64LCD



display: 3.5” 920K pixels, 16:9



Viewfinder: 0.45” 1.22M pixels, 16:9



Video/Audio Recording - Recording media: 2x SDHC/SDXC memory card Class 6/10



Video recording: Video codec: MPEG2 Long GOP(HD), AVCHD, H.264(SD)



Recording mode: File format: MOV(HD/SD:H.264), MP4(XDCAM EX),MTS(AVCHD), MXFMPEG-2 Long



GOPNTSC setting: HQ



mode:1920 x 1080/59.94i, 29.97p, 23.98p,1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98pSP



mode: 1440 x 1080/59.94



iPAL setting:



HQ mode:1920 x 1080/50i, 25p, 1440 x 1080/50



iSP mode: 1440 x 1080/50



iAVCHDNTSC setting:



HQ mode:1920 x 1080/59.94i,



SP mode:1920 x1080/59.94



iPAL setting:



HQ mode:1920 x 1080/50i,



SP mode:1920 x1080/50



iSD (H.264)NTSC setting: 720 x 480/59.94i(HM650U only)



PAL setting: 720 x 576/50i(HM650E only)



Proxy(H.264)



NTSC setting: LP/LV



mode:480 x 270/29.97p, 23.98p



PAL setting: LP/LV mode:480 x 270/25p



Audio recording: LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3(AVCHD)



Interface -



Video output: AV output (f3.5mm mini jack x1)



SDI output (BNC x1)HDMI output x1



Audio input: XLR x2 (MIC,+48V/LINE), f3.5mm mini jack x1



Audio output: AV output (f3.5mm mini jack x1)



Headphone: f3.5mm mini jack x1



Time code link input/output: RCA x1



Remote: f2.5mm mini jack x1



Provided Accessories -



Battery pack x1,



AC adapter x1,



AV cable x1



Specifications are tentative and subject to change without notice.



IN THE BOX



Battery pack x1

AC adapter x1

AV cable x1
