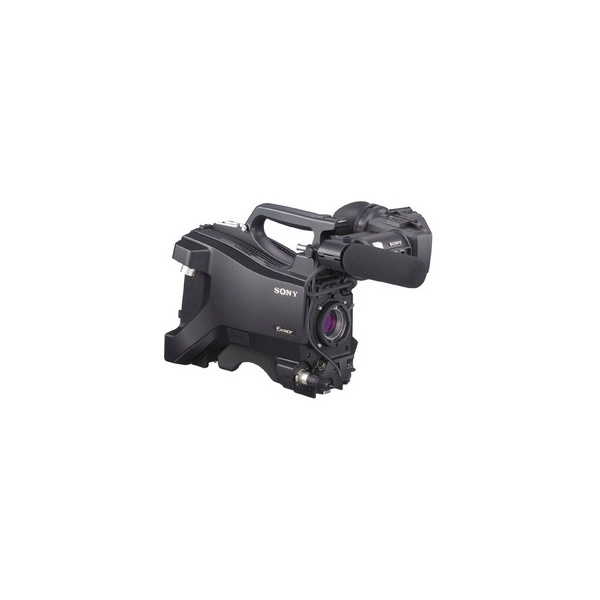

SONY Hxc-D70L (HxcD70L Hxc D70L Hxc/D70L) Multi Transmission Camera System

The HXC-D70 is an HD color video camera equipped with three-chip 2/3-type CMOS image sensors yielding approximately 2.07 million effective pixels for full HD resolution (1920 × 1080). This advanced image sensor technology coupled with the latest digital processing circuitry enables the capture of very high-quality HD images, with a sensitivity of F12 (59.94i) / F13(50i) and an SN ratio of 56 dB (w/o Noise Suppression (NS)mode). Multi-core transmission technology comes standard with the HXC-D70 camera system. But now there are two different signal transmission options for system flexibility – optical fiber and digital triax transmission technologies. For the optical fiber transmission option, the HXC-D70 camera head is mechanically docked with the CA-FB70 camera adaptor that allows the camera to transmit the signals via optical fiber cable to the HXCU-FB70 camera control unit. For the digital triax transmission option, the HXC-D70 camera head is mechanically docked with the CA-TX70 camera adaptor that allows the camera to transmit the signals to the HXCU-100 camera control unit via triax cable. Note: HXCD70L Package: HXC-D70 camera head,CBK-VF-01(3.5" LCD color VF / Monaural Microphone)

Features:

  • The HXC-D70 camera system offers flexibility and provides an ideal solution for migration from SD to HD (Inherited basic user interface from DXC SERIES camera system)
  • Offering Excellent Picture Quality through the use of Sony's advanced technologies for 2/3" Exmor C-MOS sensor and a high performance digital signal processing including wide-band down converter both in camera and CCU
  • Variety of picture adjustment functions including, Skin-tone detail, Selection of Multiple Gamma+Hyper-gamma, Knee-Saturation, Adaptive Matrix, Color Saturation, Low Key saturation, Lens aberration compensation, 2x digital video extender. Auto Focus (Fujinon 16x lens), Focus assist functions
  • Selectable SD/HD format
  • Compact and light weight
  • Ergonomic Design



SPECIFICATION:

  • Camera Specifications

Built-In Optical Filters ND filters:1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Dynamic Range 600%
Effective Picture Elements 1920x1080
Gain Selection -3,0,+3,+6,+9,+12db
Horizontal Resolution 1,000 TV lines or more (in 1920 x 1080i mode)
920 TV lines (in SD mode)
Lens Mount Standard 2/3" B4 Bayonett mount
Modulation Depth NA
Optical System F1.4 Prism system
Pickup Device 3-chip 2/3-inch type Exmor Full-HD CMOS
S/N Ratio HD 59db, SD 65db (Y=Typical)
Sensitivity F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode) (at 2000 lx, 3200 K, 89.9% reflectance)
Servo Filter Control NA
Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000



  • General Specifications

Application Studio/Field operation
Dimensions (W x H x D) 144 (5 3/4)W,314 (12 3/8)D,223 (8 7/8)H, in mm and inches
Format 1920 × 1080/59.94i, 50i 1280 × 720/59.94P, 50P
Imager 2/3-inch type Exmor Full-HD CMOS
Mass Main body only: 3.4 kg (7 lb 7.9 oz)
Operating Temperature –10 ºC to +45 ºC (14 ºF to 113 ºF)
Power Consumption Approx. 1.92 A/12v
Main unit (camera) + LCD viewfinder + auto
focus lens + microphone
Power Requirements 12 V DC (10.5 V to 17.0 V)
Storage Temperature –20ºC to +60ºC (–4ºF to 140ºF)
Weight Main body only: 3.4 kg (7 lb 7.9 oz)



  • Input Connectors Specifications

Audio Input XLR 3-pin (x2, at front panel and rear panel)
DC IN XLR 4-pin (x1)
Genlock/Return IN BNC (x1), 1 Vp-p, 75 Ω
Microphone Input XLR 3-pin (x2, at front panel and rear panel)
Return Control Return switch and assignable switches



  • Input/Output Connectors Specifications

CCU 26 MULTI PIN CONNECTER(CCZA/CCZAD cable connecter)
Intercom XLR 5-pin, female (x1)
Lens 12-Pin(x1)
Prompter BNC (x1), 1 Vp-p, 75 Ω
Remote 8-pin (x1)
Viewfinder Digital interface (x1) and DXF type analog interface (x1)



  • Inputs and Outputs Specifications

Audio In XLR 3-pin (x2, at front panel and rear panel)
Audio Out NA
Camera Adaptor NA
DC In XLR 4-pin (x1)
DC Out 4-pin (x1)
Earphone Mini-jack 3-pin (x1)
Ethernet NA
Genlock In BNC (x1), 1 Vp-p, 75 Ω
HD-SDI Out (Dual Link) BNC (x1)
Lens 12-Pin(x1)
MIC In XLR 3-pin (x2, at front panel and rear panel)
Memory Stick Memory Stick DUO
Remote 8-pin (x1)
SDI In BNC (x1)
Test Out BNC (x1)
USB NA
Video Out Test out/SDI OUT
i.LINK NA



  • Output Connectors Specifications

DC OUT 4-pin (x1)
HD SDI Out BNC (x1)
Headphone Output XLR 5-pin, female (x1)
Test OUT BNC (x1)
