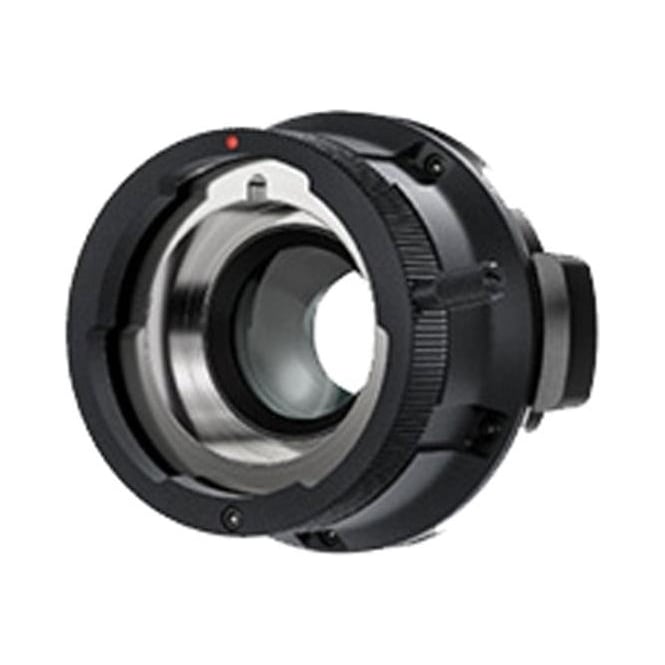

Blackmagic BMD-CINEURSAMUPROTB4HD B4 Mount for URSA Mini Pro

Blackmagic BMD-CINEURSAMUPROTB4HD ( CINEURSAMUPROTB4HD, BMDCINEURSAMUPROTB4HD, BMD CINEURSAMUPROTB4HD, BMD/CINEURSAMUPROTB4HD ) B4 Mount for URSA Mini Pro.

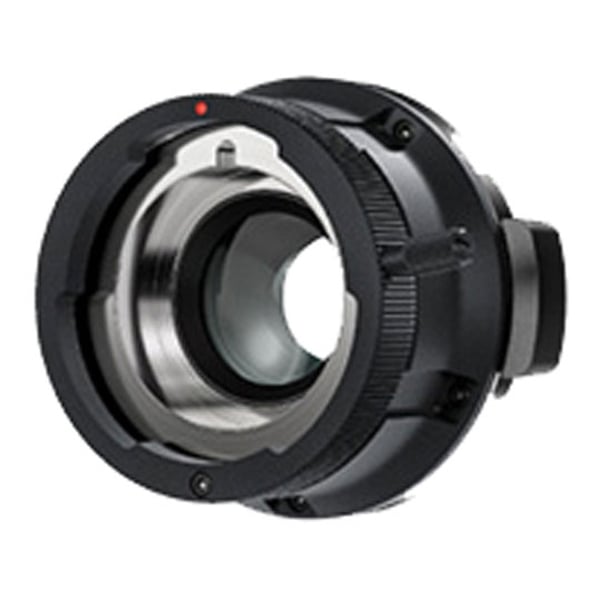

The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.

The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.

• The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera.

Features:

Turn your URSA Mini Pro into an incredibly compact broadcast camera that you can use with your existing high definition B4 broadcast lenses! URSA Mini Pro features a standard 12-pin Hirose lens control connection that’s compatible with both B4 and PL lenses. You can remotely control record start/stop, iris and motorized zoom lenses!

• B4 Mount for URSA Mini Pro
• B4 lens mount with precision optics and spherical aberration correction specifically designed to match the camera’s sensor so you can use your existing B4 HD broadcast lenses
• Optics Resolution: 1920 x 1080
• Image Circle: 10.56mm x 5.94mm
• Magnification: 1.1x
• Lens Mount: B4 Bayonet style with locking ring
• B4 Spherical Aberration Correction: Yes

IN THE BOX

• Blackmagic URSA Mini Pro B4 Mount
• Moulded Mount Case
• Turret Dust Cap
• Lens Rear Protective Cover
• Shim Set
• Spare Mounting Screws
• Printed Instructions
