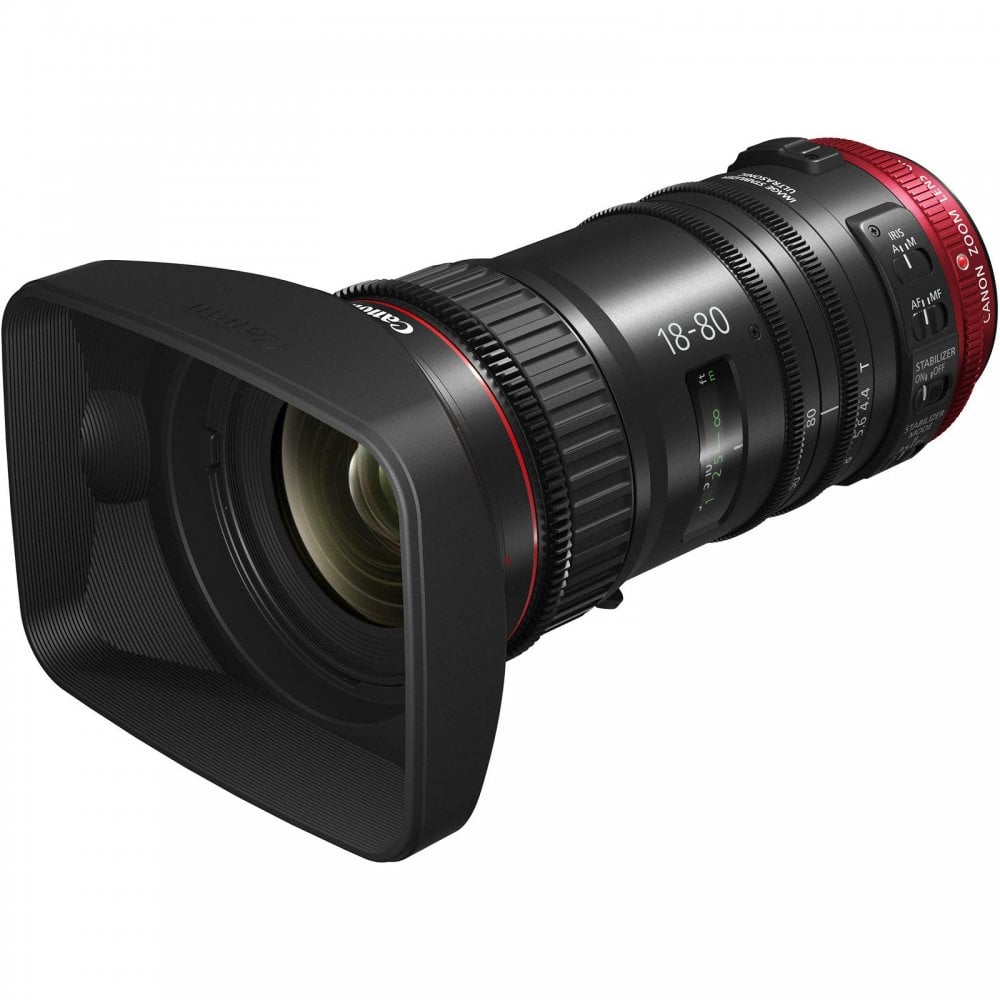

The Canon CN-E 18-80mm T4.4 Compact-Servo Lens combines the functionality of Canon's EF lenses with the features and performance of their CN-E lineup. Designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors, the lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.
Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.
*** Please see that this is a special order item.
Front Lens Diameter: 84 mm
Filter Thread : 77 mm
Dimensions :3.7 x 4.2 x 7.2" (9.34 x 10.72 x 18.23 cm)
Weight: 2.65 lb (1.2 kg)
Mount Type :EF
Focal Length :18 to 80 mm
Zoom Ratio : 4.4x
Image Circle : 31.4 mm
Coverage: Super 35 / APS-C
Maximum Relative Aperture : T4.4 (f/4)
Number of Aperture Blades: 9
Minimum Object Distance: 1.7' (0.5 m)
Angle of View : 24.6 x 13.8mm Imaging Area (1.78:1 Aspect Ratio):68.7° x 41.9° at 18mm
17.5° x 9.9° at 80mm
Lens Design
Covers Super 35 / APS-C formats
18 to 80mm focal range (4.4x zoom ratio)
Constant T4.4 (f/4) aperture
Parfocal design to maintain focus during zoom
Minimized focus breathing
Cine-standard 0.8 MOD focus gear ring
0.5 MOD iris and zoom gear rings
Focus ring rotates 180°
Matching color characteristics to existing CN-E lenses
9-blade iris
Iris closing
Compact and lightweight design
Servo Control
Servo Control Capability for all zoom, focus and iris
Power provided via camera mount (from compatible cameras)
Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications
Functionality with Cinema EOS Cameras
Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
Image Stabilization
Remote control of zoom, focus and iris via camera
REC start/stop from ZSG-C10 Grip
Peripheral illumination correction
Chromatic aberration correction
Lens metadata record
T-stop/F-stop number display select
Covers Super 35 & APS-C Formats
EF Mount
T4.4 Constant Maximum Aperture
9-Blade Iris
Parfocal with Minimized Focus Breathing
Compatible with Servo Lens Controllers
Optional Control Grip
Image Stabilization & Auto Focus Support
180° Rotation for Focus
Lightweight at only 2.65 lb
