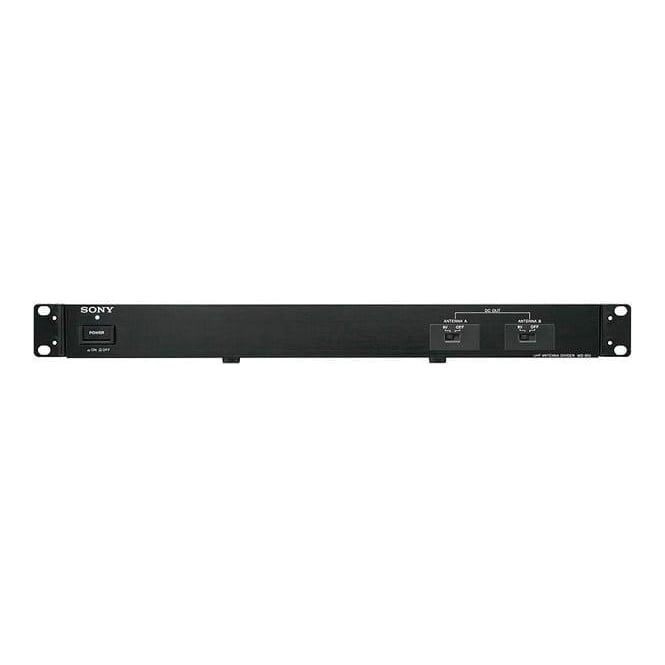

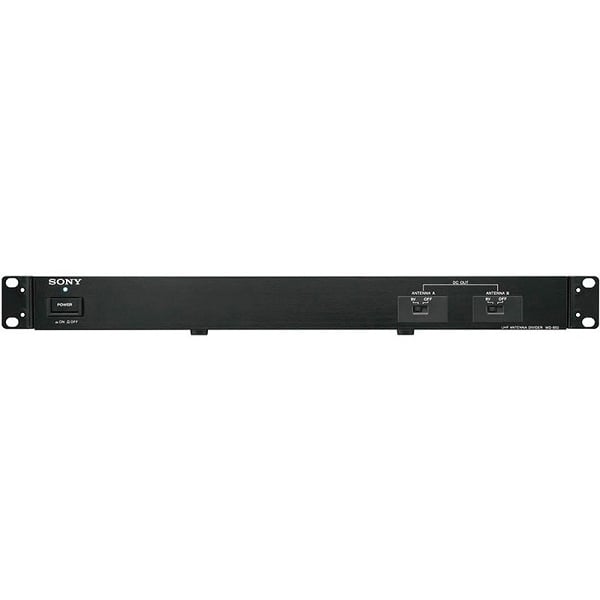

Sony WD-850A UHF Antenna Divider

Sony WD-850A (WD/850A, WD_850A, WD850A, WD 850A, wd-850a) UHF Antenna Divider

The WD-850A antenna distribution unit can provide diversity output, covering 470-862MHz, for up to four fixed Sony wireless receivers using the two pairs of inputs and four pairs of output connections. A secondary unit can be lined via a single pair of cascade outputs. RF muting, otherwise known as squelch, can be switched between 5/10/15dB/off positions.

Wide frequency coverage with choice of channels available

• The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.
• UC14: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
• UC30: 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz (UHF-TV channels 30 - 36 and 38 - 41) (not available in Brazil)
• UC42: 638.125 MHz to 697.875 MHz (UHF-TV channels 42 - 51)

• Frequency range: 470MHz - 862MHz
• Channel distribution: Inputs: 2 pairs Outputs: 4 pairs
• Input/output impedance: 50
• Cascade output: 1 pair
• Power supply for antenna booster (supplied from antenna input connectors): DC 9 V/OFF switchable
• Power consumption: 16 W
• Dimensions (W x H x D): 482 x 44 x 300 mm (19 x 1 3/4 x 11 7/8 inches)
• Mass: Approx. 4.6 kg (10 lb 2 oz)
• RF muting (squelch) level: 5 dB, 10 dB, 15 dB or OFF
• Audio output level: -58 dBm at reference deviation
• Audio output connector: SMC9-4S (Sony 4-pin) (2), balanced

In the box

• Sony UHF Antenna Divider
