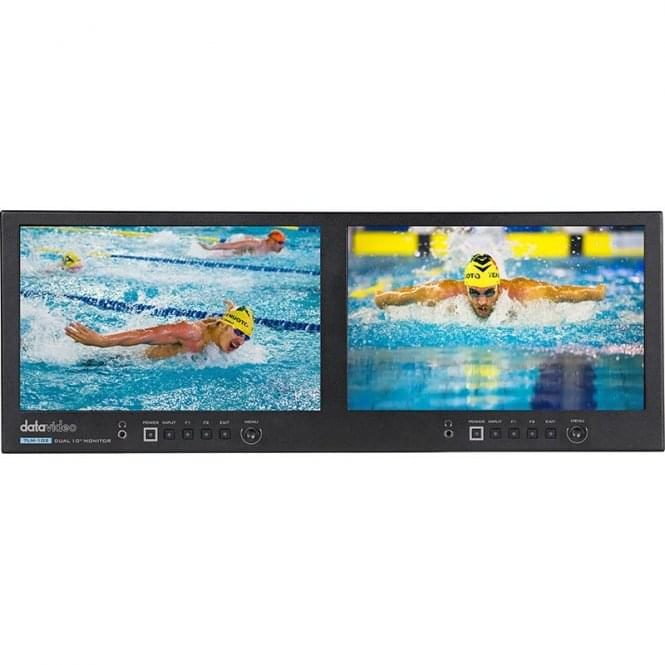

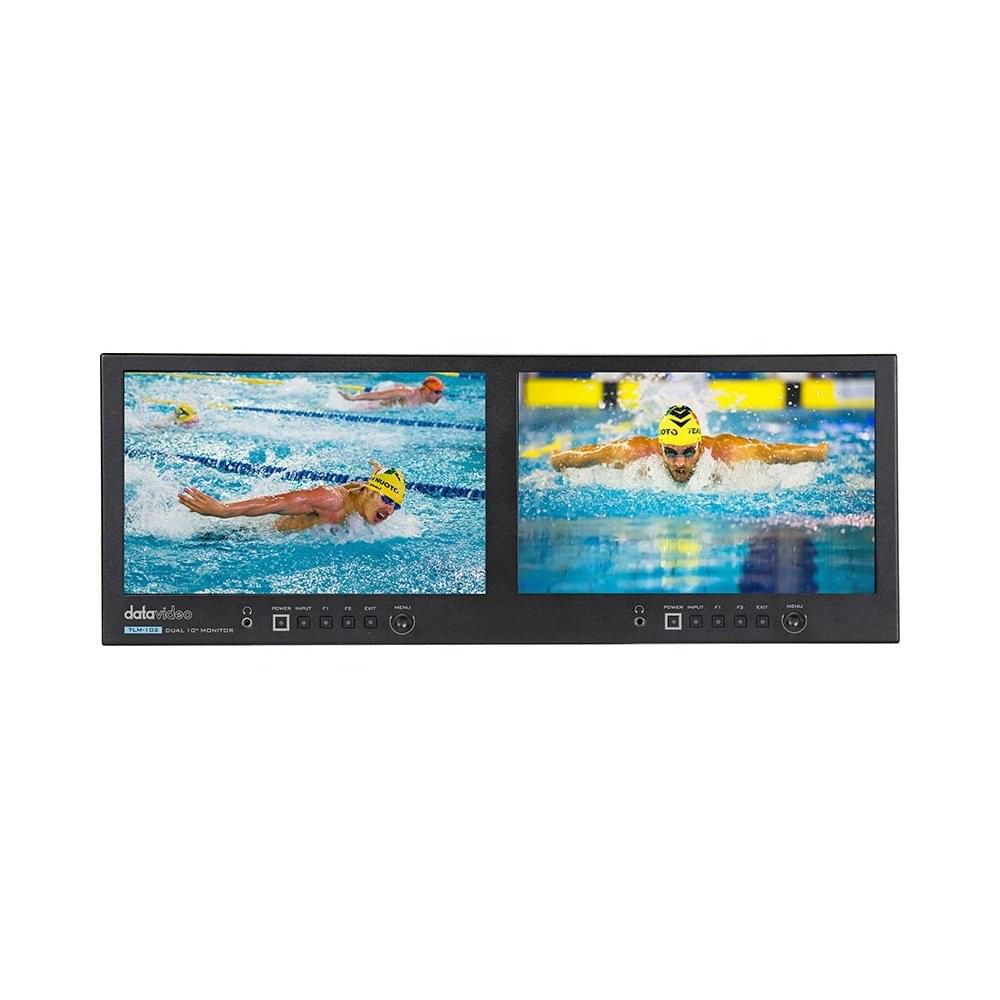

Datavideo DATA-TLM102 Dual 10" Monitor

code: DATA-TLM102

£844.00
Secure yours with a deposit of
RRP: £995.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

1280*800 IPS Panel resolution

Dual monitor, 4RU rack mount

Support 3G-SDI video input with loop-through output

Support HDMI input with loop-through output

Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, etc

SDI, HDMI cross conversion

Individual adjustments of Brightness, Contrast, Color Saturation and LED Backlight Level for each monitor

Color temperature for user to select

Front panel headphone jacks

User-definable function buttons F1, F2

Description
Specification
Included In Box
Reviews
(0)

Datavideo (DATA-TLM102 ,DATATLM102, DATA/TLM102, DATA TLM102)

The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.

1280 x 800 IPS panel resolution

Dual monitor

4 RU rackmount

Supports 3G-SDI and HDMI video input with loop-through output

Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field

SDI/HDMI cross conversion

Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor

Color temperature adjustment

Front panel headphone jacks

User-definable function buttons (F1, F2)

Screen Size 10" (25.4 cm)

Screen Type Dual LCD, IPS panel

Resolution 1280 x 800

Viewing Angle (H/V) 170°/170°

Brightness 300 cd/m2

Contrast Ratio 800:1

Rack Mount 4 RU

Video Inputs 1 x 3G/HD/SD-SDI

1 x HDMI

Video Outputs 1 x 3G/HD/SD-SDI, loop-through out

1 x HDMI, loop-through out

Audio In/Out Embedded audio on SDI and HDMI

Headphone jack

Supported Input Resolutions 1080p 23.98/24/25/29.97/30/50/59.94/60

1080i 50/59.94/60

720p 23.98/24/25/29.97/30/50/59.94/60

480i (NTSC)

576i (PAL)

Aspect Ratio 16:9, 4:3

Special Features Timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, SDI/HDMI cross conversion

Tally LED Indicator Live (red)

Cued (green)

Power Requirements 12 VDC, 26 W

Dimensions Not specified by the manufacturer

Weight Not specified by the manufacturer

Packaging Info

Package Weight 11 lb

Box Dimensions (LxWxH) 22.6 x 13.1 x 5.3"

In the Box

Datavideo 10" Dual IPS LCD Monitor

AD Switch with AC Cord (12 VDC)

Tally Converter

Mounting Hardware
