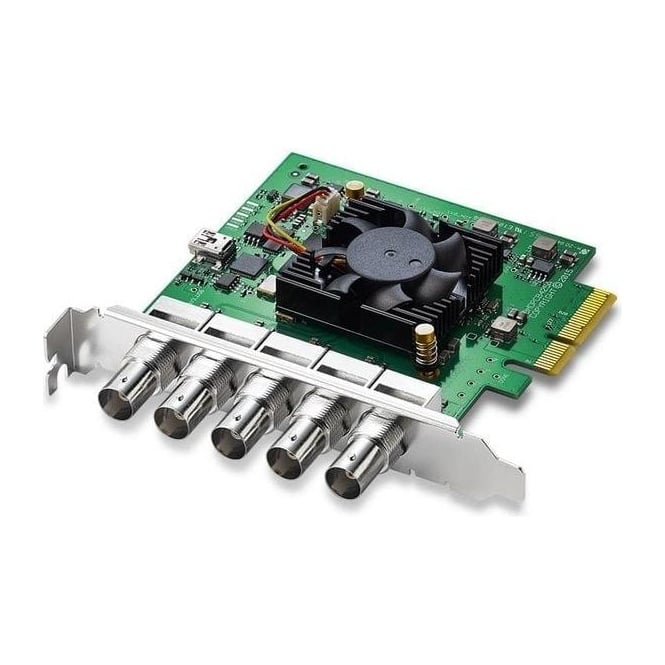

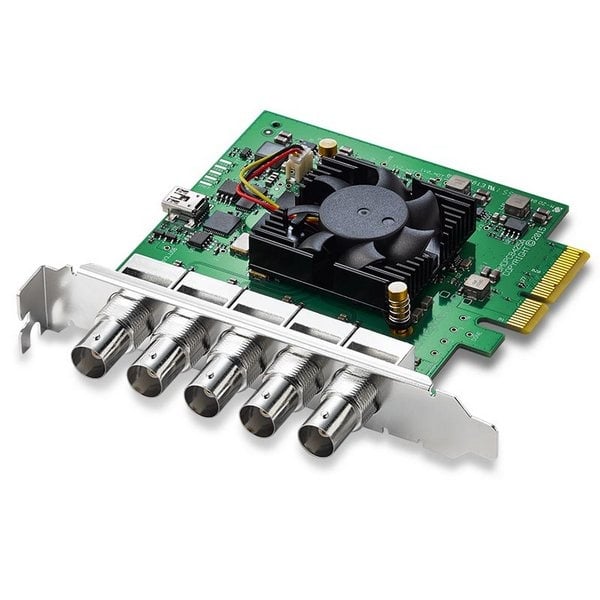

Blackmagic BMD-BDLKDUO2 Decklink Duo 2

code: BMD-BDLKDUO2
  • £395.00
  • RRP: £395.00
Status | Usually dispatched within 24 hours
Loading...

Features:

  • SD/HD/3G-SDI Input/Output
  • PCI-E Interface
  • 1080p 4:4:4 by Single-Link 3G-SDI
  • 10/12-Bit Processing
  • Down/Up/Cross Conversions
  • Mac OS X, Windows, and Linux Compatible

Blackmagic BMD-BDLKDUO2 (BMD BDLKDUO2, BMDBDLKDUO2, BMD/BDLKDUO2, bmd-bdlkduo2) Decklink Duo 2

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.

Processing

  • Colorspace Conversion: Hardware based real time
  • HD Down Conversion: Built-in, high quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
  • HD Up Conversion: Built-in, high quality software up conversion from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom
  • Cross Conversion: Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
  • Real Time Effects Support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects

Software Compatibility

  • The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:
  • Blackmagic Design: DaVinci Resolve, Fusion 8
  • Apple: Final Cut Pro X
  • Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
  • Avid: Media Composer, Pro Tools
  • Stienberg: Cubase, Nuendo
I/O:
  • 4 x Bi-directional SDI BNC
  • 1 x Sync BNC input
Interface:
  • PCI-E x4
Format Support:
  • 1080p23.98/24/25/29.97/30/50/59.94/60
  • 1080PsF23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94
  • NTSC
  • PAL
SDI Compliance:
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B
Sampling:
  • Video: 4:2:2, 4:4:4
  • Audio: 24-bit, 48 kHz
Color Precision:
  • 8, 10-bit YUV 4:2:2
  • 8, 10, 12-bit RGB 4:4:4
Color Space:
  • REC 601, REC 709
OS Compatibility:
  • Mac OS 10.9, 10.10, 10.11 or newer
  • Microsoft Windows 7, 8, 10
  • Linux
Certification:
  • FCC, CE, C-Tick
Environmental:
  • Operating temperature: 32 to 104°F / 5 to 40°C
  • Storage temperature: -4 to 113° F / -20 to 45°C
  • Relative humidity: 0 to 90% non-condensing
Form Factor:
  • Length: 3.7" / 94 mm
  • Form factor: Single slot
Weight:
  • 5.6 oz / 160 g

In the Box

  • Blackmagic Design DeckLink Duo 2
  • SD Card with Software and Manual
