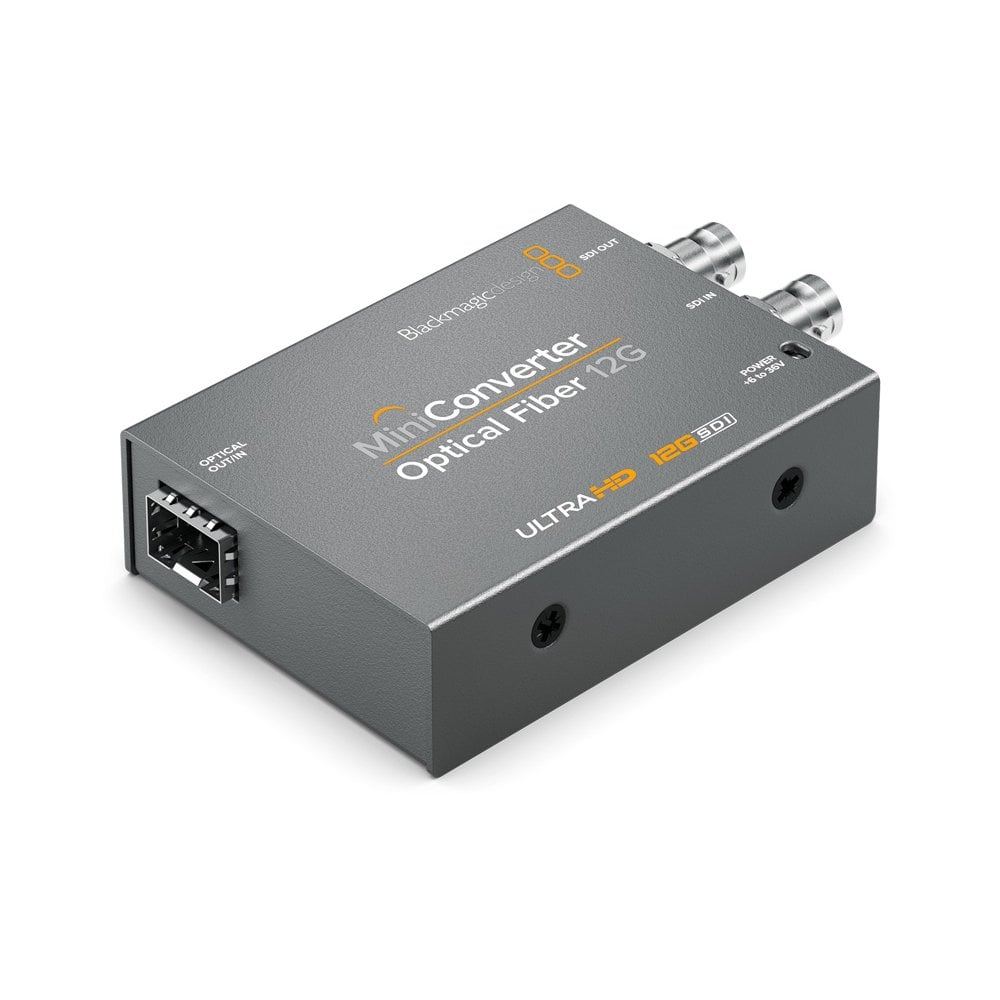

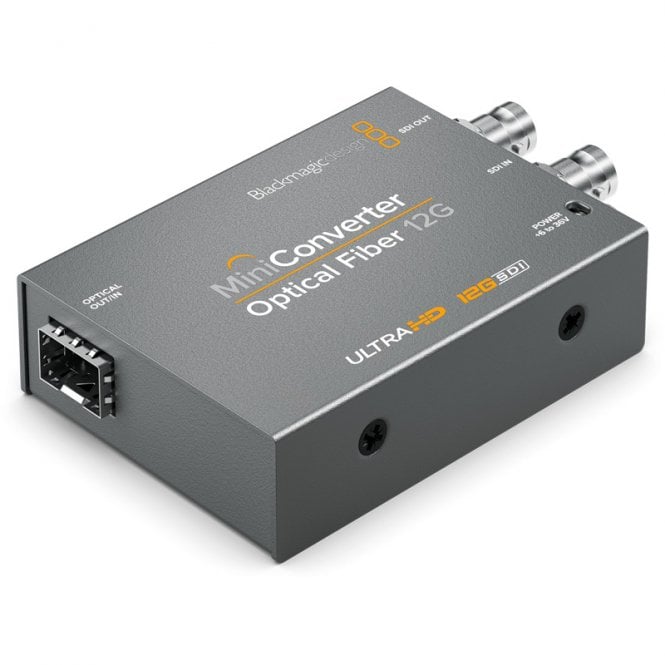

Blackmagic BMD-CONVMOF12G Converts SDI to optical fiber and optical fiber to SDI in both directions

Blackmagic BMD-CONVMOF12G (BMDCONVMOF12G, BMD/CONVMOF12G, BMD CONVMOF12G, bmd-convmof12g) Converts SDI to optical fiber and optical fiber to SDI in both directions.

Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction.

The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices.

You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.

Features:

• Converts SDI to optical fiber and optical fiber to SDI in both directions at the same time
• Can even have different video standards going in each direction
• 12G‑SDI connections are multi rate
• Compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices

SPECIFICATIONS

• SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input
• SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber
• Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G- SDI switchable
• Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input
• Optical Fiber Audio Inputs: 16 channel embedded
• Optical Fiber Audio Outputs: 16 channel embedded
• Multi Rate Support: Auto detection of SD, HD or 12G-SDI
• Reclocking: Yes

Please note: SFP is not included

IN THE BOX

• Mini Converter Optical Fiber 12G
• +12V universal power supply with international socket adapters
