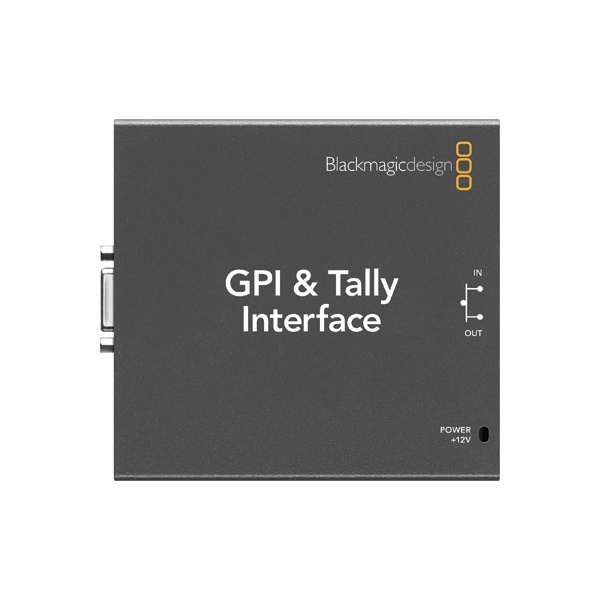

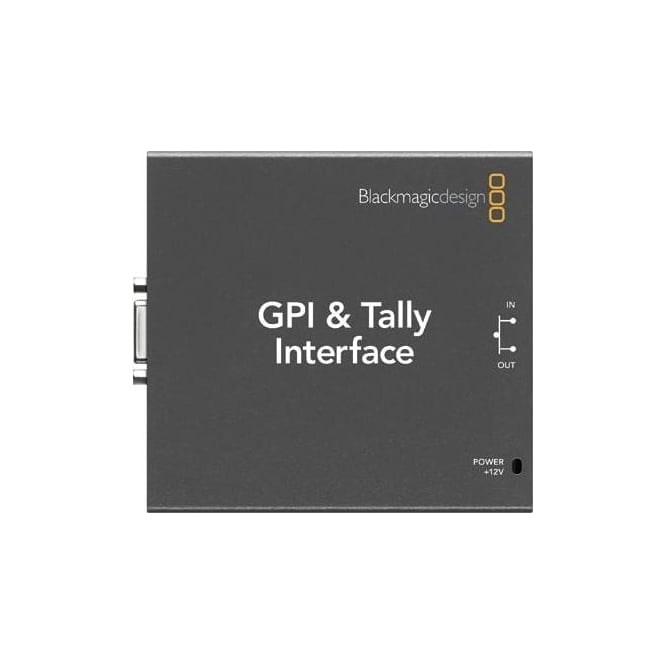

Blackmagic BMD-SWTALGPI8 GPI and Tally Interface Box

Blackmagic BMD-SWTALGPI8 ( SWTALGPI8, BMDSWTALGPI8, BMD SWTALGPI8, BMD/SWTALGPI8 GPI ) and Tally Interface Box.

GPI and Tally Interface connects to an ATEM switcher and provides 8 contact closure Tally outputs.

Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of tally outputs.

Features:

• 8 inputs / 8 outputs
• Indicates "on-air" status
• Contact Closure
• 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
• Inputs
• Optical isolators triggered by connection to ground. Max 5V at 14mA.
• Outputs
• Mechanical relay contact closure to ground. Max 30V at 1A.
• Ethernet
• 10/100 BaseT with loop through for connecting to other ethernet enabled equipment
• Computer Interface
• 1 x USB 2.0 high speed interface for configuration and firmware updates

IN THE BOX

• GPI and Tally Interface
• Software CD
• Power Supply
