Datavideo 4 Channel HDBaseT Converter

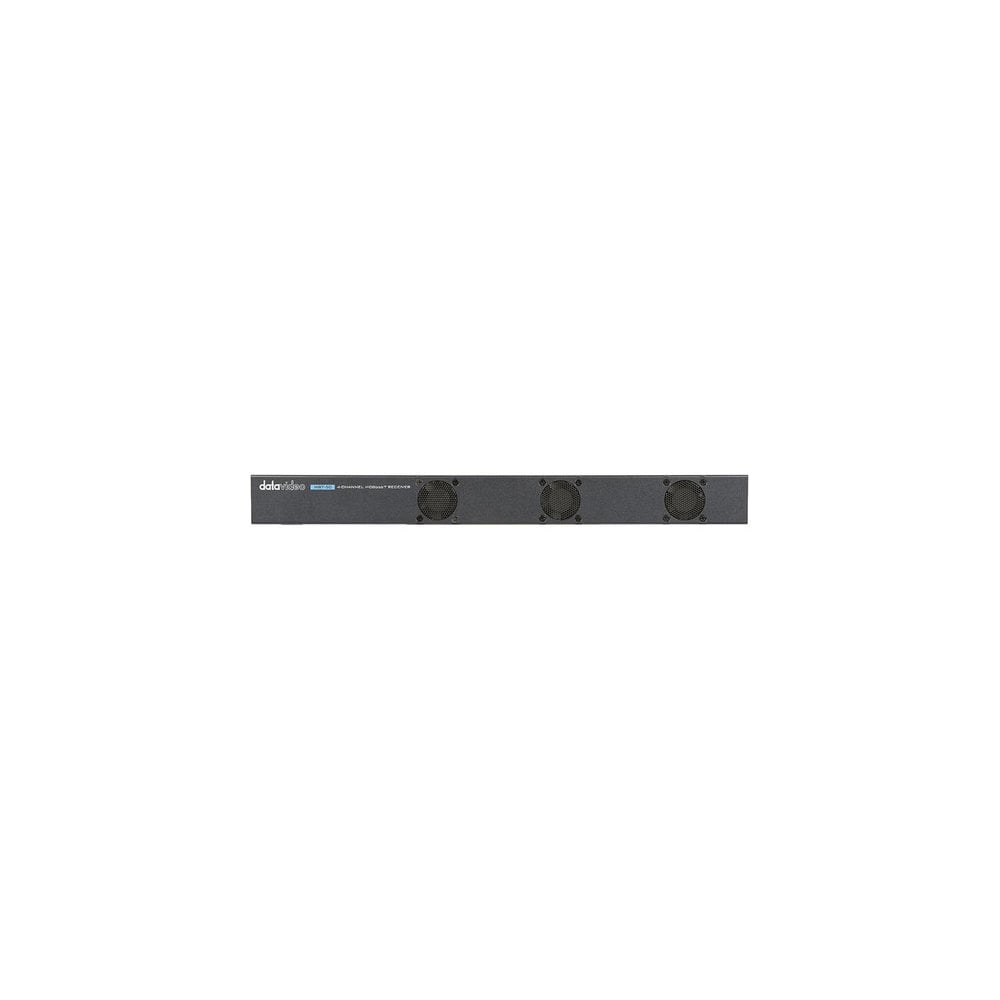

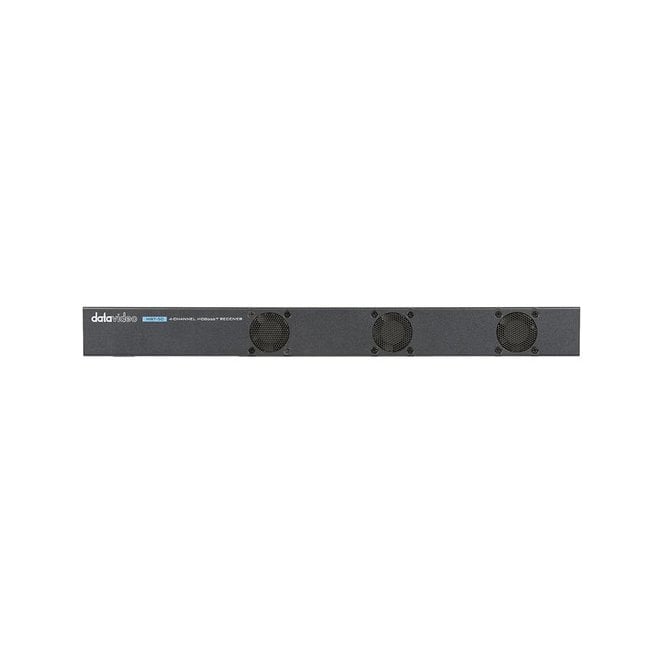

Datavideo 4 Channel HDBaseT Converter (DATA-HBT50)

This 4-Channel DataVideo Long-Range HDBaseT Receiver supplies power, 1080p video, and camera control to up to 4 devices up to 328' distance. It simultaneously outputs HDMI, 3G-SDI, RS-422, and IP control signals.

Seamlessly add HDBaseT to your Workflow

HBT-50 can power PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera, and can be used to remotely control various camera parameters such as iris, presets, etc. Most importantly, it can output HDMI and SDI signals to your switcher.

Integrate Camera Control, Switcher, and Recorder Operations

HBT-50 transmits HDMI and SDI signals as well as camera control. With the HBT-50, the system can be integrated as a camera controller, video switcher, and ISO recorder.

Remote Control

Remote control of camera functions via RS-422 or DVIP with up to 4 cameras simultaneously up to 328'.

HDBaseT

HDBaseT allows you to transmit video, control, tally, and power over a single Cat 6 cable. This means you no longer need to run multiple cables for your cameras.

Inputs 4 x RJ45 (HDBaseT)

Outputs 4 x HDMI (HDMI 2.0)

4 x BNC (3G-SDI)

Other I/O 4 x RJ45 RS-232, RS-422

1 x RJ45 HDBaseT

Standards

HDCP Support None

EDID Support None

Transmission

Max Transmission Distance 1080p at 60 Hz:

328.1' / 100 m

Video Format RJ45 Input

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps

1080i: 50/59.94/60 fps

Supported Cable Types Cat 6a

Power

Power Connector 1 x IEC C14 Input

PoE Support Yes

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

General

Dimensions 17.3 x 11.3 x 1.9" / 440 x 286 x 49 mm

Weight 9.3 lb / 4.2 kg

In the Box

Datavideo 4-Channel Long-Range HDBaseT Receiver with HDMI, 3G-SDI Outputs
