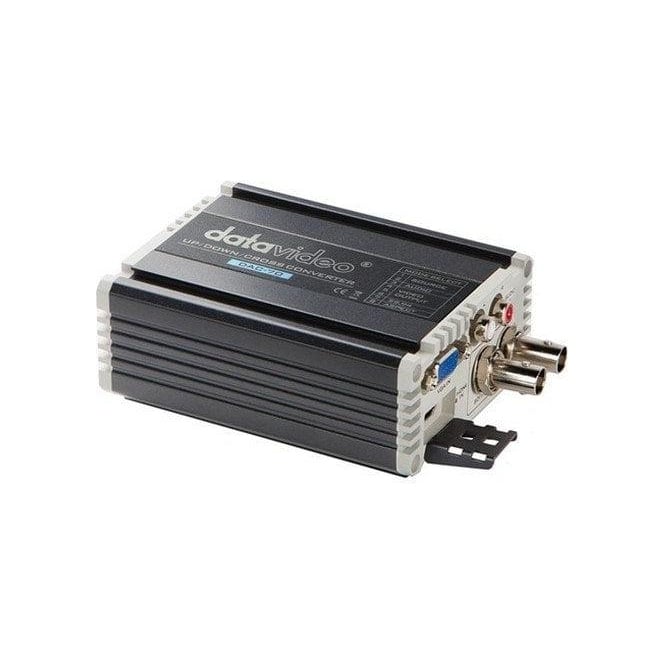

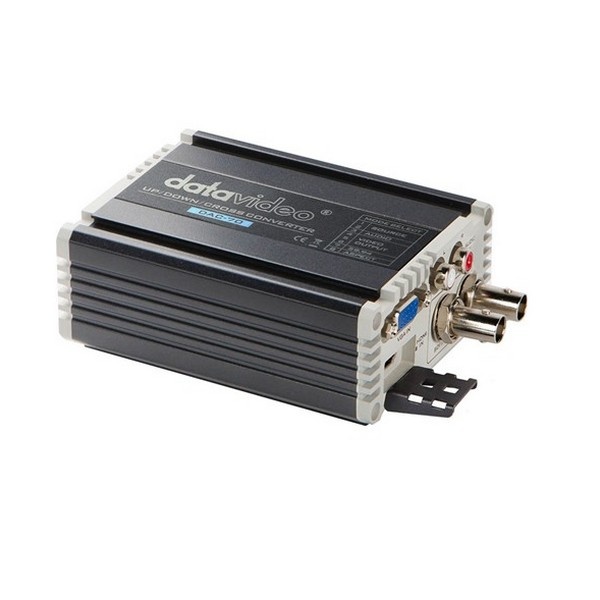

Datavideo DATA-DAC70 Up / Down / Cross Converter with VGA

code: DATA-DAC70
  • £367.00
  • RRP: £449.00
Item Available | Usually dispatched within 24 hours
Loading...

DATAVIDEO DATA-DAC70 (DATADAC70, DATA DAC 70) DAC-70 Up / Down / Cross Converter with VGA

 The one mini converter that should be in every kit bag. Whatever kit freelancers or clients ask you to use for a shoot, this device will get you out of jail: up, down and cross convert; ingest VGA signals into an SDI workflow; embed stereo audio into a video feed.

 Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI ouptuts.

 Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutons like lecture theater, church, auditorium room and conference hall.


Video Input formats

  • SD-SDI: 525i, 625i
  • 3G-SDI: 080p60/50, 1080p59.94
  • HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
  • HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600x1200@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 800x600@60Hz

Video Output formats

  • SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i

Supported Audio formats

  • SDI embedded Audio: Up to 8-CH, PCM 48KHz
  • HDMI embedded Audio: up to 8-CH, PCM 96KHz
  • Stereo audio input: 2-CH, PCM 48KHz



* USB interface for firmware upgrade

Features:

  • 3G/HD/SD Up/Down/Cross convert
  • Audio/HDMI/SDI/VGA input
  • 3G/HD/SD SDI and HDMI output
  • Can be rackmounted using optional RMK-2 2RU Rack solution
  • DC 12V, 3.6 watts
  • Heavy Duty Construction
