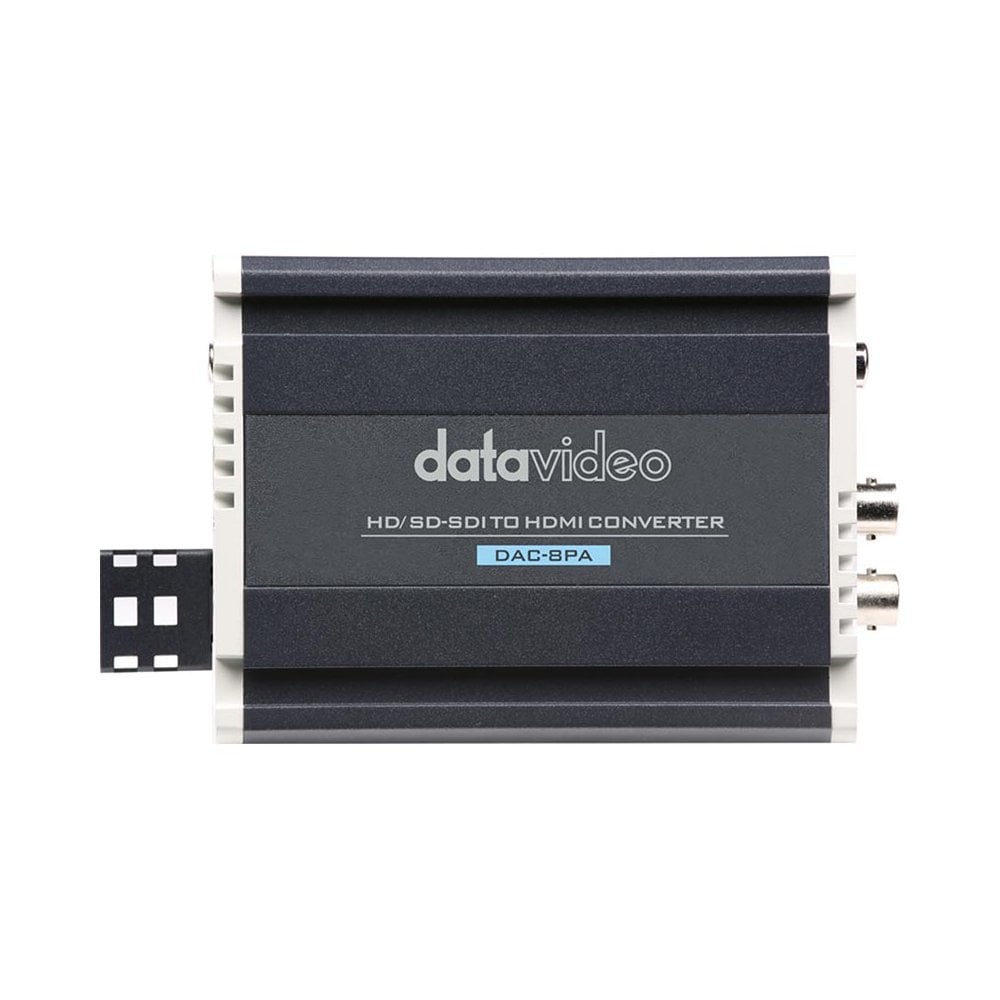

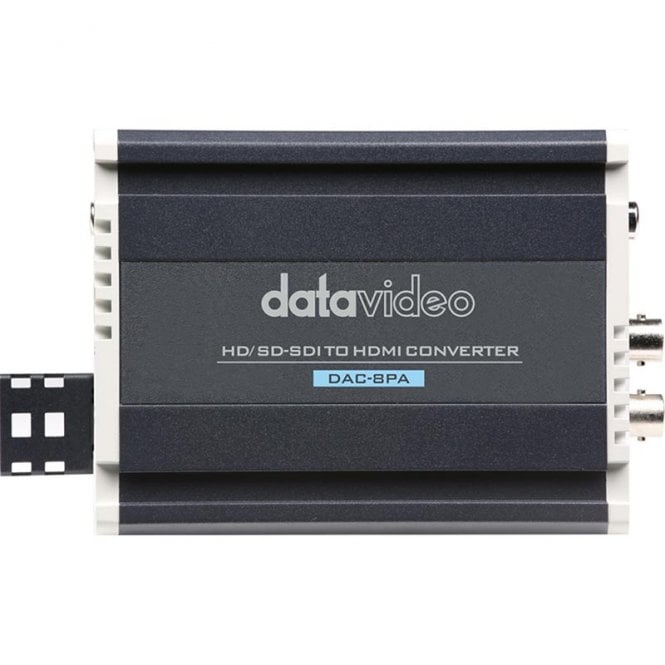

Datavideo DATA-DAC8PA SDI to HDMI Converter

Datavideo DATA-DAC8PA (DATA/DAC8PA, DATA_DAC8PA, DAC8PA, DAC-8PA, data-dac8pa) SDI to HDMI Converter

Convert SDI to HDMI with audio de-embedding options

The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.

Supports 1080p 50/60

Automatic input signal and color depth detection with support for Deep Color

Supports SDI Loop-Through Output

Simultaneous SDI loop-through with HDMI output

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

DAC-8PA SDI to HDMI Converter

• Conversion: 3G/ HD/SD-SDI to HDMI
• Video Inputs: 1x 3G/HD/SD-SDI
• Loop Through: 1
• Video Outputs: 1x HDMI, with embedded Audio
• Audio Inputs: 2x SDI Audio embedded

Audio Outputs

• 2x RCA (Stereo Pair)
• 2x HDMI Audio embedded

• Supported Video Input Formats
• 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
• 1080i (50/59.94/60Hz),
• 720p (50/59.94/60Hz),
• 625i 50 (PAL), 525i 59.94 (NTSC)

• Output Resolutions: Automatically matches the SD, HD and 3G SDI video input
• Equalizer: Yes
• Reclock: Yes
• SDI Cable Drive: Yes
• Dimension (LxWxH): 112 x 85 x 45 mm
• Weight: 0.4 kg
• Operating Temp. Range: 0~40 °C
• Power: DC 12V, 4W

In the Box

• 1 x DAC-8PA
• 1 x AD Switch DC 12V
• 1 x Thank You Card
