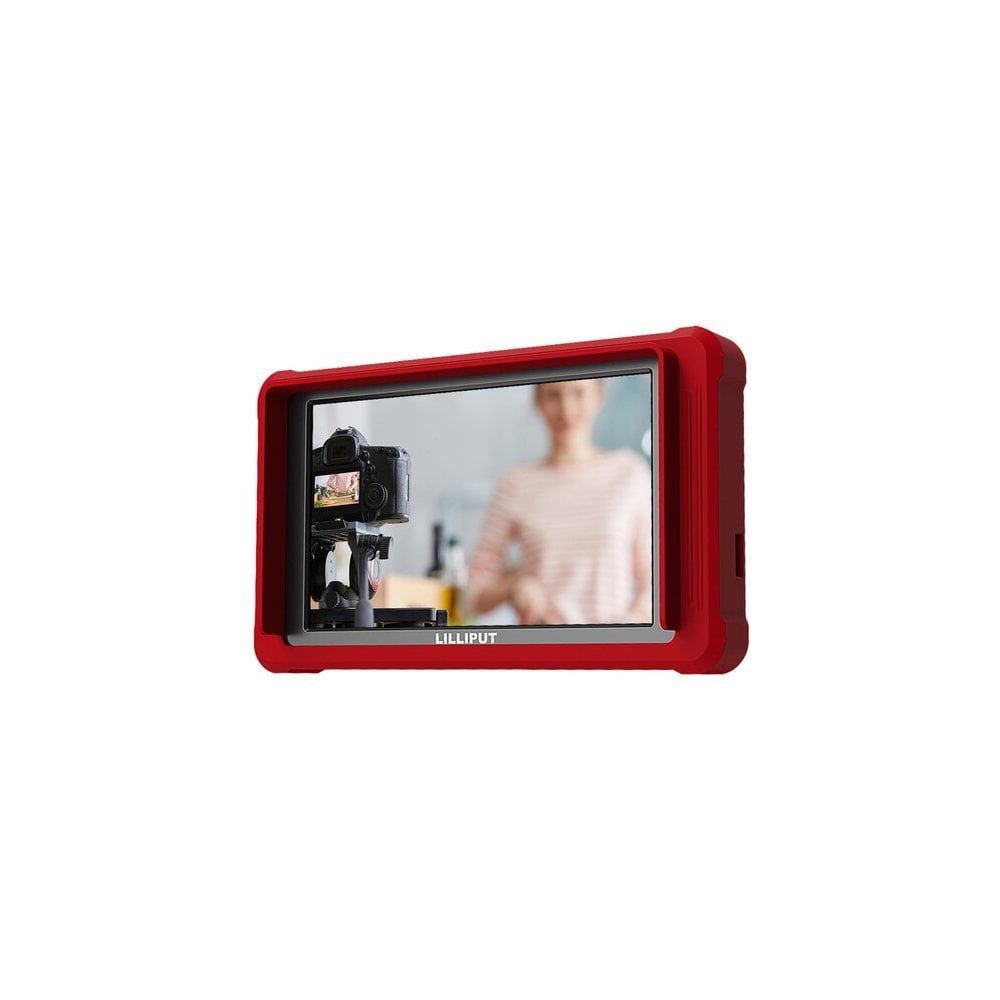

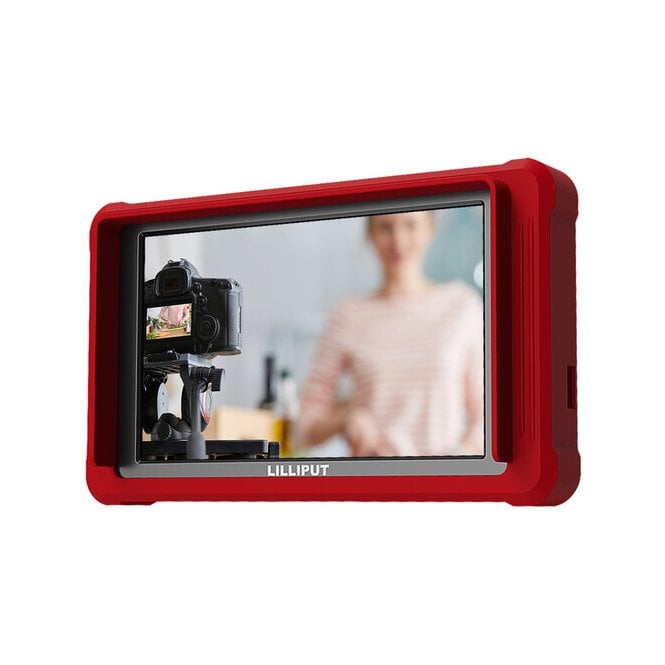

Lilliput 5.4 Inch HDMI 2.0/3G-SDI On-Camera Monitor

Lilliput FS5 (F/S/5, F-S-5, F S 5, F_S_5, FS5) 5.4 Inch HDMI 2.0/3G-SDI On-Camera Monitor.

Standard/Technical:
5.4" On-Camera Monitor with HDMI 2.0 and 3G-SDI Inputs

Descriptive/Marketing:
Compact 5.4" On-Camera Display with HDMI 2.0 and 3G-SDI Support

Concise/Professional:
5.4" HDMI 2.0 / 3G-SDI Camera-Top Monitor

Feature-focused:
5.4-Inch On-Camera Monitor – HDMI 2.0 & 3G-SDI Connectivity

Display

• Aspect Ratio: 16:10
• Brightness: 600cdm²
• Contrast Ratio: 1000:1
• Display Screen: 5.4" LTPS
• Resolution: 1920 x 1200
• Viewing Angle: 160° / 160°
• HDR: ST2084 300/1000/10000 / HLG
• LUT Support: 3D-LUT (17 x 17 x 17 .cube format)
• Supported Log Formats: Slog 1 / Slog 3 / Arrilog / Clog / Jlog / Vlog / Nlog / User

Video Signals

• 3G SDI In: 1x
• HDMI In: 1x HDMI 2.0 Supports up to 4K60Hz

Audio

• Speaker: 1x Speaker + 1x Earphone Jack

Size

• Dimensions: 154.5mm x 90mm x 20mm
• Weight: 295g

Power

• Battery: NP-F Plate / LP-E6 Plate Included (Battery sold separately)
• Current: 0.75A (12V)
• Input Voltage: DC 7-24V
• Power Consumption: <= 9W

Environment

• Operating Temperature: -20°c to +50°c
• Storage Temperature: -30°c to +70°c

In the Box

• Lilliput FS5 5.4" HDMI 2.0/3G-SDI On-Camera Monitor
• Silicone Case
• LP-E6 Battery Plate
• L-Series Battery Plate
• 12 VDC Power Adapter
• Sun Hood
• Shoe Mount
