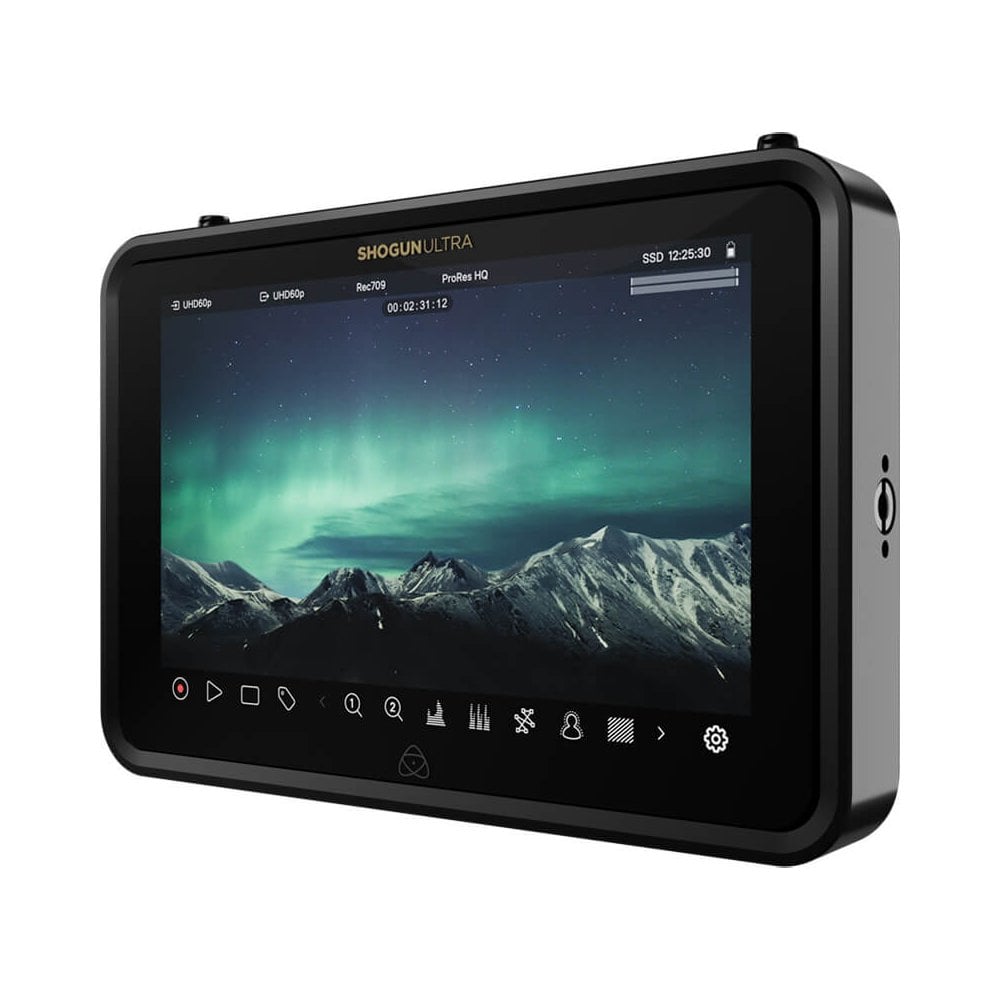

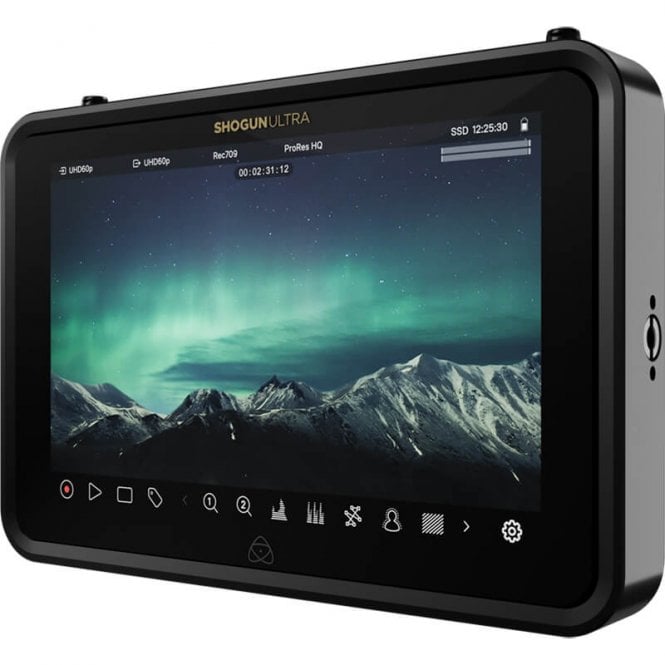

Atomos 7" Shogun Ultra Monitor-Recorder

Atomos 7" Shogun Ultra Monitor-Recorder(AO-ATOMSHGU01)

The 7" Shogun Ultra Monitor-Recorder, the latest in the ATOMOS line of Shogun onboard camera video monitor-recorders, brings built-in network connectivity to your mirrorless, DSLR, and cine-style capture, enabling fast and productive workflows. Efficient cloud-based workflow options include dual ProRes RAW/H.265 recording for Camera to Cloud, automated matching file names with popular cine-style cameras, and 4K H.265 capture for instant publishing from the cloud. Partnering with industry-leading camera manufacturers ensures that the Shogun Ultra will work seamlessly with an increasingly wide range of cameras.

Atomos 11

The 7" Shogun Ultra features the new AtomOS 11 operating system with EL Zone exposure-referenced colorized images, ARRI false color, and new scheduled recording and playback tools.

An increased number of standard codecs include up to 8K Apple ProRes Raw, DNxHD, and H.265.

Complete Connectivity

More Codecs: the 7" Shogun Ultra's additional standard codecs include 8K Apple ProRes Raw, DNxHD, and H.265.

Dual Recording: the ability to record full-quality Apple ProRes Raw files at rates up to UHD 4K 60p while at the same time recording 1080p 60 to H.265 makes the 7" Shogun Ultra ideal for use with cine-style cameras.

Matched Files: file name matching provides easier workflows with ARRI, Canon, RED, and Sony cameras.

Improved Monitoring: improved monitoring functions include EL ZONE System exposure and ARRI false color.

RemoteView: this new feature enables you to share live views from your screen over the internet.

NDI TX Option

Use the optional NDI transmission function to send high-quality video over ordinary networks (including Wi-Fi and mobile) using remarkably low bandwidth requirements.

NDI is increasingly being used in live production, and now your Shogun can be part of an NDI environment.

The NDI TX option turns your Shogun into an NDI source, visible to all other authorized devices on the network.

Ultrabright Screen

The Shogun Ultra's super-bright, large 7" screen is viewable in almost every kind of light: indoors, outdoors, or anywhere you need critical, instantly viewable feedback on your images.

I2000 cd/m² brightness makes the Shogun Ultra ideal for checking your HDR footage while you’re still on set.

Play back your recently captured shots on the same pristine screen for reviewing or even uploading to the cloud.

Durable Build

The Shogun Ultra's durable housing is suitable for use in all environments.

Use the built-in tally light to quickly see the recording status.

The solid Wi-Fi and AirGlu RF antennas ensure stable transmission.

Power the Shogun Ultra using the L-series battery plate on the back of each monitor or optional DC power input.

Mount this monitor-recorder using the 3/8”-16 threads on the top and bottom or use the included 1/4”-20 adapter.

The Shogun Ultra has a built-in slot for the included Master Caddy III, an SD card slot that supports cards up to 4TB, and  CFast II card compatibility using an SSDmini adapter to record as long as your media allows.

The USB-C port can be used to add options and for future AtomOS updates.

Panel Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Resolution

1920 x 1200

Aspect Ratio

16:9

Touchscreen

Yes

Maximum Brightness

2000 nits / cd/m2

Bit Depth / Color Support

10-Bit (1.07 Billion Colors)

HDR Compatibility

HDR10

Pixels Per Inch (ppi)

315 ppi

Color Gamut

100% DCI-P3

100% Rec. 2020

Real-Time LUT Monitoring

SDR, HDR

Image Controls

Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O

1 x HDMI 2.0 Input

1 x BNC (12G-SDI) Input

1 x HDMI 2.0 Output

1 x BNC (12G-SDI) Output

Embedded Audio

HDMI: 8-Channel

SDI: 24-Channel

Audio I/O

1 x 1/8" / 3.5 mm Headphone Output

1 x 1/8" / 3.5 mm Input

1 x 1/8" / 3.5 mm Output

Built-In Speaker

None

Power I/O

1 x Barrel Input

Other I/O

1 x 2.5 mm (LANC)

1 x USB-C (Serial) Input

1 x RJ45 (Gigabit Ethernet) Input

Media/Memory Card Slot

Single Slot: SSDmini/SSD with Master Caddy II/III

File System Support

exFAT

Wi-Fi

Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)

Bluetooth

Yes

Mobile App Compatible

Yes: Android & iOS

App Name: AtomRemote

Functionality: Adjust Settings, Setup

*As of September, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format

HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)

8K Raw: 30

6K Raw: 60/30

4K Raw: 120

DCI 4K: 60

UHD 4K: 60

DCI 2K: 60

1080p: 120

1080i: 60/50

720p: 60

Gamma Curve

ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2

Video Signal Conversion

HDMI to SDI



SDI to HDMI

Timecode Support

Yes

Recording

Pulldown Conversion

None

Camera Trigger

SDI, HDMI

Pre-Roll Record

None

Encoding Formats

x

DNxHD

H.265

ProRes

Metadata Tagging

Yes

Phantom Power

None

Power

DC Input Power

6.2 to 16.8 VDC

Built-In Battery

None

Battery Type

1 x L-Series

Mounting

Mounting

3 x 1/4"-20 Female

3 x 3/8"-16 Female

Environmental

Environmental Protection

None

Operating Temperature

72°F / 40°C

General

Material of Construction

Aluminum, Polycarbonate

Dimensions

7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm

Weight

1.6 lb / 730 g

In the Box

Atomos 7" Shogun Ultra Monitor-Recorder

USB-C PD to 2.1mm DC Power Lead

MasterCaddy III

2 x Wi-Fi Antenna

AirGlu Antenna

Antenna Tip Set

3.5mm Audio Cable
