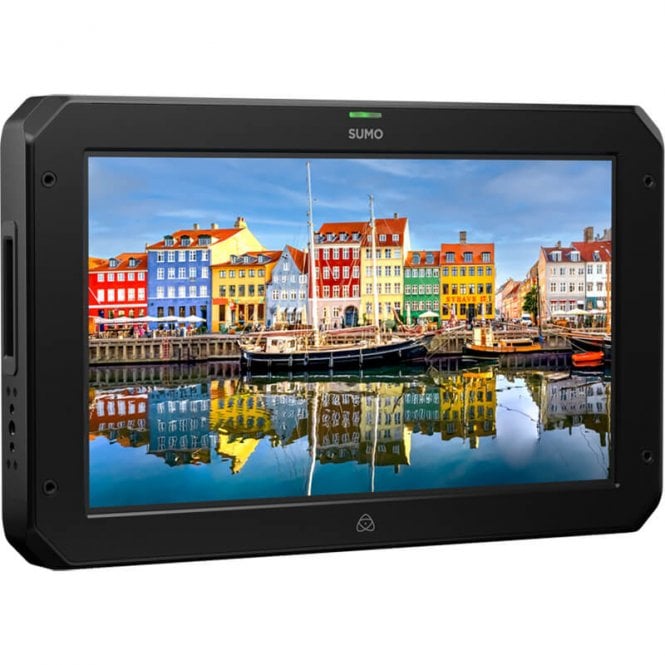

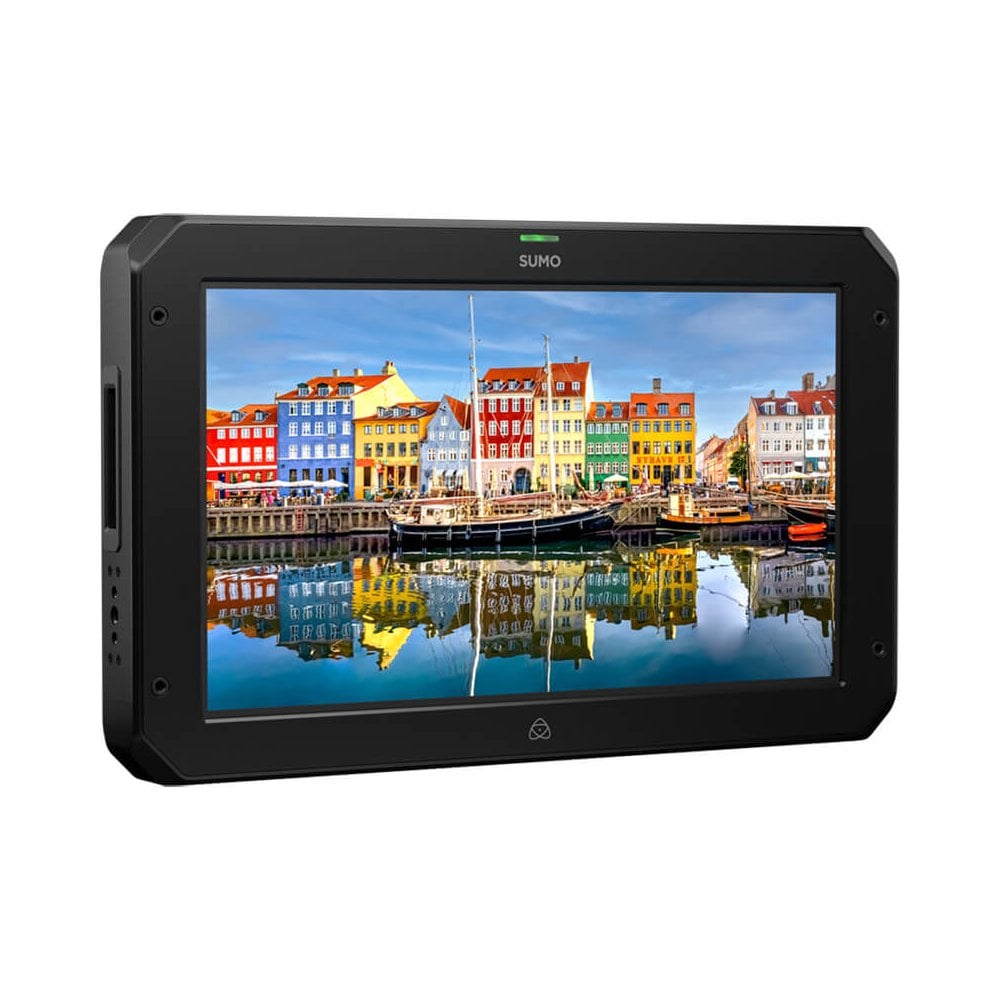

Atomos SUMO 19SE Multi-Channel HD Monitor-Recorder

Atomos Sumo 19SE 19" HDR SDI HDMI Monitor Recorder Switcher (AO/ATOMSUMO19SE1, AO_ATOMSUMO19SE1, AOATOMSUMO19SE1, AO ATOMSUMO19SE1) SUMO 19SE Multi-Channel HD Monitor-Recorder

RECORD UP TO 6KP30 PRORES RAW

The Atomos Sumo 19SE is a professional 19-inch HDR touchscreen monitor, recorder and live switcher designed for broadcast, cinema production, live events and professional video workflows.

Featuring a bright 1200nit 10-bit display with SDI and HDMI connectivity, the Sumo 19SE supports HDR monitoring, ProRes RAW recording, multi-camera live switching and advanced monitoring tools for directors, DITs, camera operators and production crews.

Physical Specifications

• Dimensions (W x H x D mm): 310mm / 12.2" x 504 mm / 19.8" x 63mm / 2.5"
• Weight: 6.2kg / 13.7lb
• Mount points: Top: 4 x 1/4' 20, 2 x 3/8", Bottom: 6 x 1/4' 20, 3 x 3/8" Right: 4 x 1/4' 20, 2 x 3/8", Left: 2 x 1/4' 20, 1 x 3/8"
• VESA mount: 100 x 100

Environmental

• Ambient operating temperature: Up to 40 Degrees Celsius

Construction and Control

• Cooling: Actively controlled fan and Heat Sink
• Tally light: Rear and front
• Multi-function button: Power / lock Screen
• Touch Screen: Yes

Power

• Input voltage: DC 12-16.8v
• Operating power: 75W
• Compatible batteries: V-Lock / Anton Bauer Gold Mount via XLR terminal, (optional mounting plates available), 95Wh+ recommended
• Battery voltage: 14.4V nominal
• Battery Run time (Record): Depends on Watt Hours specification of battery used
• Battery Run time (Monitor only): Depends on Watt Hours specification of battery used
• Continuous power: Dual Battery input via dedicated 4 pin XLR
• DC in connector: 1 x 4 pin XLR (12-16.8V)
• Dtap: Via optional D-Tap to 4 Pin XLR cable

Display

• Touchscreen: SuperAtom IPS panel (capacitive touch)
• Size: 19"
• Resolution: 1920 x 1080
• PPI: 120
• Bit depth: 10Bit (8+2 FRC)
• Backlight Type: Optically bonded quantum dot
• Brightness (cdm2 / nits): 1200nit (+/- 10% @ center)
• Aspect ratio: 16:9 Image Display
• De-interlace mode: Yes
• Color Gamut: DCI P3
• Calibration support: Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

Color Pipeline

• Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-log, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm F log, PQ (HDR10), HLG, Nikon N-Log
• Gamut: BT2020, DCI P3, DCI P3+, DCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, F-Gamut, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
• 3D LUT Display: .Cube format
• 3D LUT Output: Loop out
• 3DLUT 50/50: Yes
• Monitoring Modes: Native/ 709 / HLG / PQ / 3D LUT
• HDR output Conversion: HDR to HLG / PQ

Color Management

• Calibration: Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
• Display Controls: Backlight, Lift, Gamma, Gain
• AtomHDR: Built in Technical Log to HDR EOTF
• 3D LUTs: Display, monitor and output, Record, Load via SSD
• Legalize: Full to Legal conversion available on Input

Video Input

• HDMI: 1 x HDMI (2.0) 4K p60
• HDMI RAW: No - HDMI Video only
• SDI: 4 x 3G SDI, with 2 x 12G SDI backwards compatible, auto detection
• SDI RAW: Apple ProRes RAW up to 6Kp30
• Bit Depth: 8/10Bit Video / RAW up to 12Bit
• Video Chroma Subsampling: YCbCr 422
• HDR: Yes with Auto detection

Metadata

• SDI: File Name from Arri, RED. RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut

File Naming

• Standard: S/S/T & Rolling
• Via SDI: Red, Arri
• Video Output
• HDMI: 1 x HDMI (2.0) 4K p60
• SDI loop out: 1 x 12G SDI Backwards compatible, Auto detection. Level A and B selectable
• SDI Play out: 1 x 12G SDI Backwards compatible, Auto detection. Level A and B selectable
• Video Chroma Subsampling: 422
• Bit Depth: 10Bit Video / 12Bit RAW

Web Streaming

• USB UVC: Optional via ZATO Connect / USB Stick

Video Signal Conversion

• HDMI to SDI: Yes
• SDI to HDMI: Yes - Video and RAW

Audio In/Out

• Audio Quality: 24-Bit / 48kHz
• Audio Codec: PCM
• HDMI: 8ch 24Bit, input dependent
• SDI: 12ch 24Bit, input dependent
• Analogue Audio in: 2 x XLR
• Analogue Audio Out: 2 x XLR
• Speakers: 2 x 5w
• Headphone out: 3.5mm 2ch.

Timecode / Sync

• Embedded: SDI and HDMI
• Time of day: Yes, Time and Date
• LTC: LTC via BNC input in Record mode
• Genlock: Genlock in Playback mode
• Resolution and Frame Rates (Record, Monitor & Playback)
• 4k DCI: up to 4Kp60
• 4k UHD: up to 4Kp60
• 2K DCI 2046 x 1080: up to 2Kp60
• FHD 1920 x 1080 Progressive: up to 1080p120
• FHD 1920 x 1080 PsF: Pull down
• FHD 1920 x 1080 Interlaced: 1080i50 / 1080i60
• 1280 x 720p: 60p
• 6K RAW: up to 6Kp30 Via SDI
• 4K RAW: up to 4Kp60 via SDI
• 2K RAW: up to 2Kp240 via SDI

Recording CODEC

• CDNG: For SDI RAW inputs Only
• Apple ProRes RAW: ProRes RAW, ProRes RAW HQ up to 12bit 6Kp30 / 4Kp60
• Apple ProRes: Apple ProRes HQ / 422 / LT up to 4Kp60
• Avid DNxHD: up to 1080p60
• Avid DNxHR: up to 4Kp60

Playback

• Playlist: Yes, Create custom play lists from full or sub clips
• Loop: Yes, with user customizable in / out markers
• CDNG: No
• Apple ProRes Raw: Yes, recorded clips with linear PCM
• Apple ProRes: HQ / 422 / LT - Yes with linear PCM
• Avid DNx: DNxHR / DNxHD - Yes with linear PCM

Monitoring

• SDR: Native, 709, LUT
• HDR: HLG, PQ Rec2020
• De-Interlace: Selectable mode

Recording functions

• Pre-roll record: Yes (HD 8s, 4K 2s) - Not available in RAW
• ISO Record: 4 x ISO up to 1080p 60 (3G SDI Level A ONLY)
• Switched Program Record: Yes Up to 1080p 60
• Timelapse: Yes

Multi Input / Switching

• SDI A/B toggle: Yes, supports up to 12G SDI per input
• Dual Input display: Via Multi ISO input mode
• Multiple SDI input: Up to 4 x up to 1080p 60 (3G SDI Level A ONLY)
• Multiview Display: Via Multi ISO input mode
• Input transitions: Auto or manual XML transition
• Input Switching: Yes

Supported media

• Master Caddy I: No
• SSDmini: Yes (AtomX SSDmini handle required)
• CFast II: Not supported
• File System: ExFAT
• Interface: SATA 3
• Master Caddy III: Yes

On-screen tools

• Waveform: 3 sizes
• RGB parade: 3 sizes
• Vector scope: 2 size / Position
• 1 x Zoom: Yes. 1:1 Pixel mapping for 4K
• 2 x Zoom: Yes
• Focus peaking: Colour selected / threshold setting / colour/ Mono / edges only
• False colour: Yes, with IRE scale
• Zebra: Yes, customisable
• Isolate color channel: Blue only
• Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
• Social Frame guides: 9:16, 1:1, 1.91:1, 4:5
• Safe areas: SMPTE frame size – Action and Safe
• Grid markers: 9 grid
• Anamorphic desqueeze: Display 1.25x, 1.33x, 1.5x, 1.8x and 2x
• Display Flip: Vertical
• False Color: Yes, with IRE scale

Onboard Signal Processing

• 4K UHD Downscale for HD: Loop out - 4K UHD to FHD
• DCI Crop: Loop out - 17:9 to 16:9 Crop
• I > P: 60i > 24p (3:2 pulldown)
• PSF > P: 24/25/30pSF > 24/25/30p (2:2 pulldown)

Remote control

• HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard
• SDI: SDI trigger, camera selectable
• Serial 2.5mm Jack: LANC control and calibration via optional USB to serial cable

Cut & Tag

• FCP XML: Cut tag EDL and Multicam with transitions in FCP XML

Supported Applications

• XML: Apple Final Cut Pro
• Apple ProRes RAW: Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH
• Video Codecs: All applications with support for Apple ProRes and Avid DNX in .MOV wrapper

In The Box

• Sumo 19SE unit
• 1x Master Caddy II
• 1x BattWing mounting bracket with 4x screws
• 2x Desktop Feet with 4x 1/4” Mounting screws
• AC power supply
