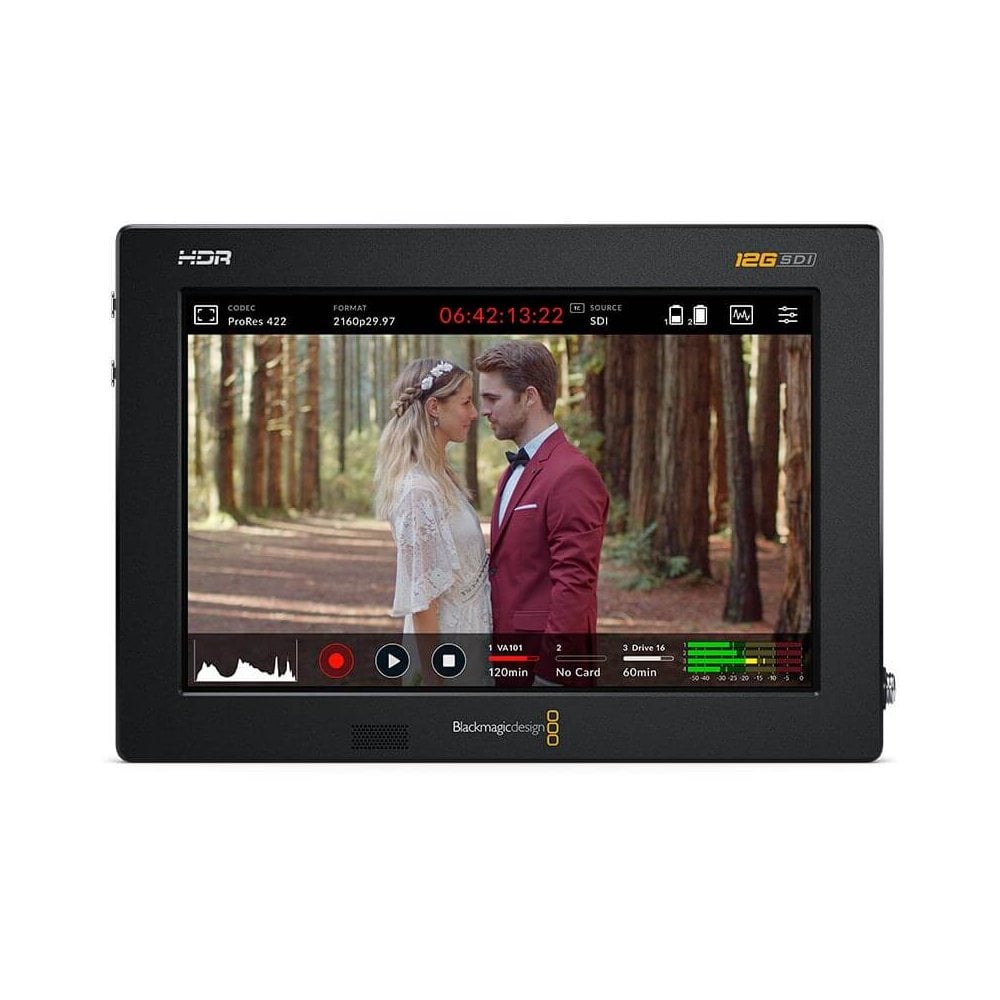

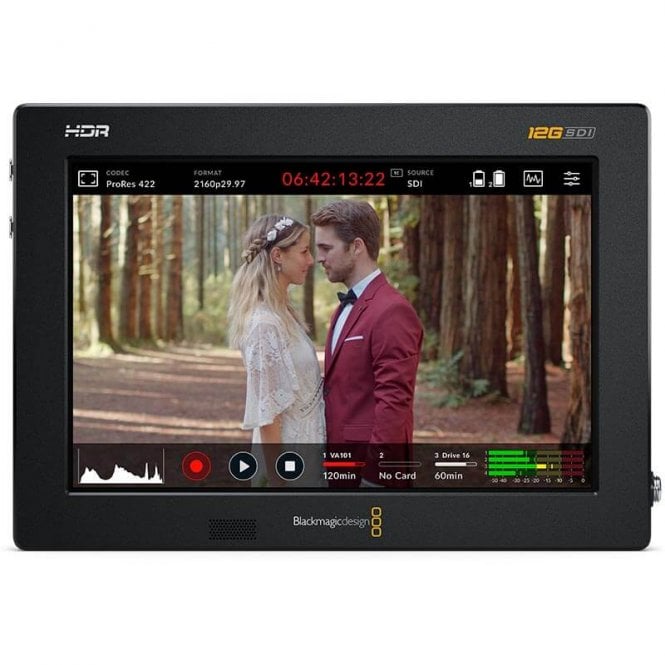

Blackmagic BMD-HYPERD/AVIDA12/7HDR Design Video Assist 7-inch 12G HDR Monitor

Blackmagic BMD-HYPERD/AVIDA12/7HDR (BMD_HYPERD_AVIDA12_7HDR, BMD/HYPERD/AVIDA12/7HDR, BMD HYPERD AVIDA12 7HDR) Design Video Assist 7-inch 12G HDR Monitor

Blackmagic Video Assist 7" 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10-bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of -128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files.

Introducing Blackmagic Video Assist 12G HDR

The new Blackmagic Video Assist 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The whole new design includes innovations such as brighter screens for HDR work, tally indicator, 4 built in scopes, enhanced focus assist features, 3D LUTs and native Blackmagic RAW recording from supported cameras! With 12G-SDI and HDMI 2.0 on both 5" and 7" models, you get support for recording from virtually any device in all formats up to 2160p60. The brighter touch screen ensures a perfect view of your recording for HDR digital film and when shooting outdoors in sunlight. The new design also features upgraded batteries and supports two standard Sony L‑Series batteries. This means Blackmagic Video Assist 12G is incredibly versatile and is the perfect solution for the next generation of digital cinema shoots, live production mastering and, broadcast testing and measurement.

Perfect For Digital Cinema, Live Recording And Monitoring

With its amazing versatility, Blackmagic Video Assist 12G is also great for recording from cameras, or even as a clip player! As the files are compatible with the HyperDeck disk recorders, you can even use Video Assist as a broadcast field recorder, or an ultra portable broadcast scope! Video Assist is a fantastic broadcast solution because you get both HDMI and 12G-SDI inputs plus it has built in scopes and 3D LUTs! The scopes also help you QA masters to ensure compliance with broadcast standards before streaming and broadcast.

Modern Design With 12G‑Sdi And Bright Hdr Screens

There are two models of Blackmagic Video Assist 12G, with each model including an innovative touch screen user interface with deck controls as well as a large screen to view your recording. The Blackmagic Video Assist 7" 12G model also includes 2 media slots, while both the 5" and 7" models include 12G‑SDI for high frame rate Ultra HD, analogue inputs for audio, USB‑C external disk recording, plus a front panel speaker and side mounted headphone jack! You also get 2 rear battery slots for mounting Sony L‑Series batteries, so you have enough power for the brighter HDR screens and higher speed Ultra HD electronics. Plus with 2 battery slots, you can change batteries without interrupting recording! A 12v universal power supply is included for studio or on location use.

Upgrade To Better Recording For Digital Cameras

Blackmagic Video Assist 12G HDR is an ideal upgrade for cameras, as it's super bright 2500nit display is bigger than the tiny displays found on consumer cameras, plus you're also adding professional focus assist features and better quality file formats. Video Assist is also a great solution for professional cameras because you can use it to upgrade older broadcast cameras to modern file formats used on the latest editing software. No matter what editing software you use, Video Assist lets you support them all, as you can record in Apple ProRes, Avid DNx and Blackmagic RAW. With both HDMI and 12G-SDI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. Then, on supported cameras, you can even upgrade to RAW style workflows with Blackmagic RAW.

Large Hdr Monitor With Easy Touch Controls

The innovative touchscreen LCD user interface provides incredible control. On screen, there are dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status as well as audio meters. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load and save 3D LUTs.

Dual Media Recorders For Uninterrupted Recording

Video Assist uses commonly available SD card media, so you can record to flash memory cards that are easy to obtain. The files are small enough to allow long recordings on standard SD cards or the faster UHS-II cards. The larger Video Assist 12G 7" model even includes 2 SD card slots so you can swap out any full cards even during recording, allowing infinite length recording. Standard SD cards or the faster UHS-II cards are perfect for broadcast because they are small, high speed and affordable.

Record Direct To External Usb‑C Media Disks

If recording to other media types is required, then the USB‑C Expansion port lets you plug in an external flash disk for recording. USB‑C flash disks have massive capacity as they don't suffer from any size constraint. Plus, it's possible to record to the same disk you are using or editing, so you don't need to waste time copying files before starting post production. Flash disks are so fast they can record high data rate formats that are too big for some lower cost media cards, such as high frame rate Ultra HD. Imagine adding a Blackmagic MultiDock 10G for easy SSD compatibility with other recorders such as Blackmagic HyperDeck models. You even get on screen menus for managing external disks using the touch screen.

Advanced 12G‑Sdi And Hdmi 2.0 Inputs And Outputs

Video Assist features a wide range of video and audio connections such as multi‑rate 12G‑SDI for SD, HD, and Ultra HD SDI devices. HDMI is included for HDMI cameras and monitoring to consumer televisions and video projectors. The 7 inch model features Mini XLR inputs which are provided for audio input from microphones and external audio mixers. The USB‑C connection lets you plug in flash disks or disk arrays for recording, allowing extremely long record durations and because you're recording to a media disk, you can edit direct from this disk after the shoot, eliminating extra file copying work. Video Assist even includes a 12V DC power connection with locking power connector.

HDR Support With Bright Wide Gamut LCD

You'll be ready for the latest HDR workflows with support for the latest HDR standards and an extremely bright screen with a wide color gamut. Plus the high brightness screen makes outdoor shooting in bright sunlight possible! The built in scopes even change to HDR scopes when working in HDR formats! Files are tagged with the correct HDR information then SDI and HDMI inputs will also automatically detect HDR video standards. Static metadata PQ and HLG formats are handled according to the ST2084 standard. The bright LCD has a wider color gamut so it can handle both Rec. 2020 and Rec. 709 colorspaces. The built in Video Assist LCD color gamut can even handle 100% of the DCI‑P3 format.

Built In Scopes Ensure Compliance To Standards

Video Assist features full internal waveform monitoring so you can ensure compliance to broadcast standards and it also works great as a portable waveform monitoring solution! The waveform display provides a traditional luminance (brightness) levels view of your input or playback signal. The vectorscope display allows you to see the intensity of color at 100% SDI reference levels. You also get an RGB parade display which is ideal for color correction and checking for illegal levels. Histogram shows the distribution of white to black detail in your images and highlights or shadows clipping. The built in scopes can even be overlaid on live video, or as a small picture in picture view at the top right of the scope.

Latest Multi Rate 12G‑SDI For Sd, Hd And Ultra HD

You get full support for the most popular video standards. The SDI and HDMI connections are multi‑rate, so handle SD, HD, and Ultra HD. SD formats include NTSC and PAL. 720p HD standards include 720p50 and 59.94p. 1080i HD interlaced formats include 1080i50 and 59.94. 1080p HD formats include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. You can even do 1080 PsF formats. Ultra HD is supported up to 2160p59.94. You can even record 2K and 4K DCI rates up to 25p for digital film work.

Load Custom 3D Luts To Recreate Film Looks

Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. LUTs can be applied temporarily for monitoring only, or they can be burned into files for use in editing when capturing Blackmagic RAW. Video Assist works with industry standard 17 and 33 point 3D LUT files, or you can work with the built in LUTs such as Extended Video, Film to Video, Film to Rec.2020 and more.

Post Production Friendly File Formats

Video Assist records using standard open file formats so you don’t have to waste time transcoding media. Files are compatible with all post production software so you can work with the software of your choice, including DaVinci Resolve Studio. Recording works in industry standard 10‑bit Apple ProRes files in all formats and from all HDMI or SDI camera, or 12‑bit Blackmagic RAW when connected to supported cameras. Blackmagic RAW is the fastest growing RAW format and developers can download and use the free Blackmagic RAW SDK to add support to their applications. Best of all, media files work on all operating systems.

The Quality Of Raw And The Speed Of Video

Blackmagic RAW is a revolutionary new format designed to capture and preserve the quality of the sensor data from cameras. Video Assist supports Blackmagic RAW recording from popular cameras such as Panasonic EVA1 and Canon C300 MK II. This eliminates the problems with popular camera formats such as H.264, which are highly compressed resulting in noise and processing artifacts. Blackmagic RAW eliminates this problem and gives you stunning images with incredible detail and color throughout the production pipeline from camera to edit, color and mastering. It also saves camera settings as metadata so you can set ISO, white balance and exposure, then override them later while editing, all without any loss of quality! Only Blackmagic RAW gives you the highest quality, smallest files and fastest performance.

Professional Multi Channel SDI And Analogue Audio

Blackmagic Video Assist 12G includes professional audio for modern cameras or other outboard audio equipment. When working in SDI formats, you can record 2, 4, 8 or 16 channels of audio in real time. For connecting microphones the Video Assist 7" model has two XLR analogue audio inputs with phantom power that support the high definition audio sample rate of 192 kHz at uncompressed 16 and 24 bit per sample. You can monitor using on screen audio meters with user selectable VU or PPM ballistics. Blackmagic Video Assist 12G features the latest in technology, including audio, with the analogue audio connections designed to low noise and low distortion digital cinema and broadcast specifications.

Localized For 11 Popular Languages

Multiple languages are fully supported so you don't need to learn another language to use it! Support is included for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese and Turkish. At first start, Video Assist will display a menu for selecting a language, plus you can still use the menus to change languages any time you need. When a language is selected, the on screen text overlays will change to the selected language, as well as overlays on the video outputs when enabled. All this means Video Assist is perfect for doing international location work with different crews.

Works With The World'S Most Popular Video Software

The files from Blackmagic Video Assist 12G are common and are compatible with all operating systems or in most video software. Media can be formatted using ExFAT or HFS+ so you can easily access the media on computers and access the files like regular disks. DaVinci Resolve is perfect for use with Video Assist because it features editing, color correction, audio post production and visual effects all in one software application. Plus you can download DaVinci Resolve free of charge for Mac, Windows and Linux! You can also use recorded files in other popular software such as Premiere Pro and Final Cut Pro X. With Video Assist, your media is common so your files will remain readable in the future.

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
• HDMI 2.0a Video Inputs: 1
• HDMI 2.0a Video Outputs: 1
• Analog Audio Inputs: 2 x balanced mini XLR with phantom power
• Analog Audio Outputs : 1 x 3.5 mm headphone jack
• Built in Speaker : Mono
• Screen Dimensions : 7 inch 1920 x 1200
• Screen Brightness : 2500nits
• Screen Colour : P3 wide colour gamut
• SDI Audio Inputs : 16 channels embedded via 12G-SDI
• SDI Audio Outputs : 16 channels embedded via 12G-SDI
• HDMI Audio Inputs : 8 channels embedded via HDMI 2.0a
• HDMI Audio Outputs : 8 channels embedded via HDMI 2.0a
• Remote Control : 1 x 2.5mm LANC for Record Start and Stop
• SD Interface : Dual UHS-II SD slots
• Storage Type : Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards, Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
• Computer Interface : 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control

SDI Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards : 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 , 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
• Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• SDI Compliance : SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
• SDI Metadata Support : HD RP188
• Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
• Video Sampling: 4:2:2 YUV
• Colour Precision : 10-bit
• Colour Space : REC 601, REC 709, REC 2020
• HDR Support: HDR10, Hybrid Log Gamma
• Multiple Rate support : SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s

HDMI Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards : 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards : 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• HDMI Colour Precision : 10-bit
• HDR Support : HDR10, Hybrid Log Gamma
• Copy Protection : HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Media

• Media: 2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording
• Media Type : SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards

Supported Codecs

• Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF

Control

• Recorder Control: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus
• External Control: LANC, SDI start/stop, timecode run

Software

• Software Included: Blackmagic Video Assist Operating System

Scopes

• Scopes: Waveform, RGB Parade, Vector, Histogram
• Viewing Modes: Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules

Operating Systems

• Operating Systems: Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1 or Windows 10

Power Requirements

• Power Supply: 1 x External 12V power supply, Compatible with Sony NP-F style batteries (batteries not included)

Physical Specifications

• Dimensions: 193 x 130.5 x 37mm
• Weight: 825g

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

In the Box

• Blackmagic Video Assist 7” 12G HDR
• Universal power supply with locking connector and international adapters
