CAME-TV 4K-C17-PLUS 17″ Monitor

CAME-TV 4K-C17-PLUS 17″ Monitor(4K-C17-PLUS)

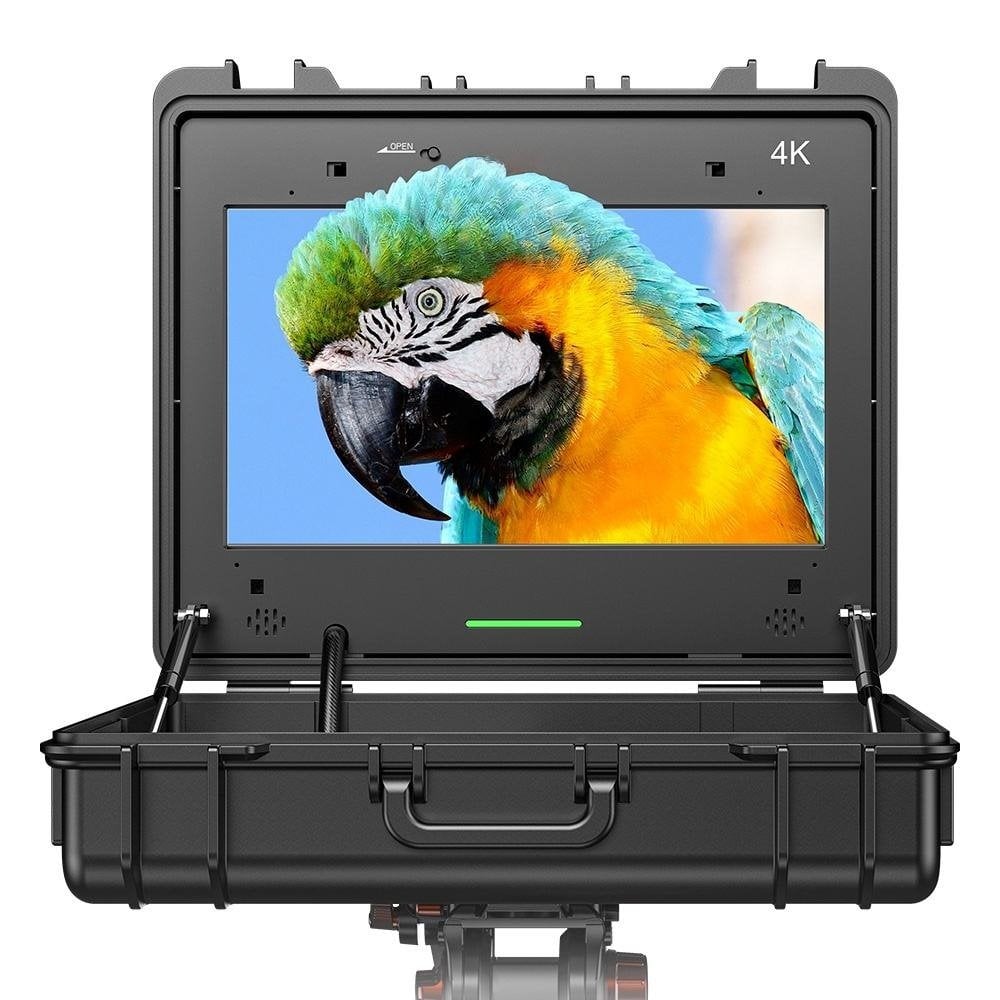

The monitor looks to be designed for on-set use with V-Lock plate also inside the case.

The monitor isnt very bright at only 400nits so usability outside in the sun will be limited. With 4-HDMI and 2-SDI inputs you can switch between cameras to see the different angles. The inputs are all on the inside of the case. Probably a good idea as having the input connectors on the outside would make them vulnerable to be damaged.

All the controls are located inside the bottom of the case right in front for easy access. A 3.5mm headphone jack is also avaialble.

Hdmi Specifications

720*480i&720*480p @59.94, 60Hz

720*576i & 720*576p @50Hz

1280*720P@ 50, 59.94, 60Hz

1920*1080i @ 50, 59.94, 60Hz

1920*1080p @ 24, 25, 29.97, 30Hz

1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz

3840*2160p @ 24,25,30,[50,60Hz(HDMI1/2)]

4096*2160P @ 24Hz

SDI SPECIFICATIONS

720*480i @59.94, 60Hz

720*576i @50Hz

1280*720P@ 50, 59.94, 60Hz

1920*1080i @ 50, 59.94, 60Hz

1920*1080p@ 24, 25, 29.97, 30Hz

1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz

Screen Size 17.3 Inches

Resolution 3840*2160

Display Area 382.12mm(W) × 214.94mm(H)

Contrast Ratio 1000:1

Brightness 400nit

Viewing Angle 178°(H/V)

Backlight LED

In the Box

CAME-TV 4K-C17-PLUS 17″ Monitor
