Datavideo DATA-TLM170V 17 Inch Video Monitor

code: DATA-TLM170V
  • £1,024.00
  • RRP: £1,245.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • 17" ScopeView Production Monitor
  • 1920x1080 Full HD IPS Panel resolution
  • 3G-SDI video input with loop-through output
  • HDMI input with loop-through output
  • Integrated Tally input for Live Broadcast
  • Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field, etc
  • SDI, HDMI cross conversion
  • Individual adjustments of Brightness, Contrast and Colour Saturation
  • Colour temperature for user to select
  • Front panel Headphone Jacks and speakers
  • F1, F2, F3, F4 user-definable buttons to custom auxiliary functions as the shortcut.

Datavideo DATA-TLM170V (DATATLM170V, DATA TLM170V, DATA/TLM170V, TLM170V) 17 Inch Video Monitor.

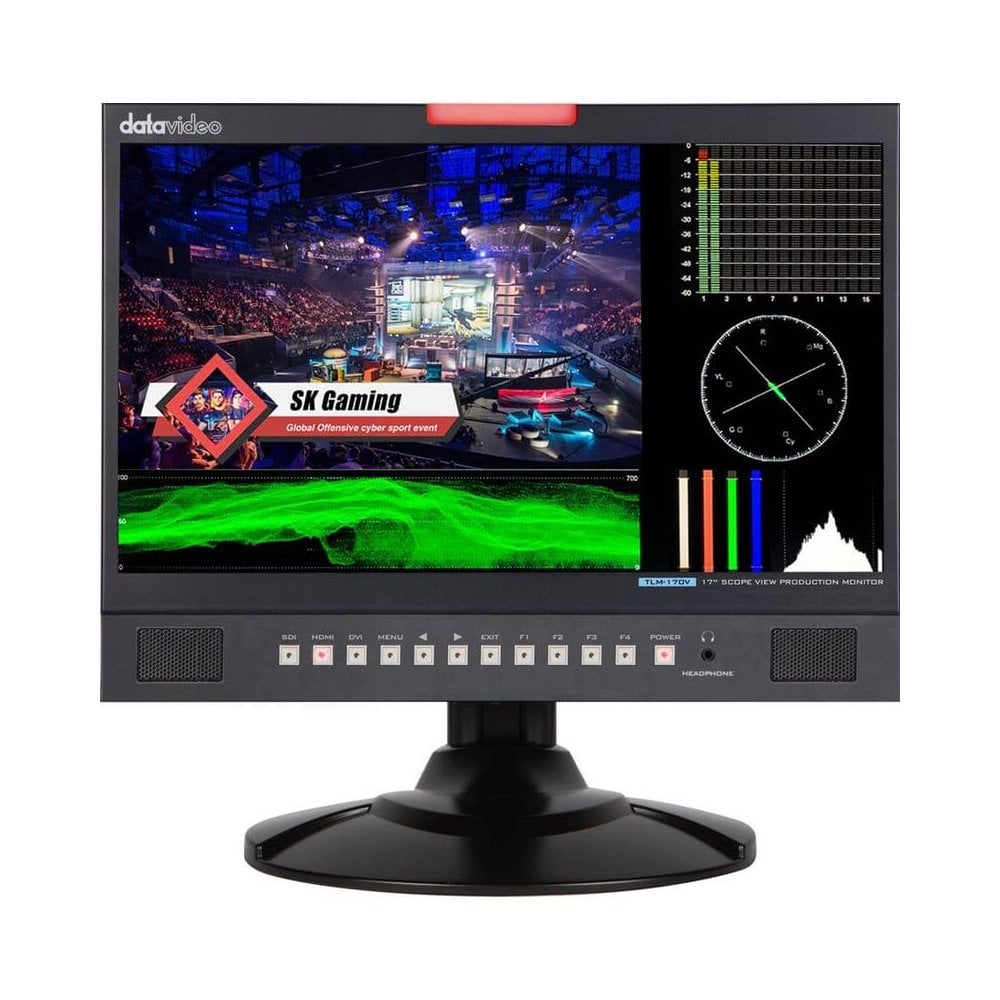

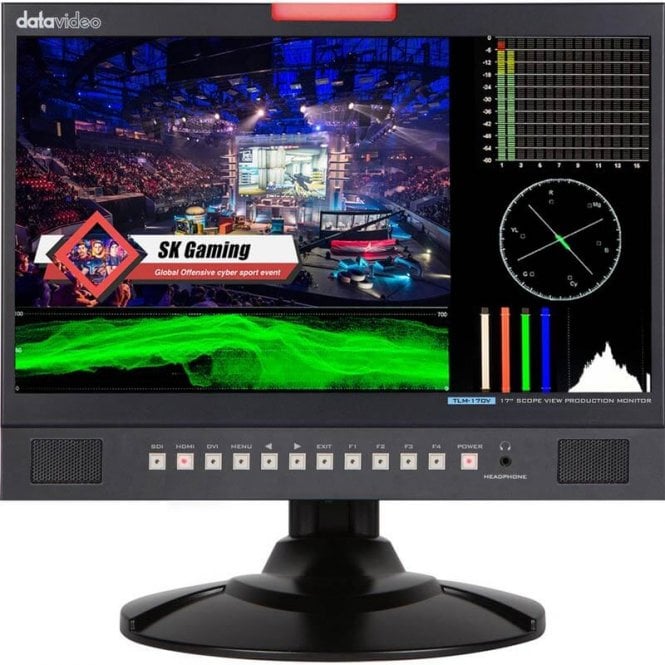

The TLM-170V is a 17.3” monitor featuring 1920x1080 full HD resolutions and 170° wide viewing angles.

The TLM-170V integrates various built-in functions such as waveform, vector scope and SDI/HDMI cross converter for easy viewing. It's convenient for portable outdoor use or applied in news vans, satellite trucks, and central equipment room.

  • Screen: 17.3inch LED Backlit
  • Resolution: 1920 x 1080
  • Viewing Angle: (H) +89/-89° (V) +89/-89°
  • Luminance/Contrast: 300cd/m² 700:1
  • Video Inputs: 1 x 3G/HD/SD-SDI, 2 x HDMI
  • Loop Through: 1 x 3G/HD/SD-SDI, 1 x HDMI
  • Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.95/60Hz), 1080i(50/59.94/60Hz), 720p(50/59.94/60Hz), 576i(PAL), 480i (NTSC)
  • Aspect Ratio: 16:9, 4:3
  • Tally LED: Live (Red), Cued (Green)
  • Audio In/Out: 2 x Speaker, 1 x Headphone Jack
  • Special Features: SDI and HDMI cross conversion, Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field
  • Power: DC 10-18V, 32W

In The Box

  • Datavideo DATA-TLM170V 17 Inch Video Monitor.
