Datavideo Tlm-170 (KR) 7U Rackmount 17" Uhd Production Monitor

Datavideo Tlm-170 (KR) 7U Rackmount 17" Uhd Production Monitor(DATA-TLM170KR)

DataVideo DATA-TLM170KR (DATATLM170KR) TLM-170 (KR) 7U Rackmount 17 Inch UHD Production Monitor datavideo-data-tlm170kr-17-inch-production-monitor / TLM-170KR. TLM-170KR 17” ScopeView Production Monitor-Rack Mount

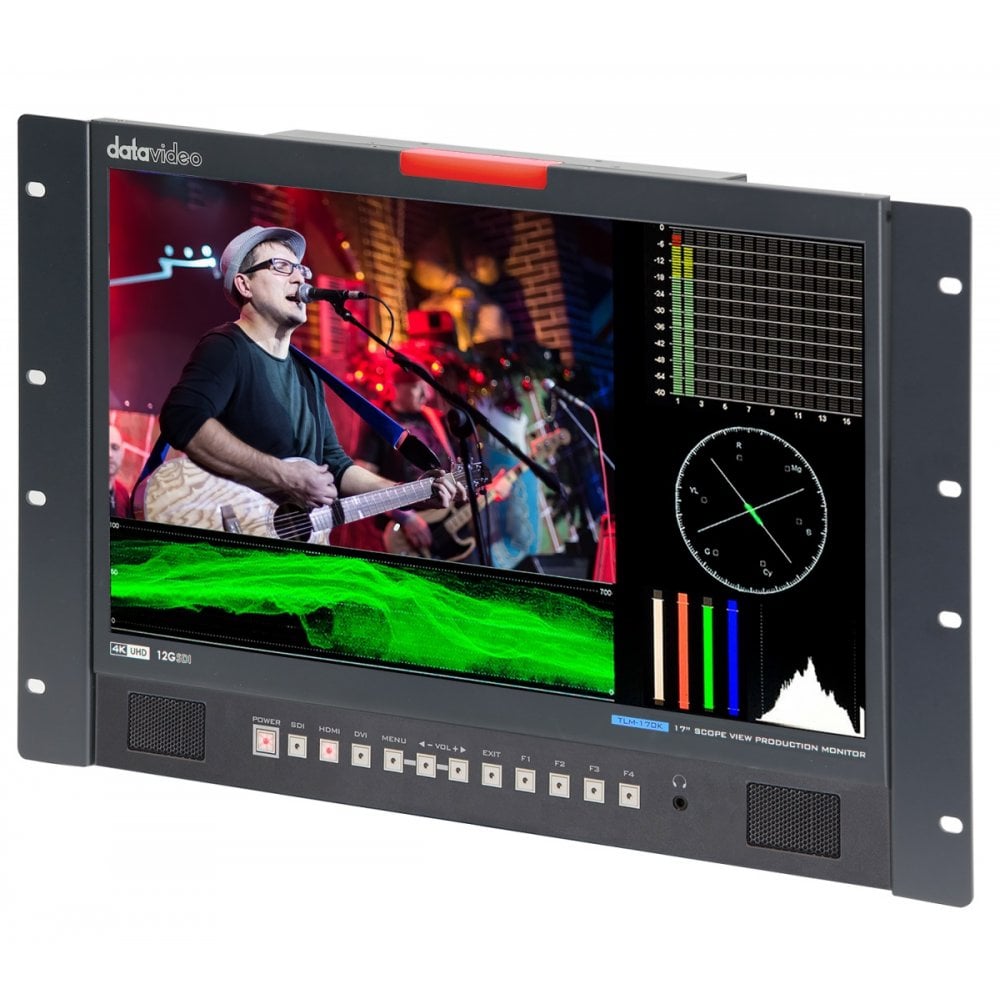

The TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel.  The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio.  The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more.  Moreover,  it also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3.  The TLM-170K series are ideal for broadcast and live production applications.

Supports DCI P3 colour space 4K/60...

Screen 17.3" LED Backlit

Chassis Rack Mount

Resolution 3840 × 2160

Viewing Angle (H) +89/-89°

(V) +89/-89°

Luminance/Contrast 300cd/m²

1000:1

Video Inputs 1 x 12G SDI

2 x HDMI (2.0)

Loop Through 1 x 12G SDI

1 x HDMI (2.0)

Supported Input Resolutions

SDI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60)

3840x2160p (23.98/24/25/29.97/30/50/59.94/60)

4096x2160Psf (23.98/24/25/29.97/30)

3840x2160Psf (23.98/24/25/29.97/30)

1920x1080p (23.98/24/25/29.97/30/50/59.94/60)

1920x1080i (50/59.94/60)

1920x1080Psf (23.98/24/25/29.97/30)

1280×720p (23.98/24/25/29.97/30/50/59.94/60)

525i, 625i

HDMI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60)

3840x2160p (23.98/24/25/29.97/30/50/59.94/60)

1920x1080p (23.98/24/25/29.97/30/50/59.94/60)

1920x1080i (50/59.94/60)

1280×720p (23.98/24/25/29.97/30/50/59.94/60)

720 x480i (NTSC), 720 x576i (PAL)

640 x800, 800 x600, 1024 x768, 1280 x800

Aspect Ratio 16:9, 4:3

Aspect Marker YES

Safty Marker YES

Tally LED Live (Red)

Cued (Green)

Audio In/Out Input: Embedded Audio (48KHz sampling)

Output: Analog stereo (Phone Jack)

Speaker x 2 (3W)

Special Features waveform,

vector scope,

Focus Peaking,

False Colour,

Exposure (Zebras),

Histogram,

HDR / SDR,

Time Code,

Audio Vector,

Camera Log,

Gamma, Marker,

Pixel to Pixel,

Zoom,

H/V Delay,

DSLR,

Freeze,

Image Flip,

Check Field,

Level Meter,

Colour Bar,

Colour Calibration.

Dimension (WxHxD) 403 x 305 x 37 mm

Weight 5.2kg

Operating Temp. Range 0~40 °C

Power DC 12V, 40.1W

In the Box

1 x TLM-170KR product

1 x AD Switch DC 12V

1 x Monitor Stand

2 x Velcro
