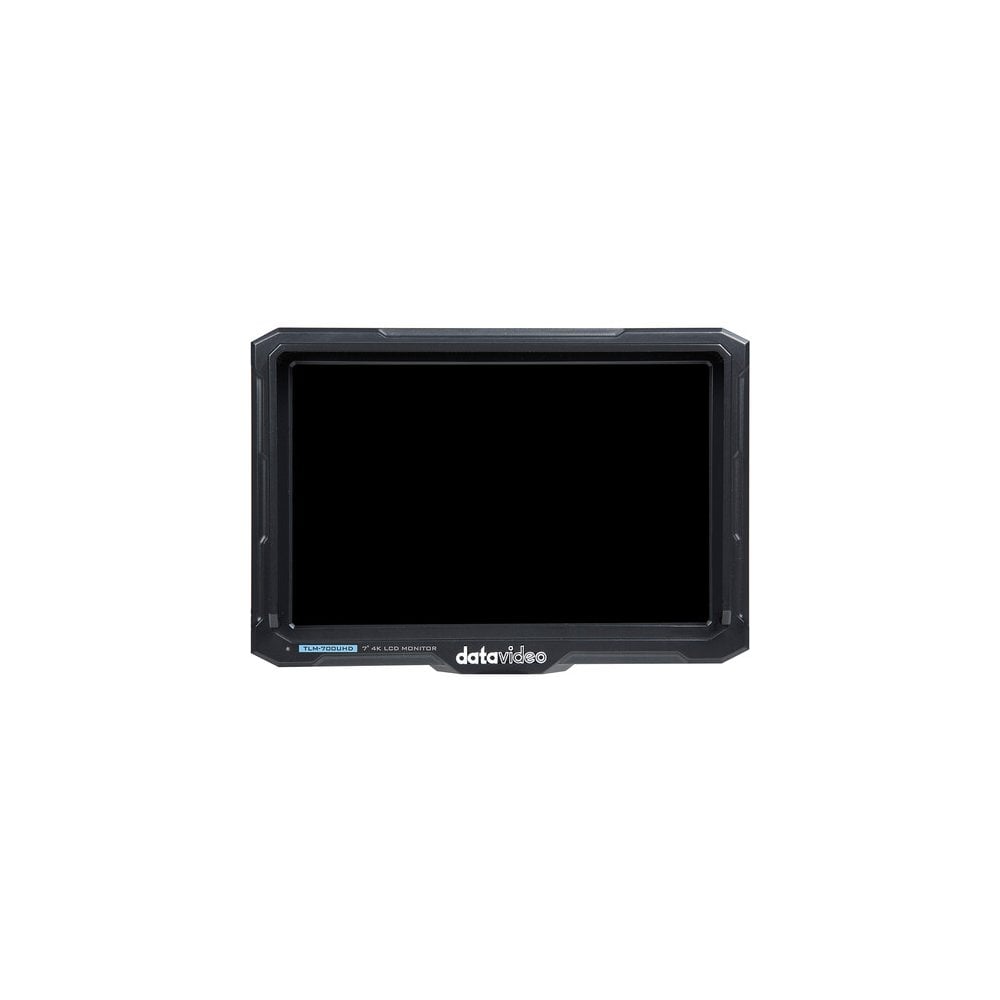

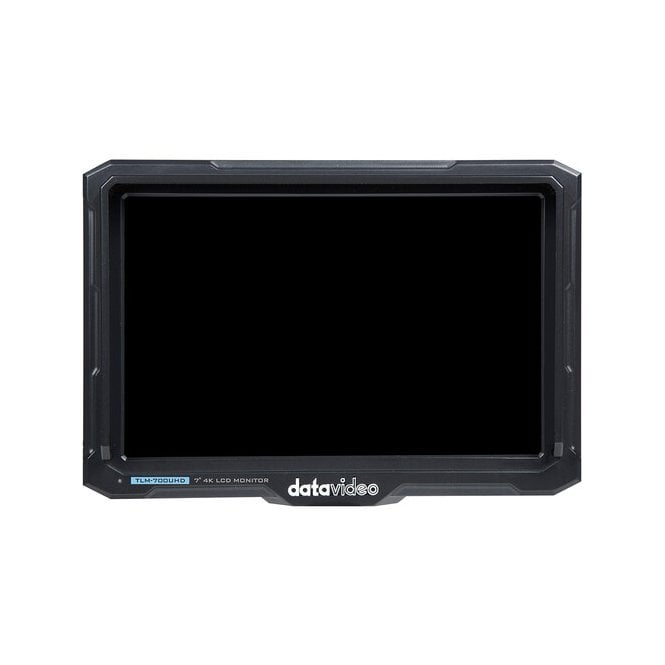

Datavideo TLM-700 UHD 7" LCD Monitor

DATAVIDEO TLM-700 UHD 7" LCD Monitor(DATA-TLM700UHD)

Datavideo TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs. TLM-700UHD has a wide range of professional features including Vertical Aspect, Focus Assist (Peaking), False Colour, Histogram, Exposure, Zoom In, Safety Marker, Vertical Flip, and more.

The built-in speaker and headphone jack have your audio covered. TLM-700UHD can be powered by an adapter or battery on the plate. Users can fix the monitor on top of the camera or the camcorder by using the hot shoe mount. Additionally, the monitor is also compatible with a tripod, arm, and cage by the 75mm VESA on the back of the monitor.

4K 50/60P Amazing Details

Brighter and sharper than ever. Superfine details for the eyes. Supports 4K/3G/HD/ SD 1920x1200 panel resolution.

Compatible with Professional Cameras

Compatible with DSLR cameras, mirrorless cameras, and camcorders.

Foldable Light Hood

The easy accessory provides a better viewing experience. Easy to monitor the screen in the sun with the hood that is designed with an anti-glare inside to prevent reflections.

IPS High Resolution Faithful Interpretation

Experience more vivid colours and details with the Full HD IPS panel. You can now have a perfect 170° horizontal & vertical wide viewing angle.

Fast and Accurate Focus Peaking

The red/green/blue peaking profile helps users instantly determine proper focusing. Peaking zones can be shown during shooting, recording, and playback.

False Colour Display

Exposure analysis lets users see if the brightness is too strong in certain regions of the video.

Support Multiple Display while Monitoring

HDMI 4K input and output Loop-through output to other display devices synchronously, allowing multi-display device sharing the same image.

Colour Field Checking

Provides monochrome, red, green, and blue-only mode for easy colour recognition and correction.

White Balance Setting

Provides 6500K / 7500K / 9300K / Customize different settings to monitor the precise colour of the video.

F1 Configurations Simplied Workflow

F1 User-definable buttons setting. Quickly set F1 User-definable buttons setting to provide you a quick set-up. F1 functions including Center Marker, Aspect Marker, Check Field, Underscan, Scan, Aspect, DSLR, Freeze, Peaking, False Colour, Exposure, Histogram, Level Meter.

Flexable Power Supply

Power is available by adapter or battery

Screen Flip Function

Supports both vertical and horizontal rotation. Compatible with tripods, arms, and cages. Convenient for viewing from multiple angles

Panel Type IPS-Type LCD

Display Size 7.0" / 17.8 cm

Aspect Ratio 16:10

Viewing Angle Horizontal: 170° (85/85)

Vertical: 170° (85/85)

Touchscreen No

Maximum Brightness 450 nits / cd/m2

Contrast Ratio 1000:1

HDR Compatibility None

Pixels Per Inch (ppi) 323 ppi

Real-Time LUT Monitoring No

Image Controls Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Waveform, Zebra

Video I/O 1 x HDMI 2.0 Input

1 x HDMI 2.0 Loop Output

HDCP Support Yes, Version 2.2

Embedded Audio HDMI: 2-Channel

Audio I/O 1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker 1 x 2 W

Power I/O 1 x Barrel (12 VDC) Input

Other I/O 1 x Mini-USB 2.0 Input

Wi-Fi None

Format Support

Video Format HDMI

DCI 4K: 60/59.94/50/30/29.97/25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K: 60/59.94/50

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50/30/29.97/25/24/23.98

576p: 50

576i: 50

480p: 60/59.94

480i: 60/59.94

Power

Battery Type 1 x L-Series

Power Consumption 12 W (Maximum)

Mounting

Mounting 1 x Cold Shoe

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C

General

Dimensions 71.7 x 50.8 x 14.6" / 182 x 129 x 37 cm, Including Battery Plate

Weight 10.6 oz / 300 g, Including Battery Plate

Packaging Info

Package Weight 2.185 lb

Box Dimensions (LxWxH) 8.7 x 6.2 x 3.9"

In the Box

Datavideo 7" 4K HDMI On-Camera LCD Monitor

L-Series Battery Plate

Shoe Mount

Sun Hood

HDMI Cable

12 VAC Power Adapter
