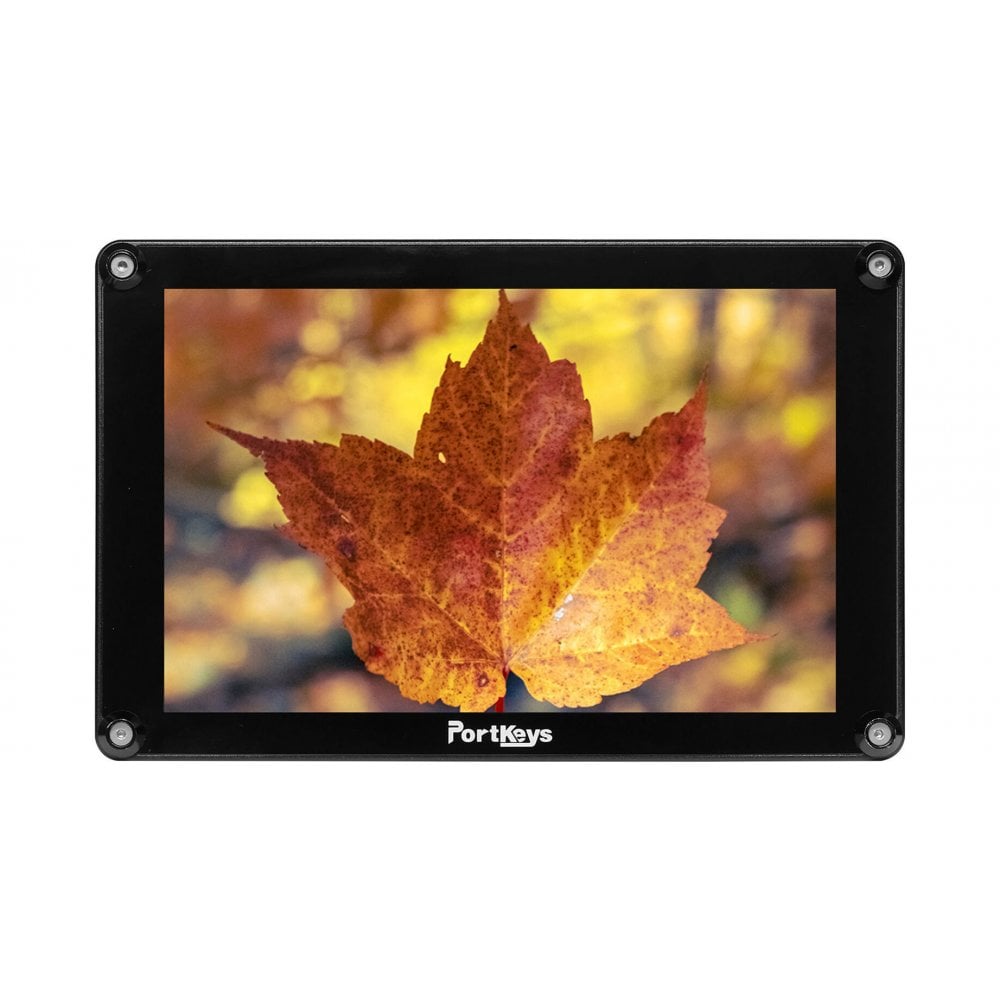

Portkeys HS8 8-inch Director Monitor

Portkeys PK-HS8 (PK/HS8, PK_HS8, PKHS8, PK HS8) HS8 8-inch Director Monitor

Portkeys HS8 – 8" High-Bright Director Monitor with Rugged Build and Wireless Receiver Integration

The Portkeys HS8 is a robust and feature-rich 8-inch director monitor, built to meet the demanding needs of filmmakers and video professionals. With its rugged all-aluminum housing and removable protective display glass, the HS8 is engineered to endure challenging shooting environments while delivering high-performance monitoring.

Compact and practical, the HS8 measures 208 x 133.7 x 50.5mm and weighs just 675g (1.48 lbs)—perfect for directors, focus pullers, camera crews, or clients to share on set.

Stunning Visual Performance

The monitor boasts a 1920 x 1200 resolution, 10-bit (8+2 FRC) color depth, 1,100 nits brightness, and a 1000:1 contrast ratio, making it suitable for both studio and outdoor use. Its color-accurate display ensures rich detail without banding, right out of the box.

Professional Connectivity & I/O

All input/output ports are neatly recessed at the bottom for added protection. Key video ports include:

1x 4K DCI 60p HDMI input

1x 3G-SDI 1080p60 input

1x HDMI output

1x 3G-SDI output

Both outputs support up to 1080p60 and feature cross-conversion (HDMI to SDI and vice versa), with 3D LUT output through both.

Additional I/O features:

• 3.5mm headphone jack
• USB-A port for LUTs and firmware updates
• Locking 7–20V DC input (via included D-Tap to 5.5mm barrel cable)

Dual Power Options

At the rear, the HS8 includes a dual Sony NP-F battery plate with hot-swap capability, providing up to five hours of runtime with two NP-F970 batteries. It also supports extended use via external DC power input.

Unique Power Output Feature

A standout feature of the HS8 is its rotatable, removable NP-F dummy battery power output, allowing you to directly power a wireless video receiver (8V/10W passthrough). This patented design lets you rotate the dummy battery 360° tool-free, using a large yellow knob—ideal for keeping your setup clean and integrated.

Mounting Flexibility

Equipped with VESA 100 x 100 mounting holes, the monitor easily mounts to C-stands or light stands using standard monitor arms. Additionally, four 1/4"-20 threaded mounting points with locating pins allow for versatile rigging, tripod mounting, or direct attachment of side handles.

Intuitive Controls

On the top panel:

4 customizable function buttons

Power switch

Input switch (HDMI/SDI)

Menu scroll wheel with push function

Thanks to its large 8" screen, the HS8 can display multiple monitoring tools simultaneously with partial overlays for quick access.

Advanced Monitoring Tools

• The HS8 comes packed with tools to ensure precise monitoring and decision-making on set, including:
• 3D LUT monitoring and output via SDI/HDMI
• LUT loading via USB-A
• Waveform, RGB & Luma Histograms
• Adjustable Zebra
• Customizable False Color (13 presets including ARRI)
• Anamorphic De-Squeeze (1.33x, 1.5x, 2.0x + custom ratios 0.25x–4.0x)
• Focus Assist (Peaking & Zoom)
• SDI Level A/B auto output and progressive-to-interlaced conversion
• Framing tools: crosshair, check field, guides, grids, crop
• Audio meters

Extensive display settings: black level, backlight, contrast, sharpness, chroma, tint, HDR HLG, OSD Flip, color temp

• Size: 8"
• Dimensions: 208mm × 133.7mm × 50.5mm
• Viewing Angle: 178°H / 178°V
• Brightness: 1100 nits
• Resolution: 1920 × 1200
• Contrast Ratio: 1000:1
• Weight: 675g
• Color Depth: 10-bit (8+2 FRC)
• Material: Aluminum alloy
• Input Voltage: DC 7–20V
• Maximum Power Consumption: 20W
• Video Signal Input: 3G SDI, 4K60p HDMI
• Video Signal Output: 3G SDI, HDMI
• Headphone Jack: 3-section 3.5mm
• Menu Languages: Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish
• Signal Conversion: HDMI ↔ SDI conversion
• Supported Battery Models: NP-F550 / NP-F750 / NP-F970
• USB-A: For firmware updates and LUT loading
• Fan: Yes
• Operating System: Portkeys OS

In The Box

• Portkeys HS8 8-inch Director Monitor
• D-Tap to locking DC power cable
• USB key
• Screen cleaning cloth
• 4x M3 Allen screws & Allen key
• 4 x Cup Head Gasket
• Micro-USB Flash Drive
