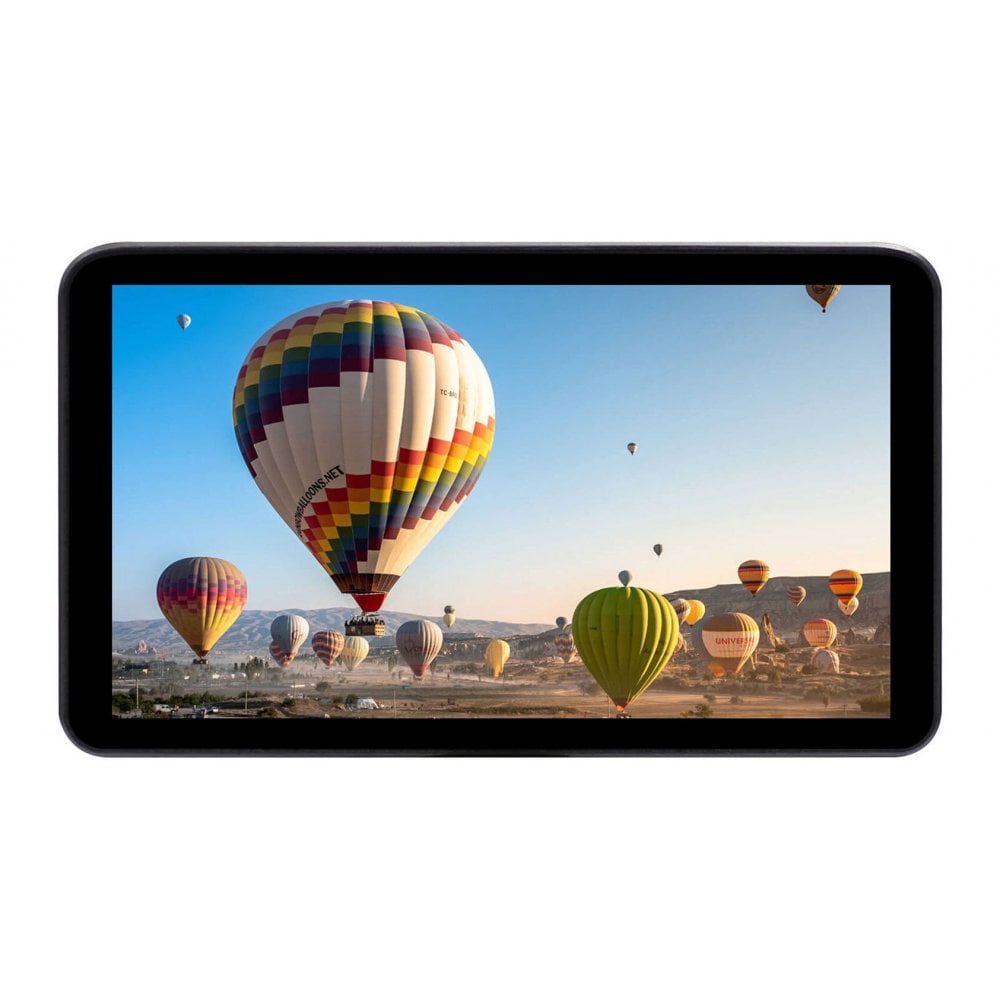

Portkeys LH7H 7-inch Touchscreen Monitor

Portkeys PK-LH7H (PK/LH7H, PKLH7H, PK LH7H, PK_LH7H) LH7H 7-inch Touchscreen Monitor

The Portkeys LH7H is a feature-rich, entry-level 7-inch monitor designed for filmmakers and content creators seeking a daylight-viewable solution. Weighing just 245g (8.6oz) without battery, its lightweight yet durable construction is made from Polycarbonate and ABS. The unit includes four user-assignable function buttons and multiple 1/4”-20 mounting points, making it easy to integrate into any camera or rig setup.

With a peak brightness of 1,000 nits, the LH7H ensures excellent visibility even in bright outdoor environments. The 10-bit (8+2 FRC) Full HD 1920 x 1080 display offers accurate color reproduction with a wide viewing angle and a 1000:1 contrast ratio. It supports 4K HDMI input (up to 4K DCI 24p, 4K UHD 30p, and 1080p 60p) and Full HD HDMI output, with 4K-to-1080p oversampling for enhanced image clarity and detail.

Powering the LH7H is simple and flexible. A built-in Sony NP-F battery plate offers hours of operation with low power consumption of just 8W. For continuous power on professional rigs, a 7-24V 5.5mm barrel input is available. The multi-functional USB-A port lets you load custom 3D LUTs, update firmware, and functions as a 5V/2A power input/output.

Despite its compact size, the LH7H is loaded with professional monitoring features:

• 3D LUT monitoring and HDMI LUT output, with easy USB loading via the included USB drive
• ARRI-style False Color and customizable user-defined false color settings with adjustable IRE levels
• Advanced Peaking algorithm with Peaking Frame to keep your camera UI uncluttered
• Cropping tool for targeted image zoom
• Framing tools, including guides, aspect masks, grids, and auto image flip
• Image Capture & Overlay for shot matching and continuity checks
• Anamorphic de-squeeze for 1.33x, 1.5x, 2.0x, and custom ratios (0.25–4.0x)
• Stretch Leg function for vertical shooting, with HDMI output support
• Full control over sharpness, chroma, brightness, backlight, tint, and color temperature settings

The Portkeys LH7H is a reliable, full-featured monitoring companion built to meet the needs of modern video production – without weighing you down.

• Screen Size: 7″
• Dimension: 176.2*103.8*18.4mm
• Viewing Angle: 85/85/85/85
• Brightness: 1000nit
• Resolution: 1920*1080
• Contrast Ratio: 1000:1
• Weight: 245g
• Color Gamut: Rec.709
• Maximum Power: 8W
• Material: PC+ABS
• Input Voltage: 7-24V
• Fan: Quiet

In The Box

• 1x Portkeys LH7H 7-inch Touchscreen Monitor
• 1x Safety Box
• 1x Micro USB Flash Drive
• 1x A to A HDMI Cable
• 1x Screen Cleaning Wipe
• 2x Screen Protector
• 1x MH-2 Mount
