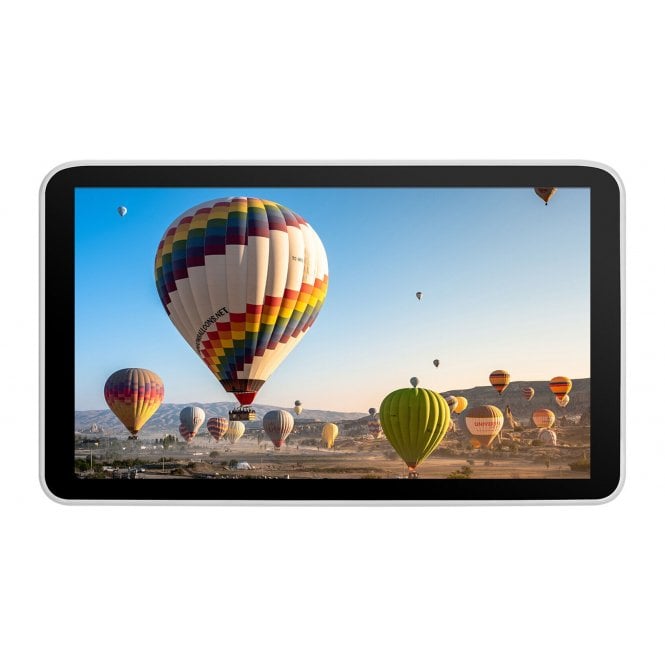

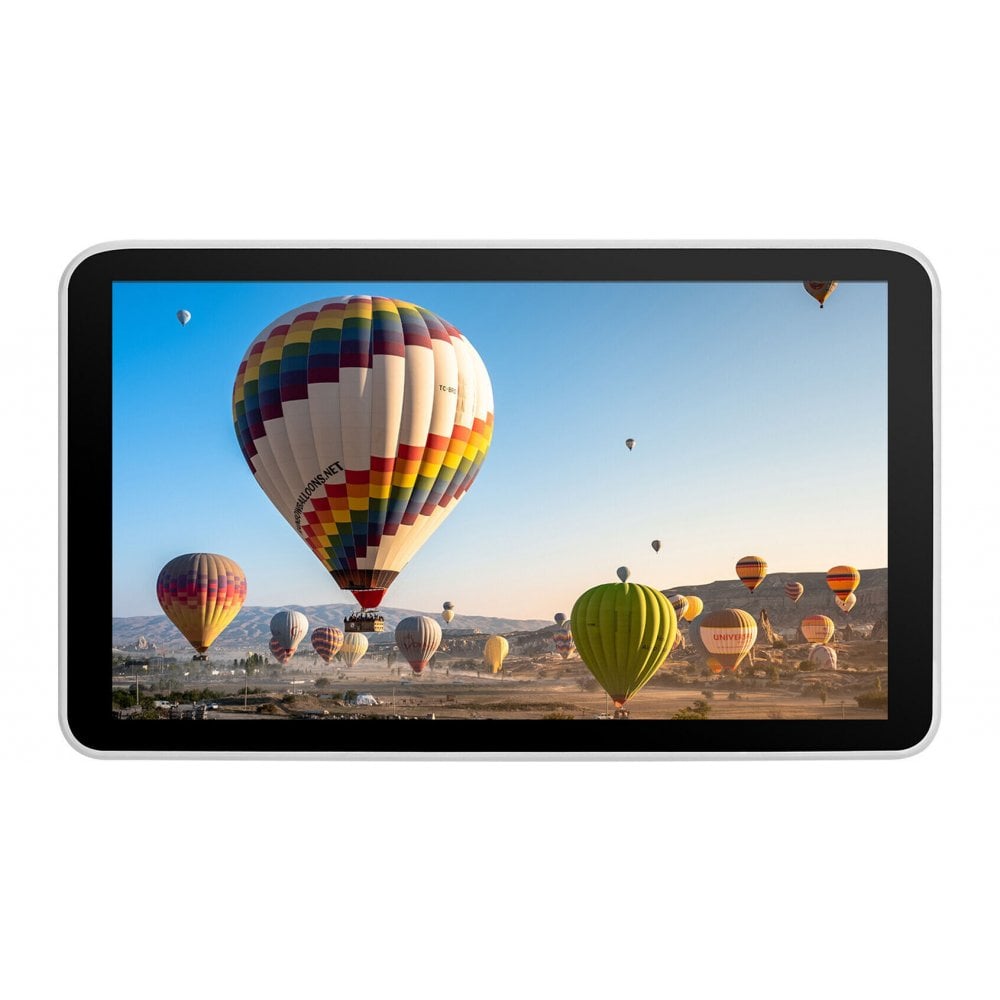

Portkeys LH7P 7" inch High-Bright Touchscreen Monitor - White

Portkeys PK-LH7P-W (PK/LH7P-W, PK/LH7P/W, PKLH7PW, PK LH7P W) LH7P 7" inch High-Bright Touchscreen Monitor -  White

The Portkeys LH7P is an affordable 7-inch monitor designed for Sony and Blackmagic Design users, offering wireless camera control and professional-grade monitoring features. Built from durable yet lightweight ABS and polycarbonate, it weighs just 245g (8.6oz) without a battery—ideal for portable rigs and field use.

With a daylight-viewable touchscreen, four customizable function buttons, and three 1/4"-20 mounting points (bottom, left, and right), the LH7P integrates seamlessly into any camera setup, enhancing your efficiency on set.

The LH7P delivers a Full HD 1920 x 1080 resolution, 10-bit (8+2 FRC) color depth, and 1000:1 contrast ratio, with a wide viewing angle and 1,000 nits of brightness—perfect for outdoor visibility. It supports 4K HDMI input (DCI 24p, UHD 30p) and Full HD 1080p up to 60p, with 4K-to-1080p oversampling for improved image detail. A Full HD HDMI output is also included.

Power options include a built-in Sony NP-F battery plate and a 5.5mm barrel input (7–24V) for continuous external power. With only 9W of power draw, the monitor can run for hours on a single battery.

Professional Monitoring Tools:

3D LUT support with HDMI output; load custom LUTs via the USB port and included USB key.

False Color modes including ARRI and customizable IRE values.

Advanced Peaking algorithm with Peaking Frame to maintain a clear camera UI.

Cropping, Framing Guides, Aspect Markers, Grids, and Auto Image Flip.

Image Capture & Overlay: save and overlay screenshots for continuity or shot reference.

Anamorphic De-Squeeze: standard (1.33x, 1.5x, 2.0x) and custom (0.25–4.0x) ratios.

Stretch Leg Tool for vertical shooting, with HDMI output support.

Manual Adjustments: sharpness, chroma, brightness, backlight, tint, and color temperature.

Built-in Wireless Camera Control:

The LH7P includes a built-in 2.4GHz WiFi module (no external antenna required) for wireless control of select Sony cameras, such as the A7S III, A7 IV, A7R V, A1, FX3, FX30, ZV-1, and more. Adjust ISO, aperture, shutter, zoom, and frame rate directly on the touchscreen, start/stop recording, and tap to focus.

A built-in Bluetooth module allows camera control of Blackmagic Design BMPCC 4K, 6K, and 6K Pro models.

Note: Wireless camera control refers only to settings and triggering. Video signal must still be transmitted via HDMI.

• Screen Size: 7″
• Dimension: 176.2*103.8*18.4mm
• Viewing Angle: 85/85/85/85
• Brightness: 1000nit
• Resolution: 1920*1080
• Contrast Ratio: 1000:1
• Weight: 245g
• Color Gamut: Rec.709
• Maximum Power: 9W
• Antenna: 2.4G
• Fan: Yes
• Material: PC+ABS
• Input Voltage: 7-24V

In The Box

• Portkeys LH7P 7" inch High-Bright Touchscreen Monitor -  White
• Micro-USB Flash Drive
• HDMI Cable
• Cleaning Cloth
• Storage Box
