Lilliput 10.1 Inch 1500nit 3G-SDI Touch Control Camera Monitor

Lilliput HT10S (HT/10S, HT-10S, HT 10S, HT_10S) 10.1 Inch 1500nit 3G-SDI Touch Control Camera Monitor.

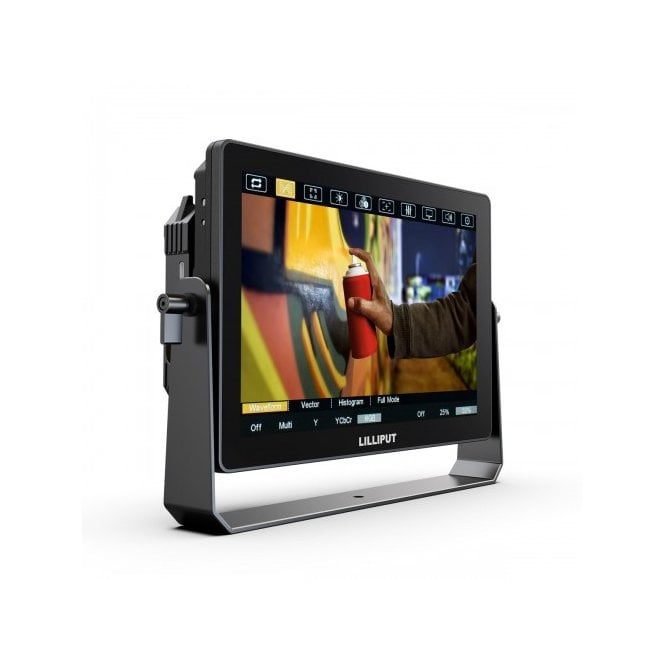

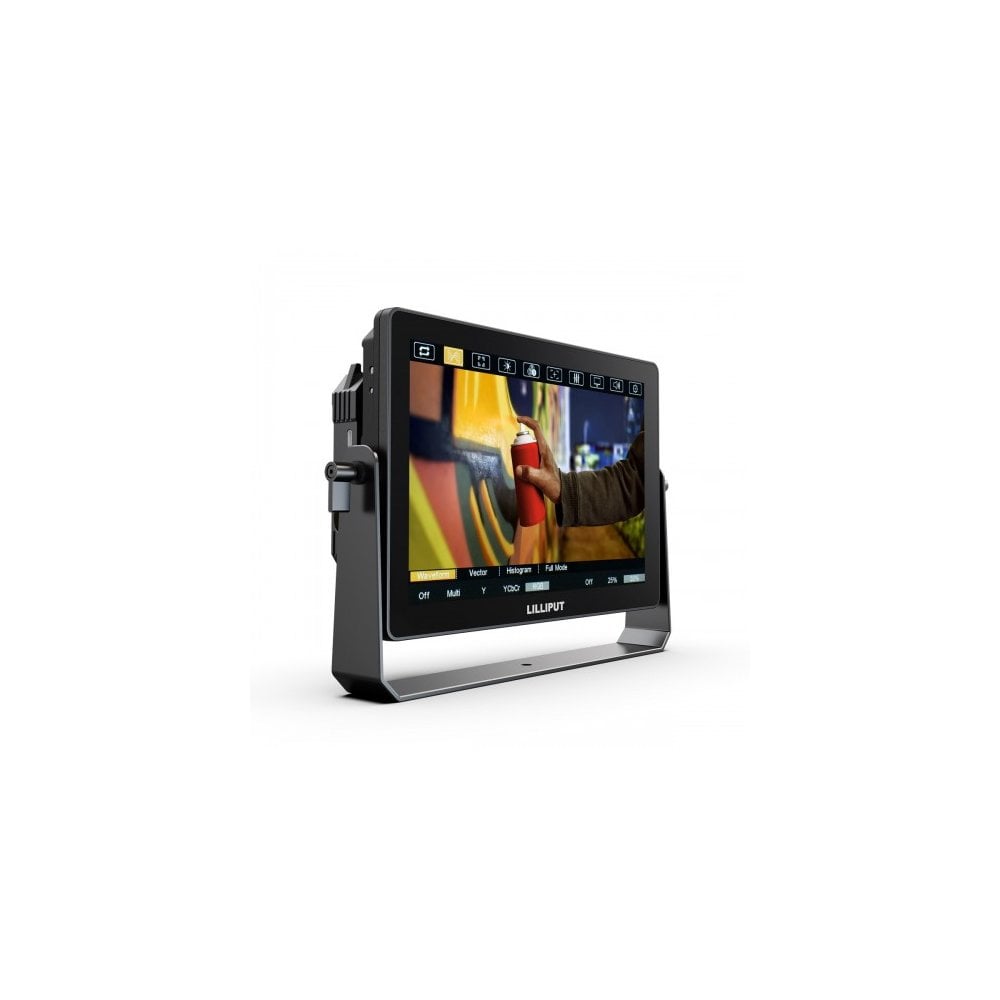

Lilliput HT10S 10.1" Ultra Bright On-Camera Monitor

The Lilliput HT10S is a high-precision on-camera monitor built for outdoor photography and filmmaking. Its ultra-bright 1500-nit LED panel ensures clear, vivid visuals even in direct sunlight — ideal for demanding field environments.

Equipped with touchscreen functionality, the HT10S allows you to control your camera’s menu system directly from the display using the included LANC cable. It also supports advanced imaging features like HDR10+ and 3D LUTs (Look-Up Tables), providing enhanced color accuracy and dynamic range for professional-grade monitoring on set.

Display

• Aspect Ratio: 16:10
• Brightness: 1500 cdm²
• Colour Space: (Original) 125% BT.709 / 92.5% DCI P3
• Contrast Ratio: 1000:1
• Resolution: 1920 x 1200
• Touch Panel: Capacitive Touch
• Viewing Angle: 170° / 170°
• HDR: HLG; ST2084 300/1000/10000
• Screen Size: 10.1" LCD

Input

• SDI Video Input: 3G-SDI x1
• HDMI Video Inputs: 1x HDMI 2.0

Connections

• Audio Output: 1x Speaker, 1x HDMI (8ch 24-bit), 1x Ear Jack 3.5mm-2ch-48kHz 24-bit
• SDI Video Output: 1x 3G-SDI
• HDMI Video Output: 1x HDMI 2.0

Formats

• SDI Formats: SDI - 1080p 24/25/30/50/60 - 1080pSF 24/25/30 - 1080i 50/60 - 720p 50/60
• HDMI Formats: HDMI - 1080p 24/25/30/50/60 - 1080pSF 24/25/30 - 1080i 50/60 - 720p 50/60

Size

• Dimensions: 251mm x 170mm x 26.5mm
• Weight: 850g

Power

• Input Voltage: DC 7-24V
• Power Consumption: <=23W

Environment

• Operating Temperature: 0°c to 50°c
• Storage Temperature: -20°c to 60°c

In The Box

• Lilliput HT10S 10.1" High-Bright 1500 cd/m² On-Camera Touchscreen Monitor
• LANC Cable
• Adjustable Shoe Mount
• HDMI Type A to Type D Cable (31.5")
• Sun Hood
• L-Series Battery Plate
