Lilliput 10.1 Inch 4K HDMI Monitor

Lilliput A11 (A/11, A-11, A 11, A_11) 10.1 Inch 4K HDMI Monitor.

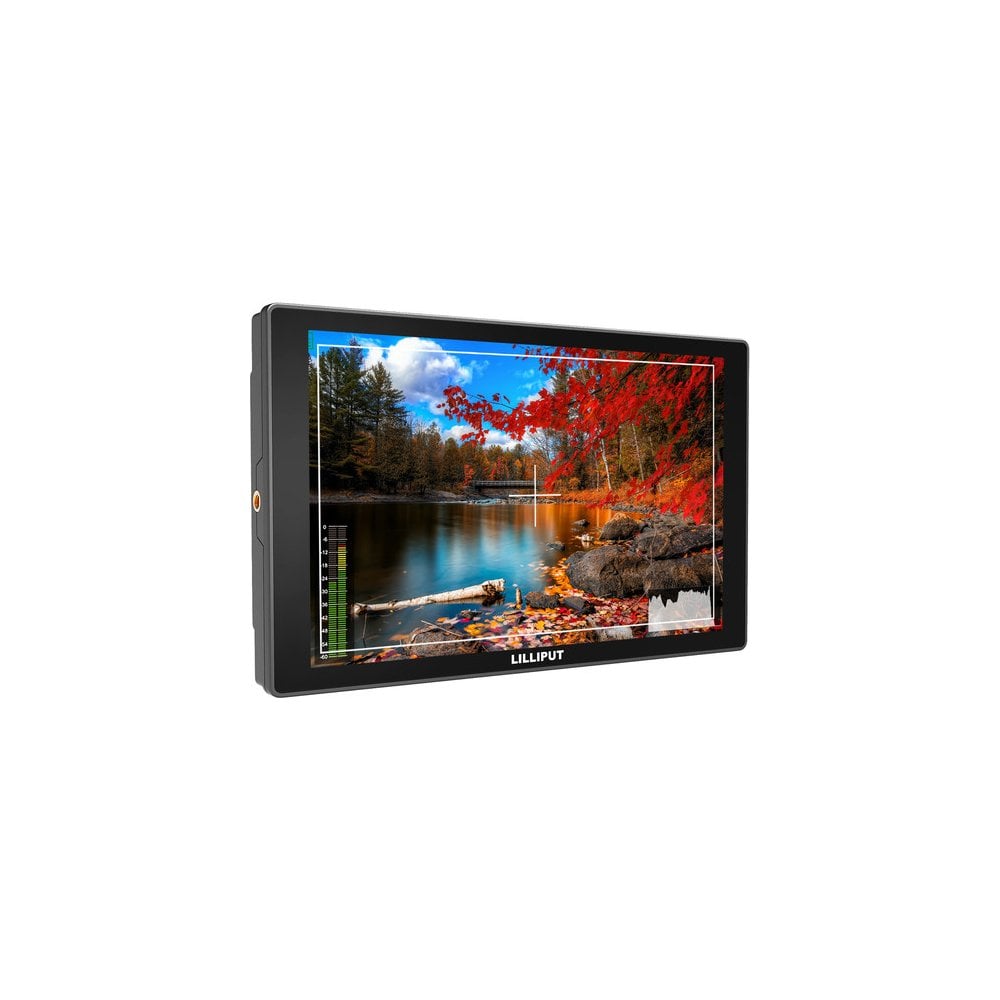

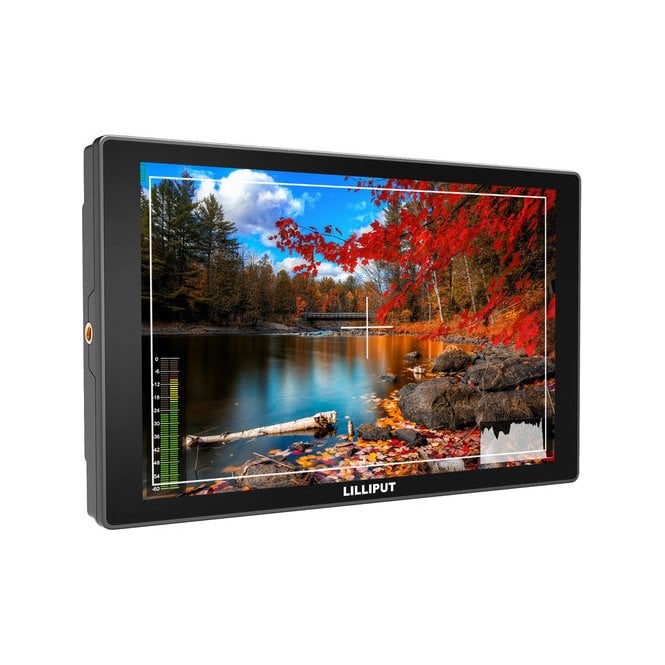

Lilliput A11 10.1" 4K HDMI & 3G-SDI Field Monitor

The Lilliput A11 is a 10.1" field monitor built for professional on-camera use with video, DSLR, and mirrorless cameras. Featuring a Full HD display, it supports 4K HDMI input/output as well as 3G/HD/SD-SDI input and output, plus a VGA input for added versatility. With a 1000:1 contrast ratio and 320 cd/m² brightness, the A11 delivers crisp, detailed images in a wide range of shooting environments.

Packed with professional monitoring tools, the A11 includes focus peaking, histogram, false color, zoom, image flip, selectable aspect ratios, and an audio level meter — everything you need to ensure accurate focus, exposure, and framing. Two customizable function buttons let you quickly access your most-used tools for faster workflow on set.

Power the A11 with a single Sony L-series battery using the included battery plate, or upgrade to V-mount or Gold mount options (sold separately) for longer shoots. Mounting is flexible, thanks to a 1/4"-20 thread and a 75 x 75mm VESA mount pattern for a variety of rigs and setups.

Monitor Specification

• Screen Size (diagonal): 10.1" - (25.65 cm) 8bit IPS
• Aspect Ratio: 16:10
• Native Resolution: 1920x1200
• Dimensions: 252mm x 157mm x 25mm
• HDMI Formats: 4K 30hz // 1080p // 1080i // 720p // 576p // 576i // 480p // 486i
• Power Consumption: <= 13 W
• Viewing Angle (degrees): 175° / 175°
• Brightness Ratio (cd/m2): 320
• Video Inputs: 3G-SDI (input) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) // VGA x1
• Video Outputs: 3G-SDI Loop (Output) x1 // HDMI 1.4b x1 (supports 4K 30 Hz)
• Audio Outputs: Audio Speaker x1 // Audio Ear Jack x1
• Input Power: 12V 1A // Comaptible with DC 24V
• Operating Temperature: 0°c - 50°c
• Mounting Options: Hot Shoe Mount (Supplied) // V-Mount / Anton Bauer mount (Optional) // Gimbal Bracket (Optional) // VESA 75 Stand (Optional)

Dimensions

• Weight (g): 550g

Environment

• Storage Temperature: -20°c to +60°c

In the Box

• Lilliput 10.1" A11 4K HDMI & 3G-SDI Monitor with L-Series Battery Plate
• Sony L-Series Type Battery Plate
• AC Adapter
