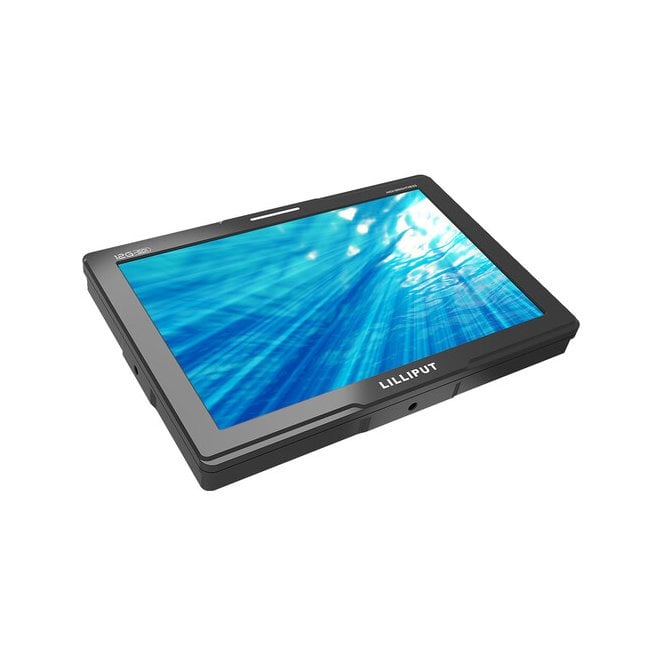

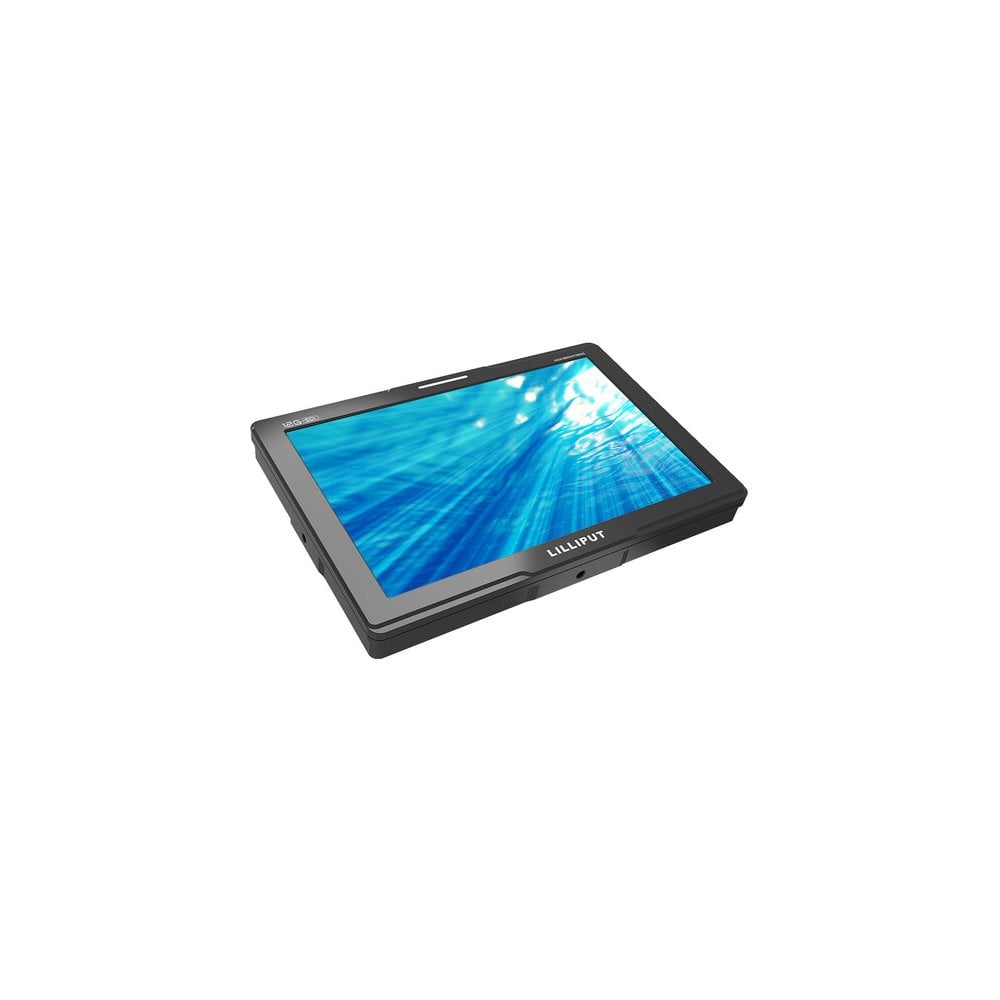

Lilliput 10.1 Inch High Brightness 12G-SDI / HDMI / 4K Monitor

Lilliput Q10 (Q/10, Q-10, Q 10, Q_10) 10.1 Inch High Brightness 12G-SDI / HDMI / 4K Monitor.

The Lilliput Q10 is a high-performance camera-top monitor designed for professional photographers and filmmakers. Featuring an ultra-bright 1500-nit LCD screen, it's ideal for outdoor video and film production where visibility is key.

The 10.1" display offers a native Full HD resolution of 1920×1200 and a 2000:1 contrast ratio, delivering sharp, vibrant image quality.

Equipped with dual 12G-SDI inputs and loop outputs, the Q10 can receive and display two 12G-SDI signals simultaneously using the adjustable picture-in-picture mode. It also supports HDMI 2.0 input with up to 4K at 60Hz, ensuring compatibility with the latest DSLR and cinema cameras.

Display

• Aspect Ratio: 16:10
• Brightness: 1500 nits
• Contrast Ratio: 1000:1
• Display Screen: 10.1"
• Look Up Table Support: 3D LUT .cube Format
• Resolution: 1920 x 1200
• Viewing Angle: 170° / 170°
• HDR: ST2084 300 / 1000 / 10000 / HLG
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User defined

Connections

• Audio: SDI - 16CH, 48Khz, 24-bit : HDMI - 8 CH 24 Bit : Ear Jack - 3.5mm : Built in Speaker x1
• HDMI Video Input: 1x HDMI 2.0 - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50...
• SDI Video Input: 2x 12G SDI - 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080pSF 30/25/24,1080i 60/50, 720p 60/50...

Size

• Dimensions: 251mm × 170mm × 30.5mm
• Weight: 4KG (Shipping Weight)

Power

• Input VoltageL  DC 7-24V
• Power Consumption: <=37W (12V)

Environment

• Operating Temperature: 0°c to 50°c
• Storage Temperature: -20°c to 60°c

In The Box

• Lilliput Q10 10.1" Ultrahigh Brightness On-Camera Monitor with 2 x 12G-SDI, 1 x HDMI (1500 cd/m²)
• 12 VDC, 3A Adapter
• U-Shaped Mounting Bracket
• Tally Cable with Bare End
• 75mm VESA Pattern Battery Plate
• Carry Case
