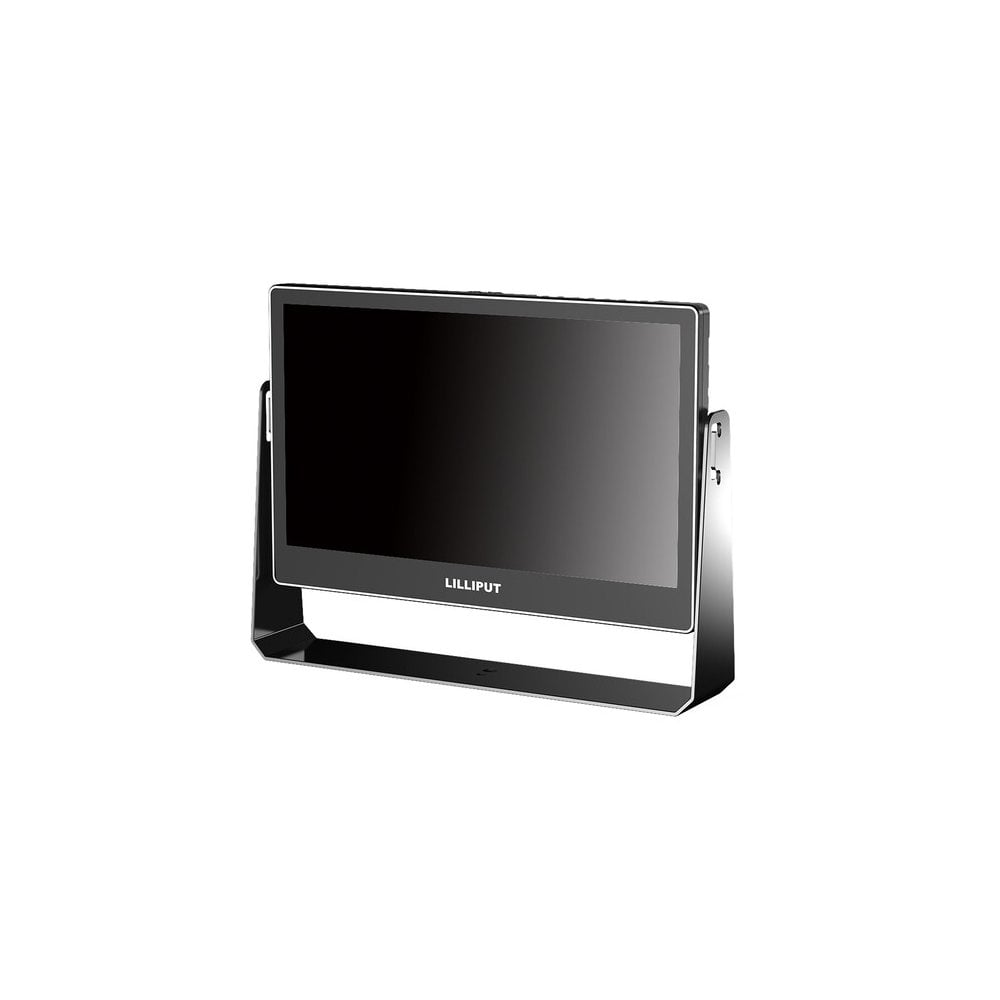

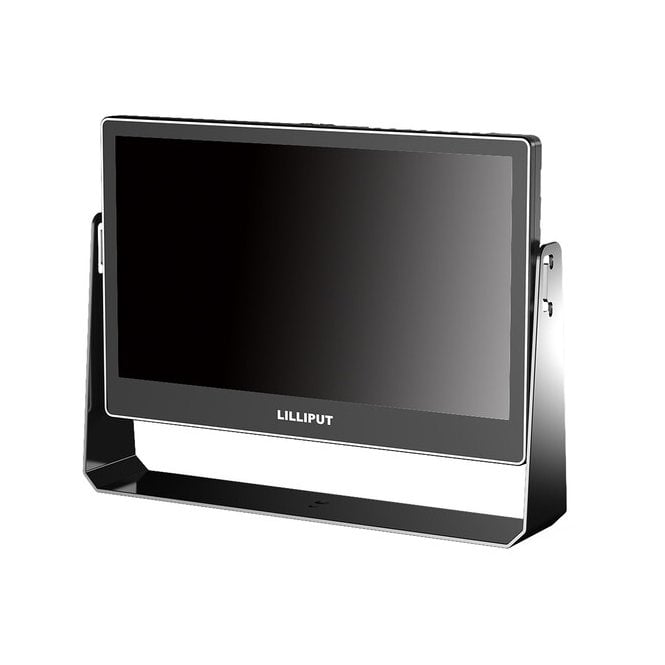

Lilliput 13.3 Inch OLED Monitor

Lilliput A13 (A/13, A-13, A 13, A_13) 13.3 Inch OLED Monitor.

The Lilliput A13 is a 13.3" 4K OLED broadcast monitor designed for studio professionals who demand precision and clarity. With a native resolution of 3840 x 2160, it supports UHD 4K60 signals and automatically scales all incoming video to fit its ultra-high-definition display. The OLED screen delivers exceptional image quality, featuring a 100,000:1 contrast ratio, 170° wide viewing angle, and 400 cd/m² brightness.

Connectivity is comprehensive, with four HDMI 2.0 inputs, a 3G-SDI input and loop-through output, plus a DisplayPort input. The A13 supports HDR, Rec.709, and DCI-P3 color spaces, with precise color calibration for accurate monitoring in professional workflows.

Additional features include quad-split multiview, picture-by-picture (PbP), picture-in-picture (PiP), built-in stereo speakers, and a headphone jack for audio monitoring.

Power options are flexible: use the included 12V DC adapter for studio setups, the supplied VESA plate for L-series batteries, or add an optional V-mount plate for on-the-go production.

• Display Size: 13.3" / 33.8 cm
• Native Resolution: 3840 x 2160
• Touchscreen: No
• HDR Support: Yes
• Video I/O: 1x BNC (3G-SDI) Input, 1x BNC (12G-SDI) Loop Output, 1x HDMI 2.0 Input, 3x HDMI 1.4b Input
• 1x DisplayPort (Unspecified Signal) Input
• Media/Memory Card Slot: No
• Video Format: DisplayPort/HDMI, UHD 4K: 60/59.94/50/30/29.97/25/24/23.98, 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 30/29.97/25/24/23.98, 1080i: 60/50, 720p: 60/50
• SDI: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 30/25/24, 1080i: 60/50, 720p: 60/59.94/50
• Battery    : 1x L-Series Mount on Included, Interchangeable Plate
• Power Consumption: 20 W

Power

• Input Power: 7 to 24 VDC
• Battery: 1x L-Series Mount on Included, Interchangeable Plate
• Power Consumption: 20 W

Mounting

• Tripod/Accessory Mounting: 3x 1/4"-20 Female

General

• Environmental Resistance: No
• Operating Conditions: 32 to 122°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Dimensions: 12.6 x 8.2 x 1" / 320 x 208 x 26.5 mm
• Weight: 2.54 lb / 1.15 kg

In The Box

• Lilliput A13 13.3" 4K HDMI/3G-SDI OLED Broadcast Monitor
• VESA L-Series Battery Plate
• 12V Power Adapter
• Sun Hood
• Gimbal Bracket
• HDMI Cable (31.5")
