Lilliput 15.6 Inch 4K HDMI 2.0 / 12G-SDI Monitor

Lilliput BM150-12G (BM150/12G, BM150 12G, BM15012G, BM150_12G) 15.6 Inch 4K HDMI 2.0 / 12G-SDI Monitor.

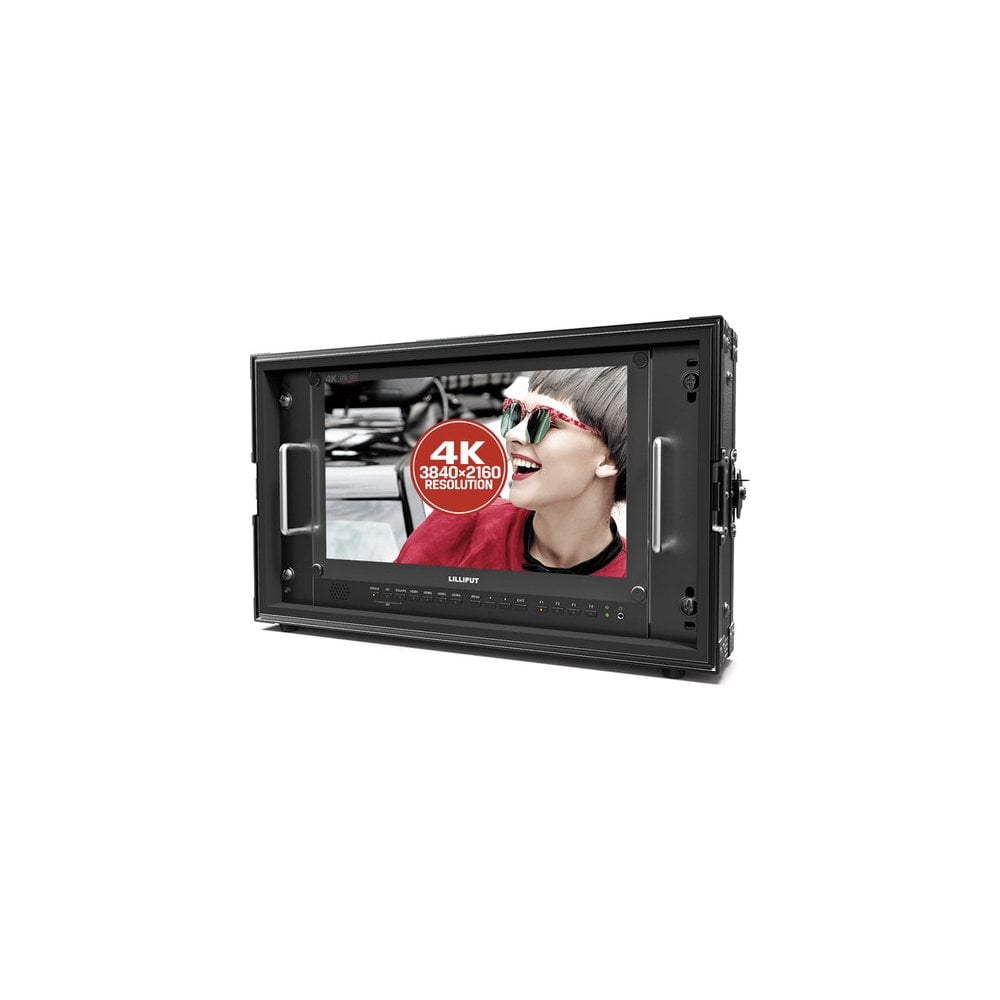

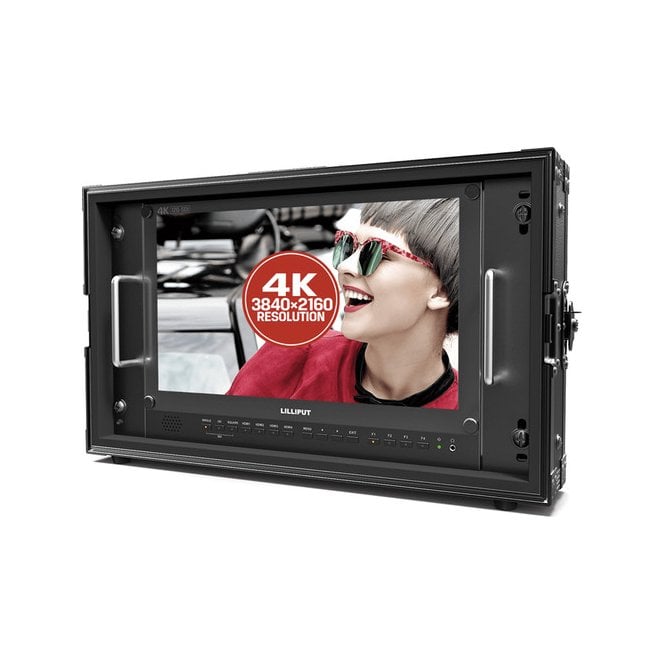

Lilliput 15.6" 12G-SDI 4K IPS Monitor

The Lilliput 15.6" 12G-SDI 4K IPS Monitor delivers stunning UHD 4K resolution (3840 x 2160) on a vibrant IPS panel with 330 cd/m² brightness, a 1000:1 contrast ratio, and a wide 176° viewing angle—ideal for both field and studio environments.

Equipped with a built-in V-mount battery plate, this monitor ensures extended runtime for on-location shoots. Its compact form factor fits neatly into the included protective carry case for easy transport, and at just 6 RU tall, it can also be rack-mounted for permanent studio setups.

Connectivity is robust and flexible, with dual 12G-SDI and 3G-SDI inputs featuring loop-through outputs, one HDMI 2.0 input, and three HDMI 1.4 inputs. The monitor supports multiple SDI configurations including 12G-SDI single-link, dual-link, and 3G-SDI quad-link, making it compatible with a wide range of professional workflows. A tally input is also included for production environments.

Advanced monitoring tools include quad-view display, false color, focus peaking, check field, image flip, overscan/underscan, image freeze, aspect ratio selection (16:9), center and screen markers, and adjustable color temperature—offering the precision and control demanded in professional broadcast and film production.

Monitor Specification

• Screen Size (diagonal): 15.6"
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160
• Viewing Angle (degrees): 176/176
• Brightness Ratio (cd/m2): 330
• Contrast Ratio: 1000:1
• Backlight: LED
• Video Inputs: 12G-SDI x 2 (backward compatible to 3G-SDI), 3G SDI x2,HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
• Video Outputs: 3G-SDI x 1
• Audio Outputs: Speaker x 2, 3.5mm Jack x 1
• Input Power: DC12V - 24V (XLR)
• Operating Temperature: -20 degrees - 50 degrees

Dimensions

• Height (mm): 267 (305 in case)
• Width (mm): 389 (524 in case)
• Depth (mm): 38 (170 in case)
• Weight (g): 12kg with case (3.4kg without case)

In The Box

• Lilliput 15.6" 12G-SDI 4K IPS Monitor (V-Mount, 6 RU)
• Folding Sunshade
• Battery Plate Bracket
• V-Mount Plate
• Power Adapter
• Fixing Belt
• Tally Connector
• Carry Case
