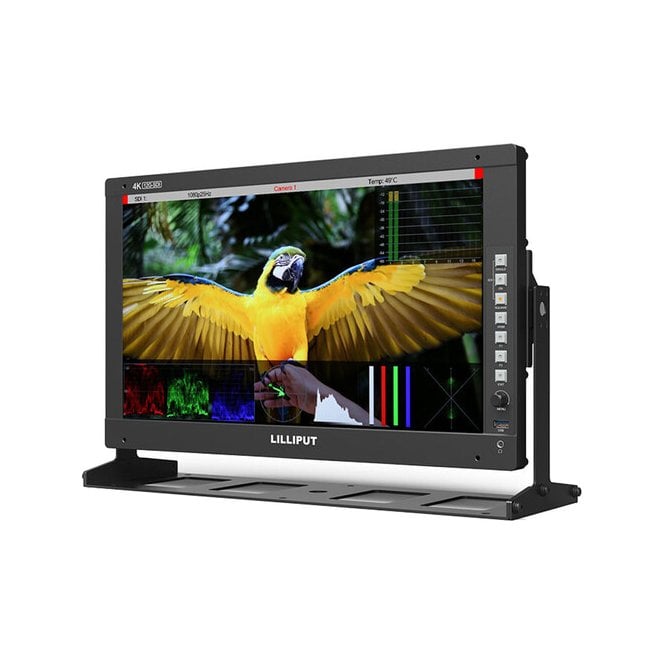

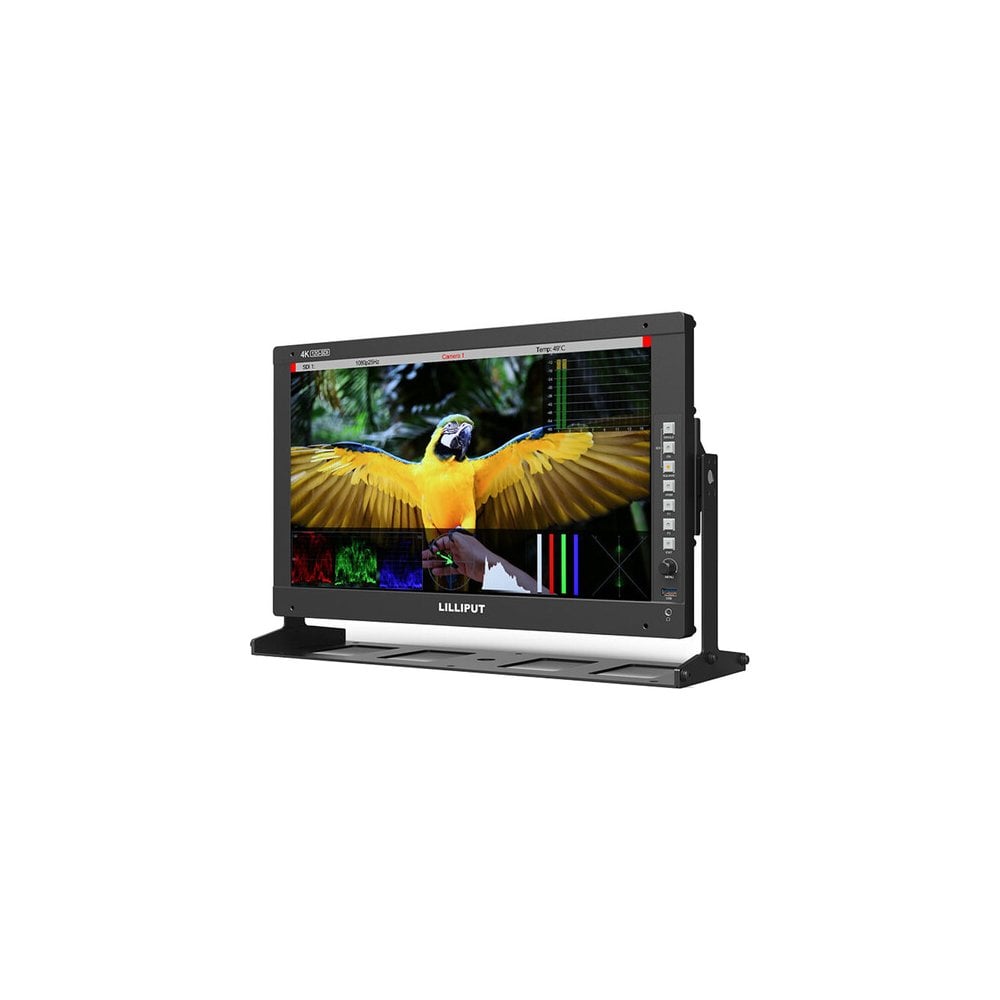

Lilliput 17.3 Inch 12G-SDI Broadcast/Production Monitor

Lilliput Q17 (Q/17, Q-17, Q 17, Q_17) 17.3 Inch 12G-SDI Broadcast/Production Monitor.

The Lilliput Q17 is a 17.3" 12G-SDI/HDMI HDR production monitor with a Full HD 1920 x 1080 resolution display, capable of supporting UHD 4K input and loop-through output. Its high-quality panel offers a 1200:1 contrast ratio, 300 cd/m² brightness, and a wide 170° viewing angle for consistent visuals from almost any position.

Designed for professional field and studio use, the Q17 includes a built-in Gold mount battery plate for extended operation when AC power isn’t available. Connectivity options include one HDMI 2.0 input, two 12G-SDI inputs, two 3G-SDI inputs, and full loop-through outputs. It also supports 12G-SDI single-link, dual-link, and 3G-SDI quad-link configurations, with an expansion slot for an optional 12G SFP+ module.

Advanced features such as HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control, audio vector scopes, and level monitoring ensure precise image evaluation. Display tools include 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, markers, and adjustable color temperature.

The Q17 comes complete with multiple mounting options, a USB drive, acrylic screen protector, and a durable carrying case—ready for any professional production setup.

• Display Size: 17.3" / 43.9 cm
• Native Resolution: 1920 x 1080
• Touchscreen: No
• HDR Support: Yes
• Video I/O: 2x BNC (12G-SDI) Input, 2x BNC (3G-SDI) Input, 1x HDMI 2.0 Input, 2x BNC (12G-SDI) Loop Output, 2x BNC (3G-SDI) Loop Output, 1x HDMI 2.0 Loop Output
• Video Format: SDI - UHD 4K: 60/50/30/25/24, 1080p: 60/50/30/25/24, 1080PsF: 30/25/24, 1080i: 60/50, 720p: 60/50. HDMI -UHD 4K: 60/50/30/25/24, 1080p: 60/50/30/25/24, 1080i: 60/50, 720p: 60/50
• Battery: 1x Gold Mount on Fixed Plate
• Power Consumption: 26.5 W

Display

• Panel Type: IPS-Type LCD
• Display Size: 17.3" / 43.9 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle: Horizontal: 170°
• Vertical: 170°
• Touchscreen: No
• Maximum Brightness: 300 nits / cd/m2
• Contrast Ratio: 1200:1
• HDR Support: Yes
• Color Gamut: 100% Rec. 709, 100% SMPTE-C, 100% EBU
• LUT Support: Yes
• Image Controls: Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Power

• Input Power: 12 to 24 VDC
• Battery: 1x Gold Mount on Fixed Plate
• Power Consumption: 26.5 W

Mounting

• VESA Mounting-Hole Pattern: 75 x 75 mm, 100 x 100 mm

General

• Operating Conditions: 32 to 82°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Dimensions: 17.1 x 10.4 x 2.1" / 434 x 263 x 54 mm
• Weight: 7.1 lb / 3.2 kg

In The Box

• Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor
• 15 VDC Power Adapter with AC cord
• VESA Mount Plate
• Gold Mount Battery Plate
• Carrying Case
• 2 x Base Bracket
• Tilt Bracket
• USB Flash Drive
• Acrylic Screen Protector
