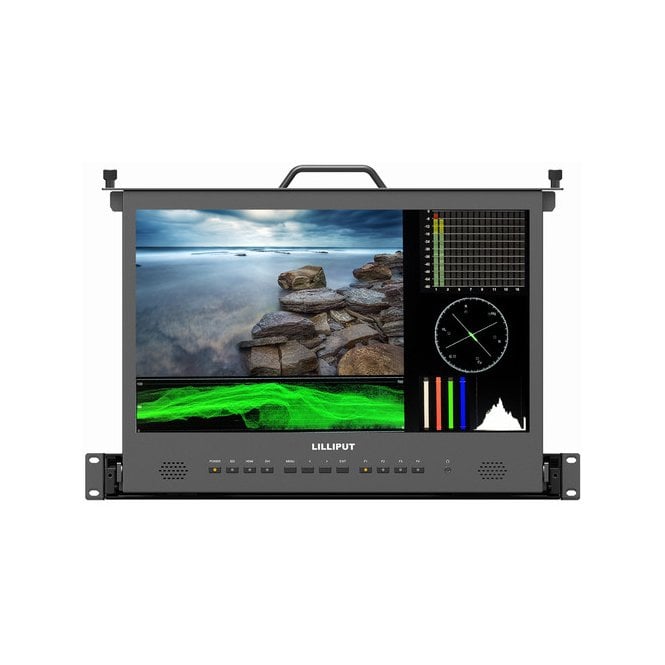

Lilliput 17.3 Inch 1U Rackmounted Drawer Monitor with HDMI / SDI Input

Lilliput RM-1730S (RM/1730S, RM1730S, RM 1730S, RM_1730S) 17.3 Inch 1U Rackmounted Drawer Monitor with HDMI / SDI Input.

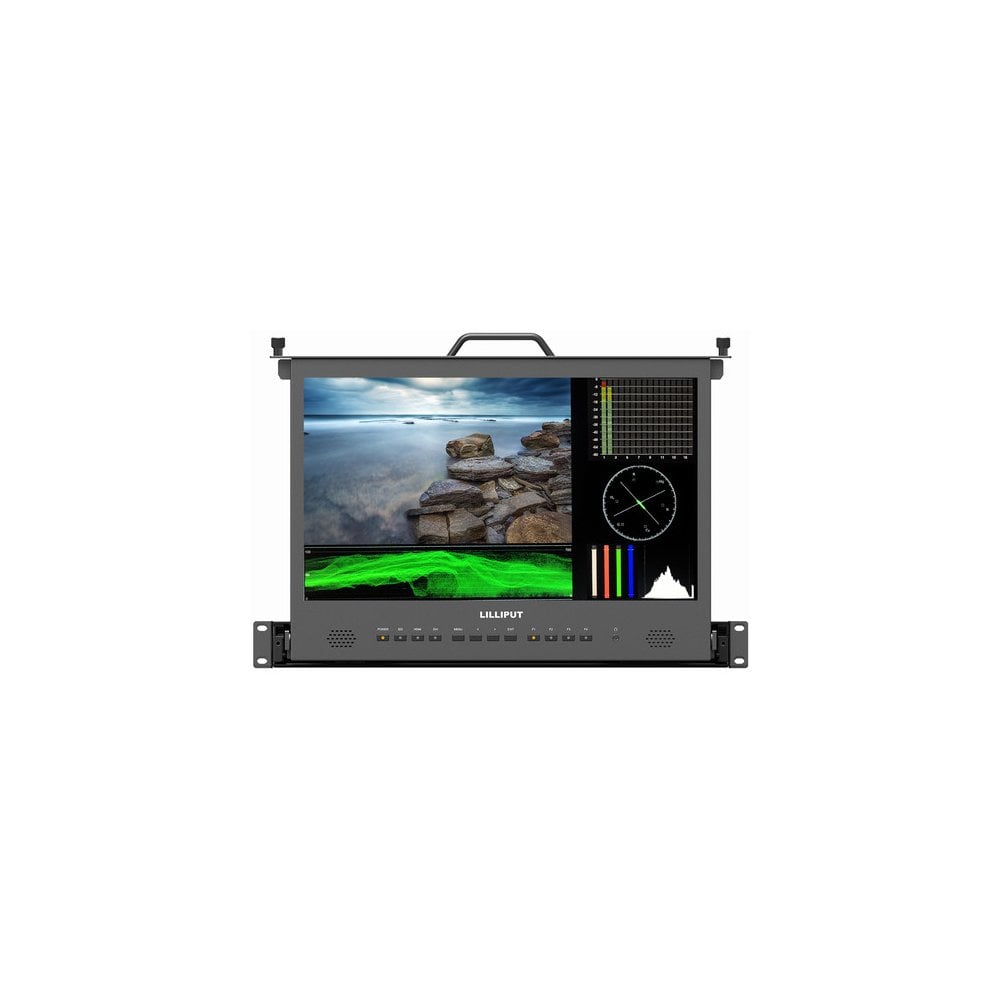

RM-1730/S Rackmount Monitor

The RM-1730/S is a compact, high-performance monitoring solution, perfect for live events, broadcast environments, and integration into server stations. Designed to fit seamlessly into a rack or pull-out drawer system, it’s ideal for installations where space is limited but quality is essential.

Featuring a 17.3" Full HD IPS panel with a native resolution of 1920 x 1080, the RM-1730/S delivers sharp, vibrant visuals with excellent clarity for both video and text. The panel boasts a 700:1 contrast ratio, 300 cd/m² brightness, and an ultra-wide 178° viewing angle, ensuring consistent image quality from virtually any angle.

Versatile signal conversion capabilities allow the RM-1730/S to cross-convert HDMI inputs to SDI outputs, and vice versa—converting SDI to HDMI—making it a powerful tool for flexible signal management in any production setup.

Built-in monitoring tools such as timecode display, vector scope, waveform, and audio level meters provide precision feedback for filmmakers and operators, allowing for detailed analysis and confident monitoring.

Housed in a durable metal chassis, the RM-1730/S is designed for 1U rackmount installation and includes multiple mounting options, making it a space-efficient solution for both broadcast and industrial applications.

Monitor Specification

• Output: 3G-SDI x1, HDMI x1
• Current: 2.8A
• Aspect Ratio: 16:9
• Display    Display: Screen = 17.3" IPS, Physical Resolution = 1920×1080,
• Environment: Operating Temperature = -20℃～60℃, Storage Temperature = -30℃～70℃
• HDMI Formats: Full HD ~ HD 1080p, 1080i, 720p, 576p, 576i, 480p, 486i
• Input: 3G-SDI x1, HDMI x1, DVI x1, AUDIO x2 (L/R), TALLY x1
• Input Voltage: DC 10-18V
• Power Consumption: ≤32W
• Viewing Angle (degrees): 178°/178°(H/V)
• Brightness Ratio (cd/m2): 300cd/m2,
• Contrast Ratio: 700:1
• Audio Outputs: Speakers x 2, Ear Phone Slot x 1

Dimensions

• Height (mm): 482.5
• Width (mm): 44
• Depth (mm): 507.5
• Weight (g): 8.6Kg

In The Box

• Lilliput RM-1730S 17.3" Full HD 3G-SDI/HDMI Pullout Rackmount Monitor (1 RU)
• Tally Connector
• 15 VDC Adapter
