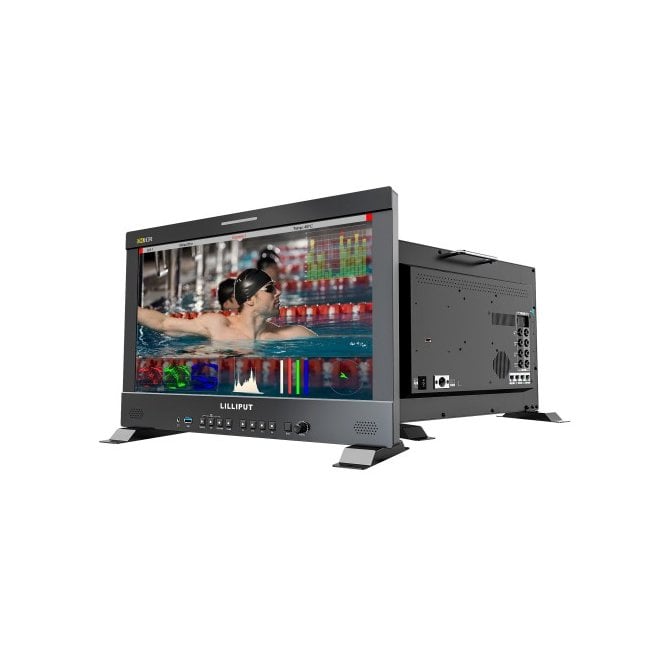

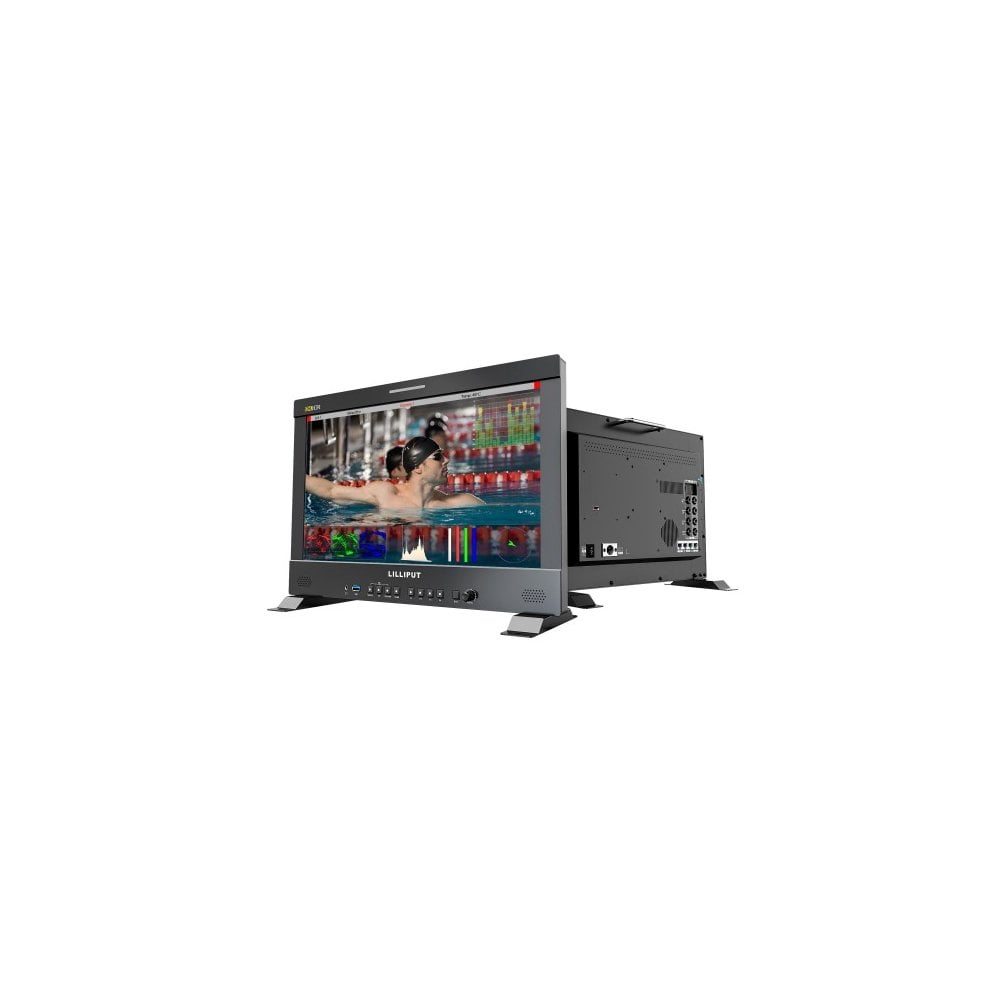

Lilliput 17.3 Inch 8K 12G-SDI Production Monitor

Lilliput Q18-8K (Q18/8K, Q188K, Q18 8K, Q18_8K) 17.3 Inch 8K 12G-SDI Production Monitor.

The Lilliput Q18-8K is a flagship monitor engineered to process true 8K video input. It receives 4 x 12G-SDI signals through rear BNC connectors and, using the ST2082-12 video protocol, combines them into a single 8K 60Hz feed—displayed on a high-resolution 3840 x 2160 panel.

Designed for demanding broadcast and production environments, the Q18-8K supports REC.709 and DCI-P3 color spaces, 3D LUTs, and remote control via LAN. Additional features include Multiview and Quad-Split display modes, plus an optional 12G-SFP module for expanded connectivity.

With robust functionality and intuitive operation, the Q18-8K delivers powerful 8K monitoring in a streamlined, professional package.

Display

• Aspect Ratio: 16:9
• Brightness: 400cdm²
• Colour Space: REC .709 and DCI-P (90%)
• Contrast Ratio: 1200 : 1
• Resolution: 3840 x 2160
• Viewing Angle: 170° / 170°
• HDR: ST2084 300/1000/10000/HLG
• LUT Support: 3D LUT (.cube format)
• Screen Size: 17.3"
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use

Supported Formats

• HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
• SDI Formats Supported: 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
• SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60

Monitor Specification

• Video Inputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
• Video Outputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output

Size

• Dimensions: 433.9 x 294.2 x 45.7 mm

Power

• Input Voltage: DC 12V - 24V
• Power Consumption: <= 40W (15V)

Environment

• Operating Temperature: 0°C - 50°C
• Storage Temperature: -20°C to 60°C

In The Box

• Lilliput Q18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
• Gold Mount Battery Plate
• Power Adapter
• VESA Mount Plate
• Base Bracket
