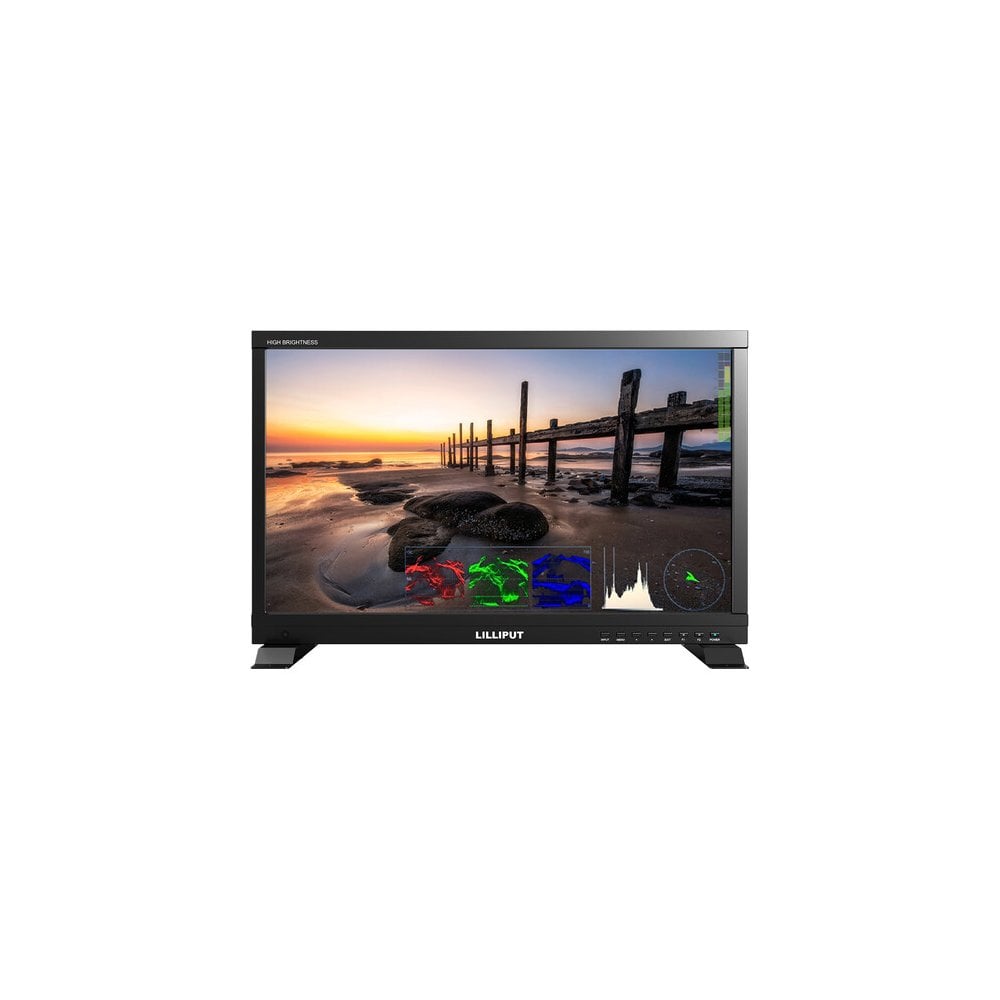

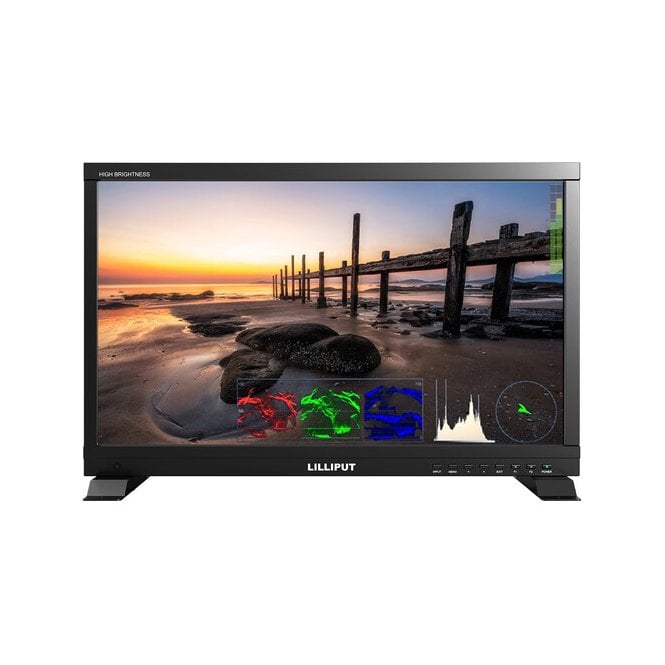

Lilliput 21.5 Inch High Brightness Broadcast Monitor

Lilliput PVM220S-H (PVM220S/H, PVM220SH, PVM220S H, PVM220S_H) 21.5 Inch High Brightness Broadcast Monitor.

The LILLIPUT PVM220S-H is a high-brightness professional broadcast monitor, purpose-built for photographers, videographers, and cinematographers who demand precision and reliability.

Equipped with both 3G-SDI and HDMI 2.0 inputs, it supports broadcast-quality monitoring across a range of professional workflows. The monitor also includes advanced tools such as waveform and vector scope displays, ensuring accurate color representation and helping you fine-tune every shot with confidence.

Display

• Aspect Ratio: 16:9
• Contrast Ratio: 1000:1
• Look Up Table Support: 3D LUT (.cube format)
• Resolution: 1920 x 1080
• Technology: Calibration to Rec.709 with optional calibration unit
• Viewing Angle: 178°/178°（H/V)
• HDR: ST2084 300/1000/10000/HLG
• Screen Size: 21.5"
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…

Supported Formats

• HDMI Formats Supported: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
• SDI Formats Supported: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…

Monitor Specification

• Video Inputs: SDI 1×3G, 1X HDMI 2.0
• Video Outputs: SDI 1×3G, 1X HDMI 2.0
• Audio In / Out: (48 kHz PCM Audio)
• Built In Speakers: 1
• Ear Jack: 1x 3.5mm
• HDMI Audio Frequency: 8ch 24-bit
• SDI Audio Frequency: 2ch 48kHz 24-bit

Size

• Dimensions: 508mm × 321mm × 47mm
• Weight: 4.7 kg

Power

• Compatible Batteries: V-Lock or Anton Bauer Mount
• Input Voltage: DC 9-24V
• Power Consumption: ≤53W (15V)

Environment

• Operating Temperature: 0℃~50℃
• Storage Temperature: -20℃~60℃

In The Box

• Lilliput PVM220S-H 21.5" High-Brightness Broadcast Monitor (V-Mount)
• 15 VDC, 4A Power Adapter
• 2 x Base Bracket
