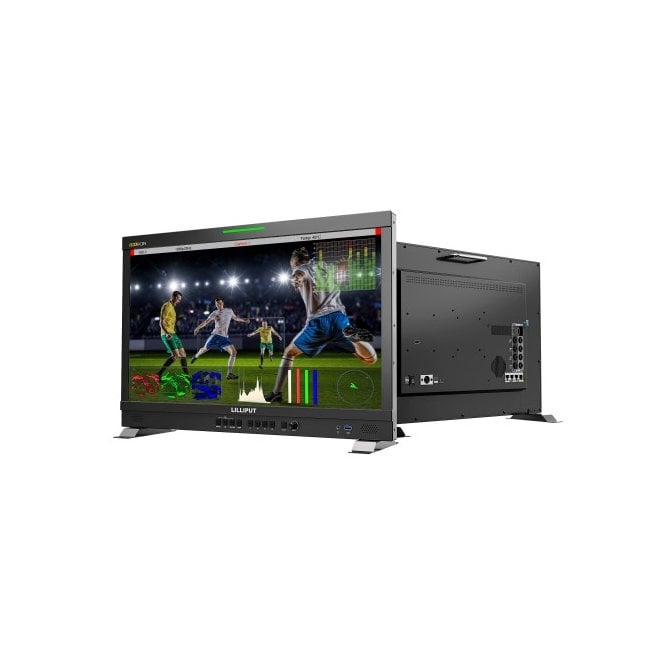

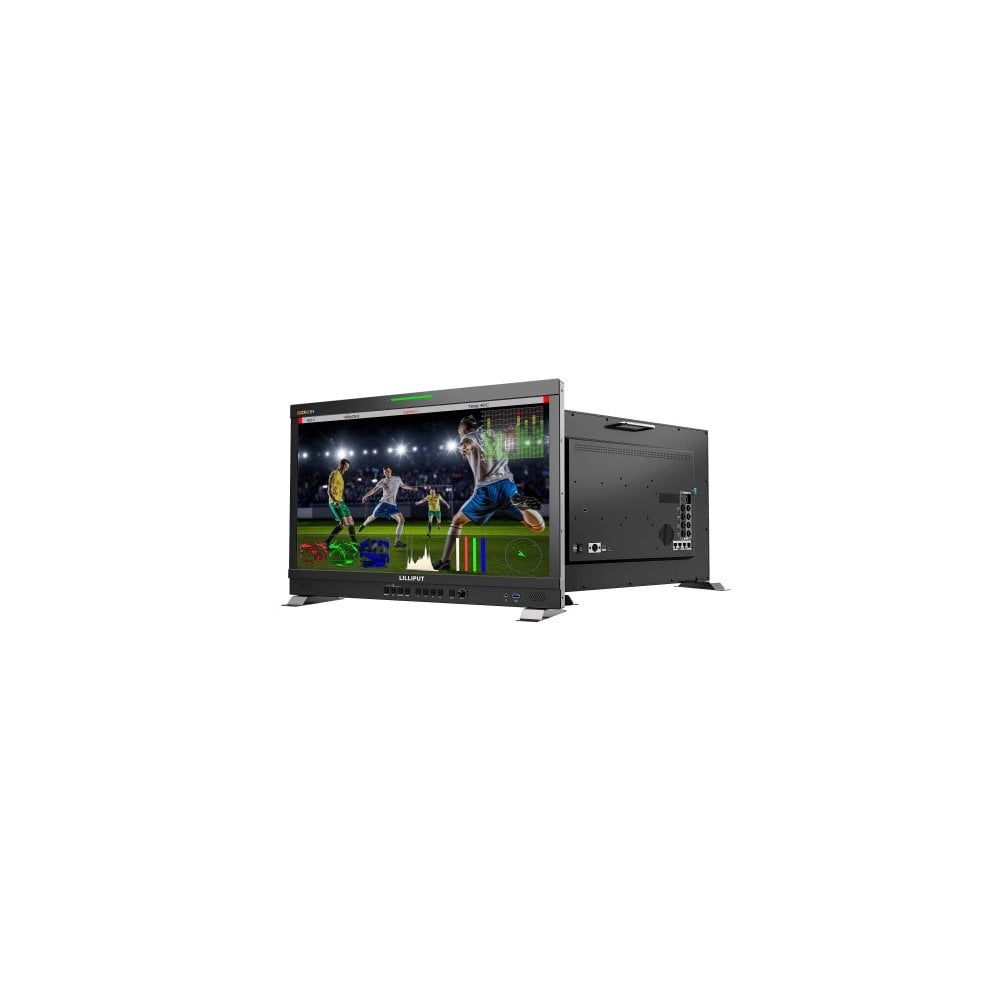

Lilliput 23.8 Inch 8K 12G-SDI Production Monitor

Lilliput Q23-8K (Q23/8K, Q23 8K, Q238K, Q23_8K) 23.8 Inch 8K 12G-SDI Production Monitor.

The Lilliput Q23-8K is a premium monitor from Lilliput’s flagship range, purpose-built to process and display native 8K video signals. It accepts 4 x 12G-SDI inputs via rear BNC connectors and utilizes the ST2082-12 protocol to combine them into a seamless 8K 60Hz signal—rendered on a crisp 3840 x 2160 resolution panel.

Ideal for high-end production environments, the Q23-8K features REC.709 and DCI-P3 color space support, 3D LUT compatibility, remote control via LAN, Multiview and Quad-Split display modes, and optional 12G-SFP connectivity.

With professional-grade capabilities packed into a user-friendly design, the Q23-8K offers exceptional 8K monitoring performance for broadcast, post-production, and on-set workflows.

Display

• Aspect Ratio: 16:9
• Brightness: 400cdm²
• Colour Space: REC .709 and DCI-P (90%)
• Contrast Ratio: 1200 : 1
• Resolution: 3840 x 2160
• Viewing Angle: 170° / 170°
• HDR: ST2084 300/1000/10000/HLG
• LUT Support: 3D LUT (.cube format)
• Screen Size: 23.8"
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use

Supported Formats

• HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
• SDI Formats Supported" 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
• SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60

Monitor Specification

• Video Inputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
• Video Outputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output

Size

• Dimensions: 567 x 376.4 x 45.7 mm

Power

• Input Voltage: DC 12V - 24V
• Power Consumption: <= 60W (15V)

Environment

• Operating Temperature: 0°C - 50°C
• Storage Temperature: -20°C to 60°C

In The Box

• Lilliput Q23-8K 23.8" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
• V-Mount Battery Plate
• Power Adapter
• VESA Mount Plate
• Base Bracket
