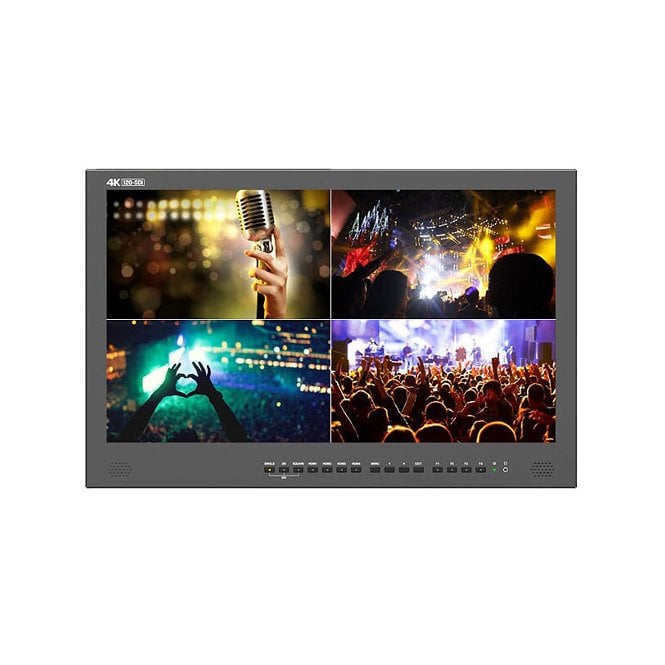

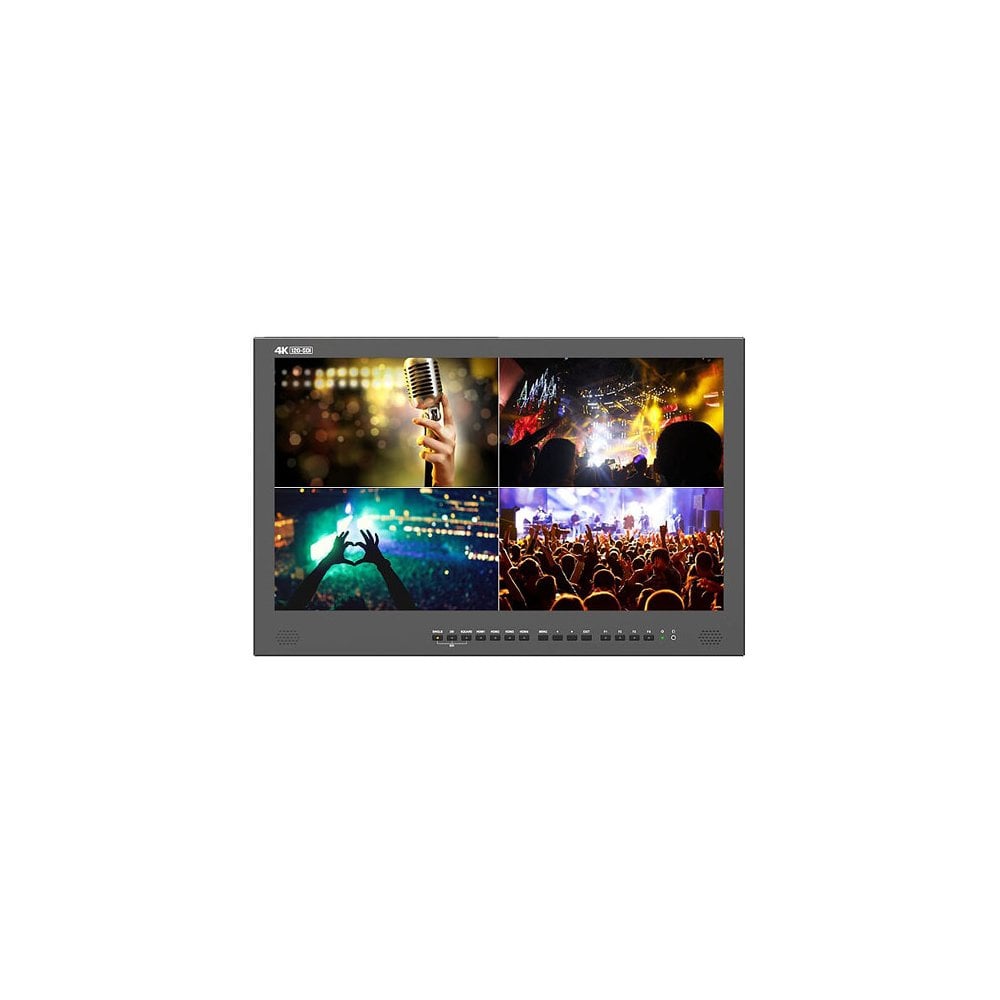

Lilliput 23 Inch 4K HDMI 2.0 / 12G-SDI Monitor

Lilliput BM230-12G (BM230/12G, BM230 12G, BM23012G, BM230_12G) 23 Inch 4K HDMI 2.0 / 12G-SDI Monitor.

The Lilliput 23.8" 12G-SDI 4K IPS Monitor delivers ultra-sharp UHD 4K resolution (3840 x 2160) on a vibrant IPS display with 300 cd/m² brightness, a 1000:1 contrast ratio, and a wide 178° viewing angle—perfect for both field use and studio monitoring.

Designed with flexibility in mind, it features a built-in V-mount battery plate for extended runtime during on-location shoots, and comes with a durable carry case for easy transport and protection.

Connectivity options are extensive, including dual 12G-SDI and 3G-SDI inputs with loop-through outputs, one HDMI 2.0 input, three HDMI 1.4 inputs, and a tally input. The monitor supports 12G-SDI single-link and dual-link, as well as 3G-SDI quad-link configurations—offering seamless integration into a wide range of professional broadcast workflows.

It also includes advanced monitoring tools such as quad-view display, false color, focus peaking, check field, image flip, overscan/underscan, image freeze, 16:9 aspect ratio selection, center markers, screen markers, and adjustable color temperature—making it an essential tool for accurate on-set image assessment.

Monitor Specification

• Screen Size (diagonal): 23"
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160
• Viewing Angle (degrees): 178 / 178
• Brightness Ratio (cd/m2): 330
• Contrast Ratio: 1000:1
• Backlight: LED
• Video Inputs: 12G-SDI x 2 (backward compatible to 6G and 3G-SDI), 3G SDI x 2, HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
• Video Outputs: 12G SDI x2, 3G-SDI x 2
• Audio Outputs: Speaker x 2, 3.5mm Jack x 1
• Input Power: DC12V - 24V (XLR)
• Operating Temperature: -20 degrees - 50 degrees

Dimensions

• Height (mm): 376.5 (417 in case)
• Width (mm): 579 (666 in case)
• Depth (mm): 45 (173 in case)
• Weight (g): 17kg with case (8.6kg without case)

In The Box

• Lilliput 23.8" 12G-SDI 4K IPS Monitor (V-Mount)
• Folding Sunshade
• Battery Plate Bracket
• V-Mount Plate
• Power Adapter
• Fixing Belt
• Tally Connector
• Carry Case
