Lilliput 28 Inch 4K HDMI 2.0 / 12G-SDI Monitor

Lilliput BM280-12G (BM280/12G, BM28012G, BM280 12G, BM280_12G) 28 Inch 4K HDMI 2.0 / 12G-SDI Monitor.

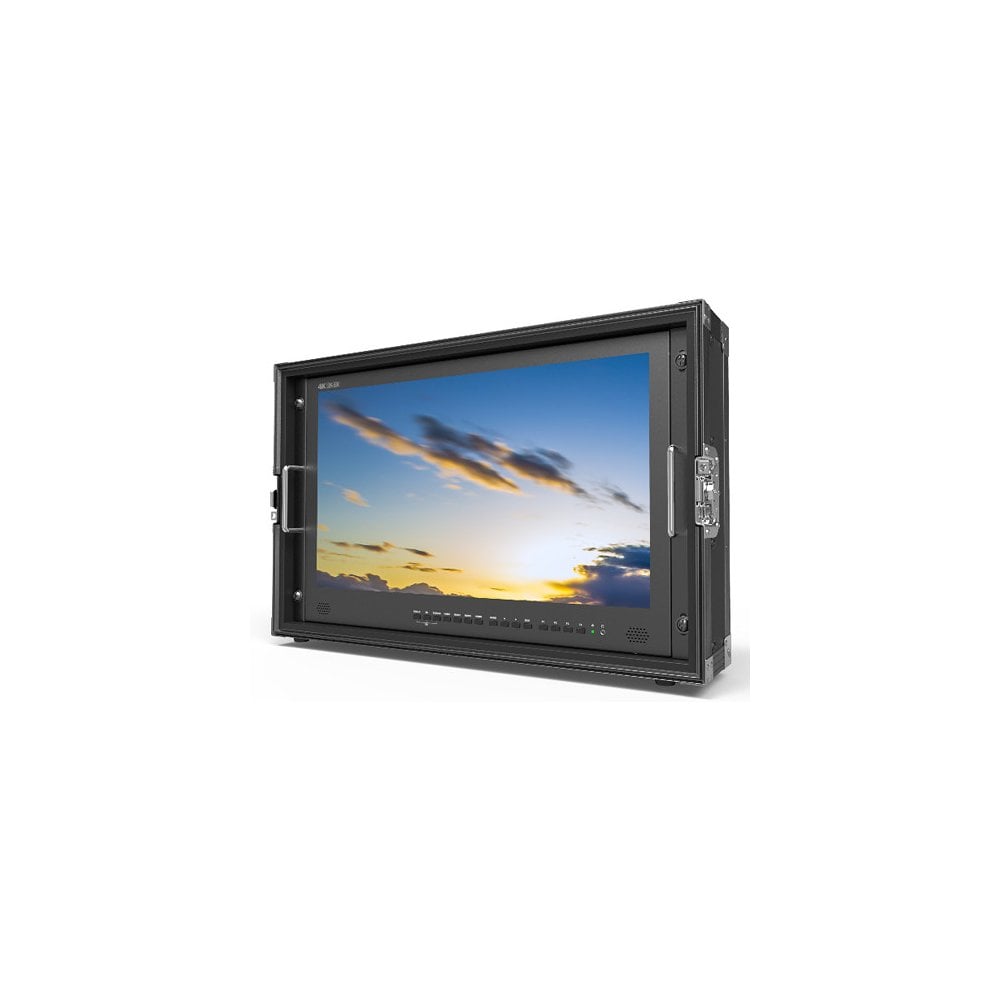

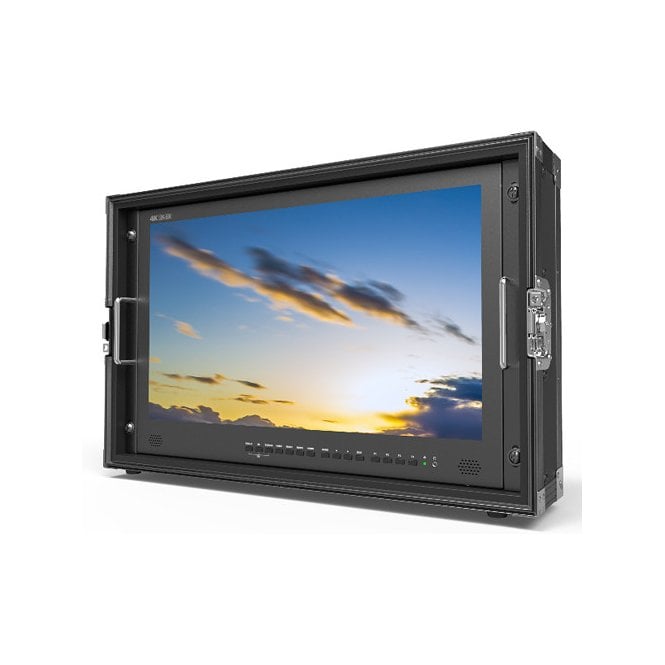

Lilliput 28" 12G-SDI 4K IPS Monitor

The Lilliput 28" IPS monitor delivers stunning UHD 4K resolution (3840 x 2160), a brightness of 300 cd/m², a 1000:1 contrast ratio, and a wide 170° x 160° viewing angle. Designed for on-the-go productions, it comes equipped with a V-mount battery plate for extended use and a durable carry case for easy transport.

Connectivity options include dual 12G-SDI and 3G-SDI inputs with loop-through outputs, HDMI 2.0, three HDMI 1.4 inputs, and a tally input. It supports single-link and dual-link 12G-SDI, as well as quad-link 3G-SDI.

Advanced monitoring features include quad-view, false color, focus peaking, check field, image flip, overscan/underscan, image freeze, center and screen markers, 16:9 aspect ratio, and adjustable color temperature.

Monitor Specification

• Screen Size (diagonal): 28"
• Aspect Ratio: 16:9
• Native Resolution: 3840 x 2160
• Viewing Angle (degrees): 178 / 178
• Brightness Ratio (cd/m2): 330
• Contrast Ratio: 1000:1
• Backlight: LED
• Video Inputs: 12G-SDI x 2 (backward compatible to 6G and 3G-SDI), 3G SDI x 2, HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
• Video Outputs: 12G SDI x2, 3G-SDI x 2
• Audio Outputs: Speaker x 2, 3.5mm Jack x 1
• Input Power: DC12V - 24V (XLR)
• Operating Temperature: -20 degrees - 50 degrees

Dimensions

• Height (mm): 376.5 (417 in case)
• Width (mm): 579 (666 in case)
• Depth (mm): 45 (173 in case)
• Weight (g): 17kg with case (8.6kg without case)

In The Box

• Lilliput 28" 12G-SDI 4K IPS Monitor (V-Mount)
• Folding Sunshade
• Battery Plate Bracket
• V-Mount Plate
• Power Adapter
• Fixing Belt
• Tally Connector
• Carry Case
