Lilliput 3 x 5 Inch Panel 19 Inch Rack Mount Monitor

code: RM-503S
  • $952.17
  • RRP: $930.98
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

  • Full 1920 x 1080 HD Resolution
  • Three 5" LED Displays
  • Brightness of 450 cd/m^2
  • Supports HDR
  • Built-In 3D LUT Support
  • Waveform, Vectorscope, and Histogram
  • LAN-Based Remote Control Functions
  • 2 RU Rackmountable

Lilliput RM-503S (RM/503S, RM503S, RM 503S, RM_503S) 3 x 5 Inch Panel 19 Inch Rack Mount Monitor.

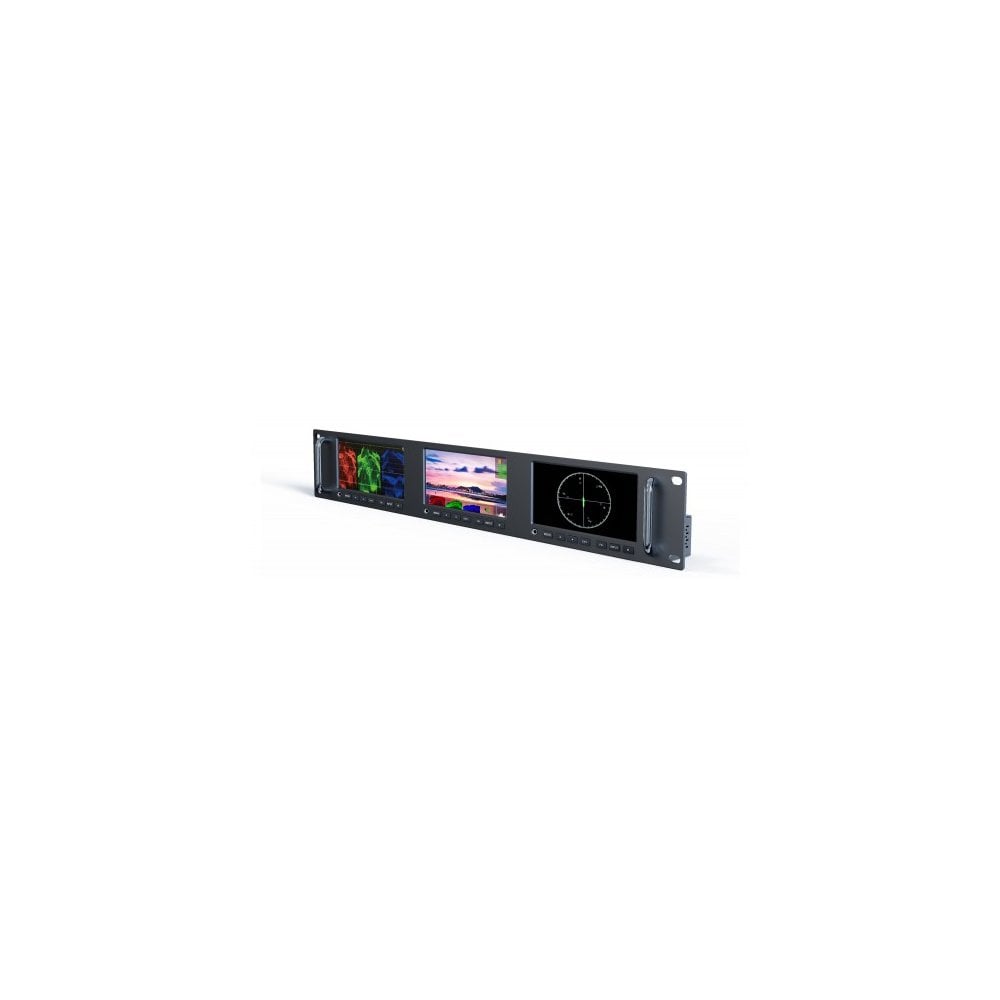

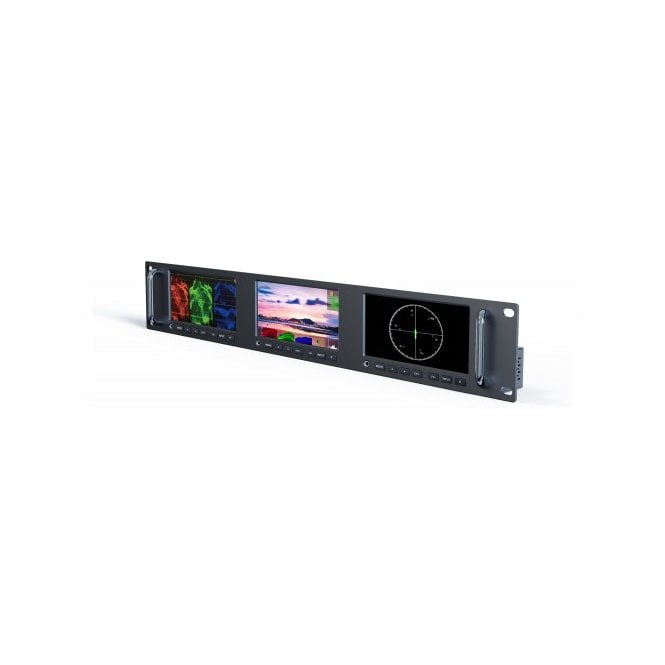

The Lilliput RM-503S is a rack-mountable monitoring system featuring three 5-inch displays. Ideal for broadcast and live feed applications, each panel offers a native resolution of 1920 x 1080 and supports up to 4K 2160p input via HDMI 2.0

Display

  • Aspect Ratio: 16:9
  • Brightness: 450 cdm²
  • Colour Space: 98% DCI-P3
  • Contrast Ratio: 1000:1
  • Display Screen: 3 x 5" LED Panels
  • Resolution: 1920 x 1080
  • Viewing Angle: 160° Horizontal / 160° Vertical
  • LUT Support: 3D-LUT Cube Support

Monitor Specification

  • Video Inputs: 3G-SDI x 3 // HDMI 2.0 (Supports up to 4K 60Hz) x3 // LAN x1
  • Video Outputs: 3G-SDI x 3 // HDMI 2.0 (Supports up to 4K 60Hz)

Formats

  • SDI Formats: 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
  • HDMI Formats: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50

Size

  • Dimensions: 480mm×116mm×88mm
  • Weight: 2.1KG

Power

  • Current: 2.5A(12V)
  • Voltage Range: DC 12-24V

Environment

  • Operating Temperature: 0℃~50℃
  • Storage Temperature: -20℃~60℃

In The Box

  • Lilliput RM-503S 5" 3G-SDI/HDMI Rackmount Monitor (2 RU)
  • Power Adapter
  • Tally Connector
