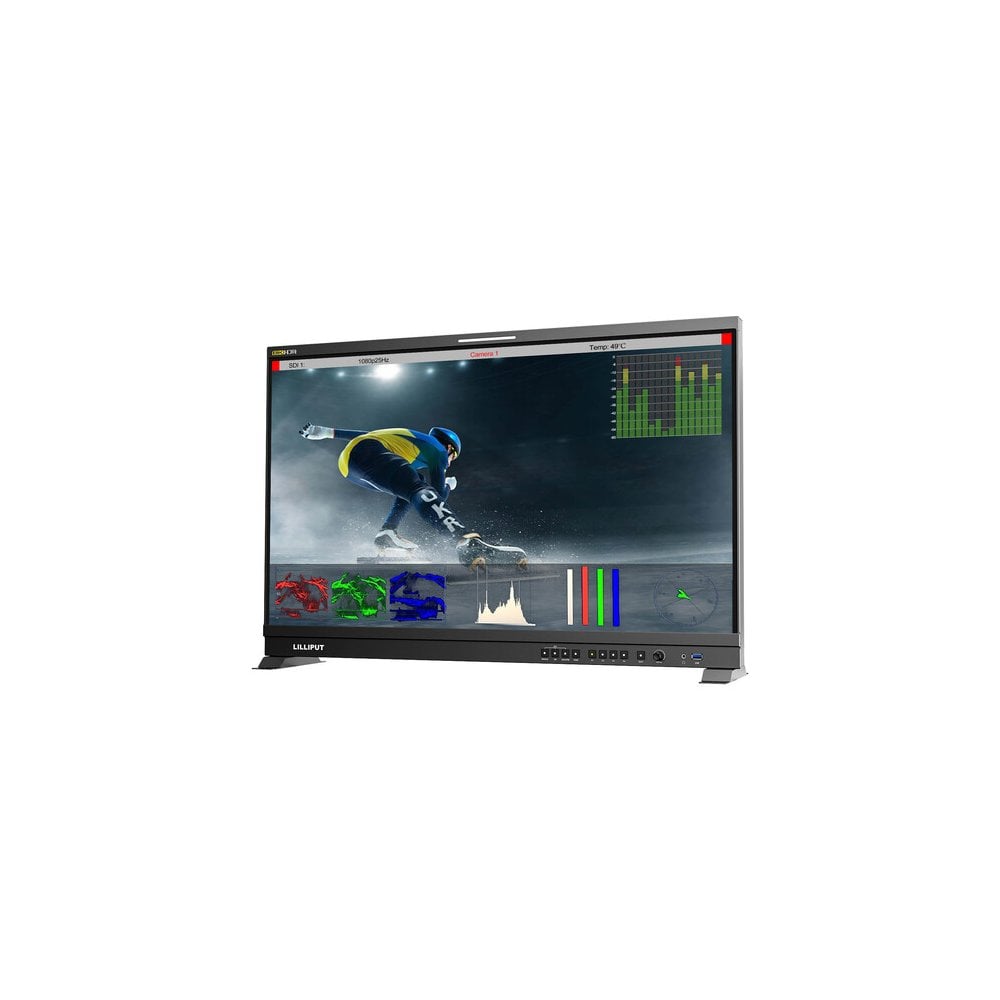

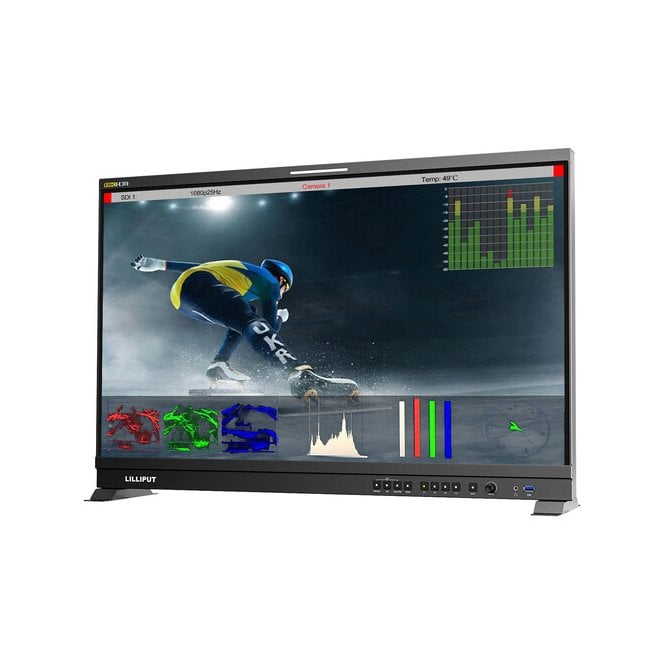

Lilliput 31.5 Inch 8K 12G-SDI Production Monitor

Lilliput Q31-8K (Q31/8K, Q318K, Q31 8K, Q31_8K) 31.5 Inch 8K 12G-SDI Production Monitor.

The Lilliput Q31-8K is a top-tier monitor from Lilliput’s flagship range, purpose-built to receive and process 8K video input. It utilizes four 12G-SDI input channels via rear-mounted BNC connectors, and—adhering to the ST2082-12 video protocol—seamlessly combines them to deliver an 8K 60Hz signal, displayed on its 3840 x 2160 resolution panel.

Engineered for professional performance, the Q31-8K features REC.709 and DCI-P3 color space support, 3D LUT capability, LAN-based remote control, Multiview and Quad-Split viewing modes, and an optional 12G-SFP module. It’s a powerful yet intuitive solution for high-resolution monitoring.

Display

• Aspect Ratio: 16:9
• Brightness: 350cdm²
• Colour Space: REC .709 and DCI-P (90%)
• Contrast Ratio: 1200 : 1
• Resolution: 3840 x 2160
• Viewing Angle: 170° / 170°
• HDR: ST2084 300/1000/10000/HLG
• LUT Support: 3D LUT (.cube format)
• Screen Size: 31"
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use

Supported Formats

• HDMI Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
• SDI Formats Supported: 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
• SFP Formats Supported: 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60

Monitor Specification

• Video Inputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
• Video Outputs: SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output

Size

• Dimensions: 717.5 x 461.7 x 47.4 mm

Power

• Input Voltage: DC 12V - 24V
• Power Consumption: <= 60W (15V)

Environment

• Operating Temperature: 0°C - 50°C
• Storage Temperature: -20°C to 60°C

In The Box

• Lilliput Q31-8K 31.5" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
• V-Mount Battery Plate
• Power Adapter
• VESA Mount Plate
• Base Bracket
