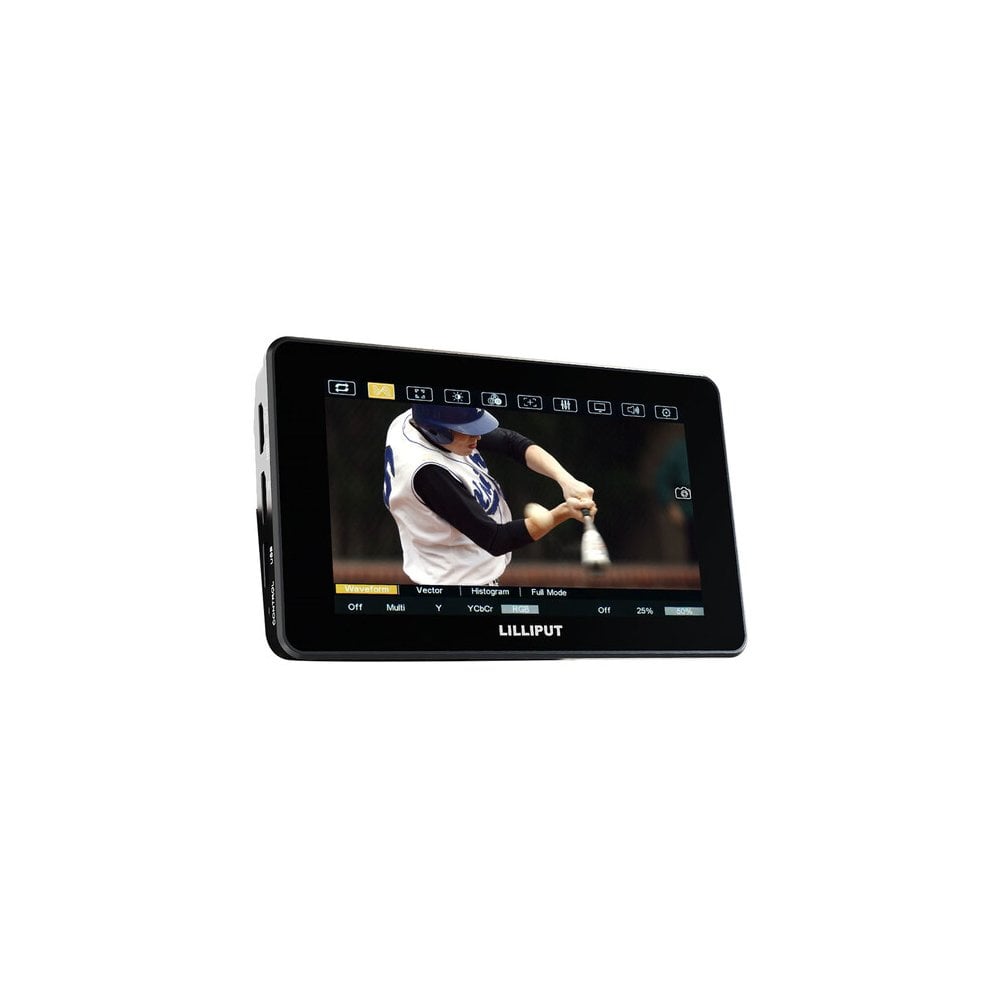

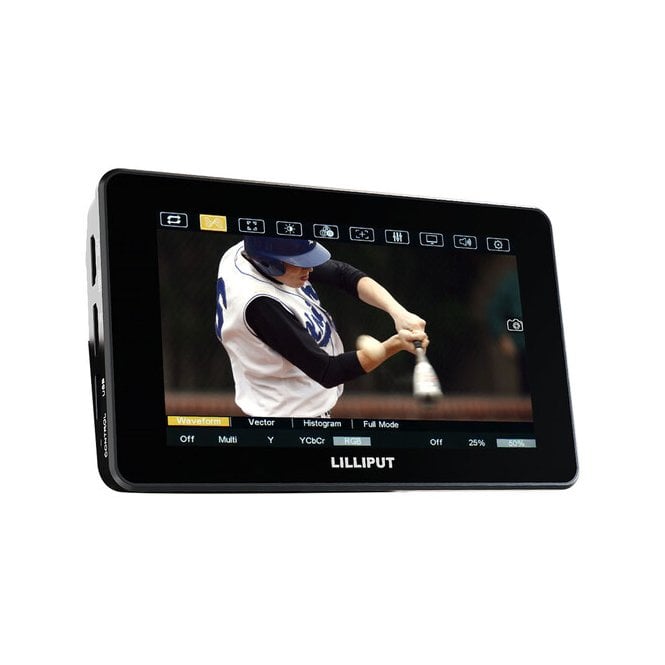

Lilliput 5 Inch 2000nit Ultra Bright Touch Control Camera Monitor

Lilliput HT5S (HT/5S, HT 5S, HT_5S, HT5-S) 5 Inch 2000nit Ultra Bright Touch Control Camera Monitor.

The Lilliput HT5S is a reliable, high-performance monitor designed for DSLR users.
With its 5.5" 1920 x 1080 full HD display, it supports 4K 2160P 60Hz input and delivers exceptional clarity even in bright environments, thanks to its impressive 2000cd/m² brightness — perfect for outdoor shooting.

What truly sets it apart is its intuitive touchscreen functionality. Using the included LANC cable, you can connect your camera directly to the monitor and control key functions right from the screen. This streamlined setup allows you to focus more on composition and framing, without needing to switch between camera controls and viewfinders — ideal for precise, deliberate shots.

• Display Size: 5.5" / 14.0 cm
• Native Resolution: 1920 x 1080
• Touchscreen: Yes
• HDR Support: Yes, Hybrid Log Gamma
• Video I/O: 1x HDMI 2.0 Input, 1x BNC (3G-SDI) Input, 1x HDMI 2.0 Loop Output, 1x BNC (3G-SDI) Loop Output
• Battery    : 1x L-Series Mount on Fixed Plate
• Power Consumption: 14 W (Maximum)

Display

• Panel Type: LCD
• Display Size: 5.5" / 14.0 cm
• Native Resolution: 1920 x 1080
• Aspect Ratio; 16:9
• Viewing Angle: Horizontal: 160°, Vertical: 160°
• Touchscreen: Yes
• Maximum Brightness: 2000 nits / cd/m2
• Contrast Ratio: 1000:1
• HDR Support: Yes, Hybrid Log Gamma
• Color Gamut: 100% Rec. 709
• Image Controls: Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom

Inputs/Outputs

• Video I/O: 1x HDMI 2.0 Input, 1x BNC (3G-SDI) Input, 1x HDMI 2.0 Loop Output, 1x BNC (3G-SDI) Loop Output
• Embedded Audio: HDMI: 8-Channel, SDI: 2-Channel
• Audio I/O: 1x 1/8" / 3.5 mm Headphone/Monitor Output
• Built-In Speaker: Mono
• Power I/O: 1x Barrel (24 VDC) Input
• Other I/O: 1x USB-A (Firmware/LUT Upload)
• Media/Memory Card Slot: No
• Wi-Fi: No
• Bluetooth: No
• Mobile App Compatible: No

Format Support

• Video Format: HDMI - DCI 4K: 60/50/30/25/24, 1080p: 60/50/30/25/24, 1080i: 60/50, 720p: 60/50, SDI - 1080p: 60/50/30/25/24, 1080PsF: 30/25/24, 1080i: 60/50, 720p: 60/50
• Gamma Curve: ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log

Power

• Input Power: 7 to 24 VDC
• Battery: 1x L-Series Mount on Fixed Plate
• Power Consumption: 14 W (Maximum)

General

• Environmental Resistance: No
• Operating Conditions: 32 to 82°F / 0 to 50°C
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Dimensions: 6.1 x 3.7 x 1" / 154.8 x 93.8 x 26.5 mm
• Weight: 10.93 oz / 310.00 g

In The Box

• Lilliput HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor
• HDMI to Micro-HDMI Cable
• Coiled LANC Cable
• Ball Head to Shoe Mount Support
• USB-A Disk Drive
