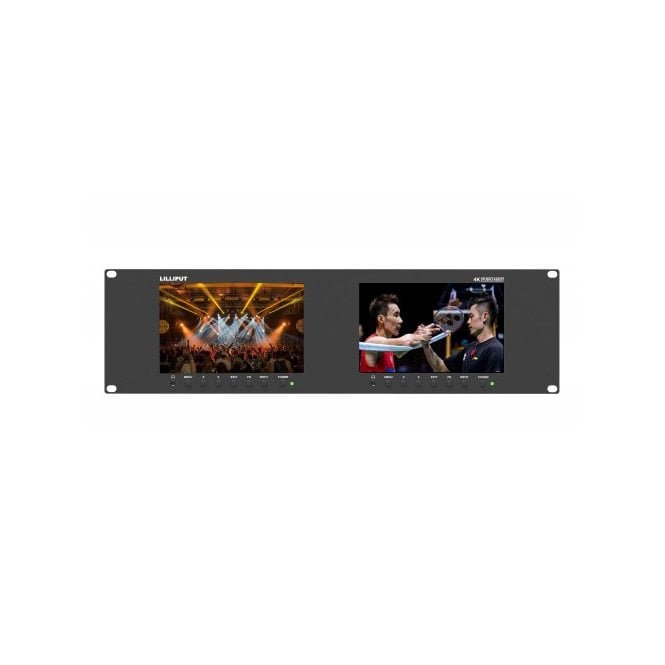

Lilliput Dual 7 Inch Rackmount Monitors with 3G-SDI & HDMI (3 RU)

Lilliput RM-7029S (RM-7029S, RM-7029S, RM-7029S, RM-7029S) Dual 7 Inch Rackmount Monitors with 3G-SDI & HDMI (3 RU).

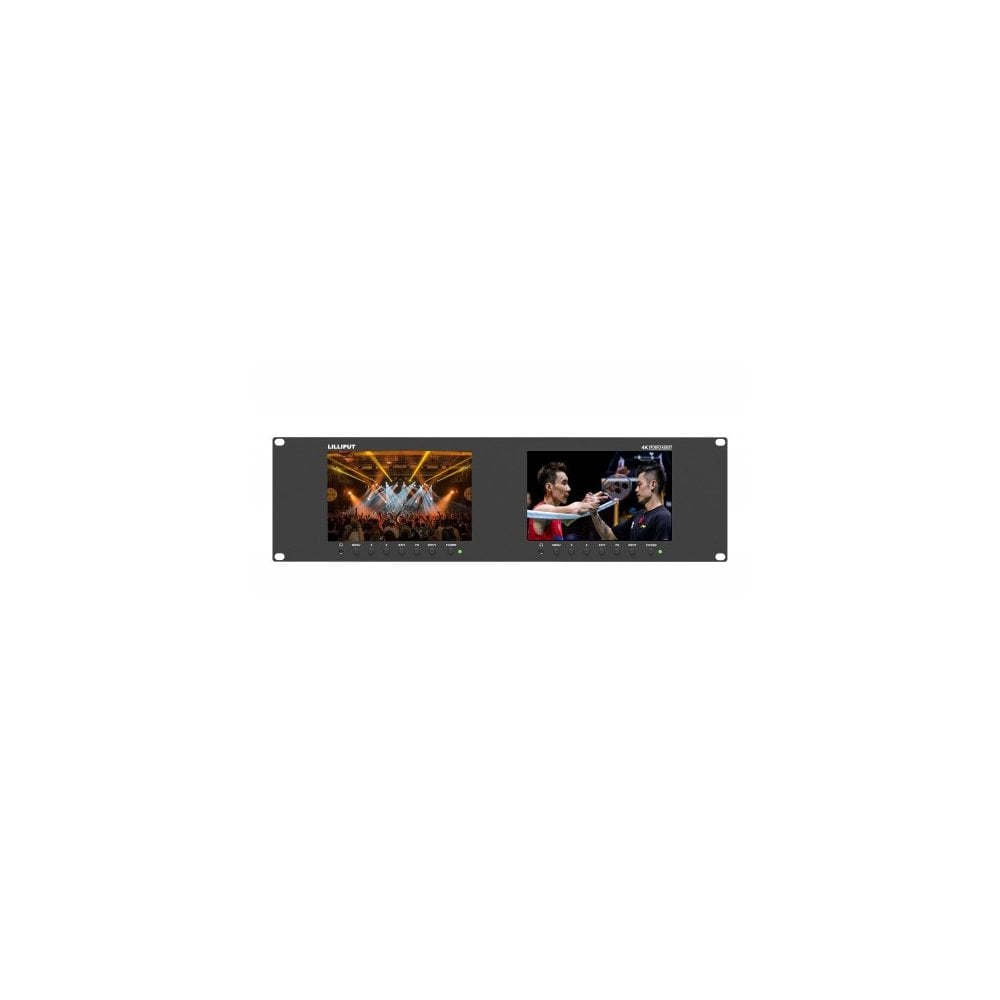

Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI

Monitor two camera feeds simultaneously with the Lilliput Dual 7" Rackmount Monitors, featuring sharp 1920 x 1200 resolution displays. Housed in a compact 3RU form factor, this unit is ideal for integration into video walls, broadcast trucks, or live production setups.

Each monitor operates independently and includes professional video assist tools such as false color, histogram, and timecode display, giving production teams precise control over image quality. For accurate color matching, custom 3D LUTs can be loaded via the USB-A port.

Connectivity & Control:

• Dual 3G-SDI and HDMI inputs support up to 1080p60 and 2160p60, respectively
• Dual 3G-SDI and HDMI loop outputs for flexible signal routing
• Integrated LAN port enables remote control from a connected computer
• Front-panel buttons provide quick access to picture, marker, source, audio, tally, and more
• Dual 3.5mm headphone jacks for independent audio monitoring

This versatile monitoring solution is built for demanding broadcast environments, offering high-end features in a streamlined, rack-ready design.

• Display Size: 7.0" / 17.8 cm
• Native Resolution: 1920 x 1200
• Touchscreen: No
• HDR Support: Yes, Hybrid Log Gamma
• Video I/O: 2x BNC (3G-SDI) Input, 2x BNC (3G-SDI) Loop Output, 2x HDMI 2.0 Input, 2x HDMI 2.0 Loop Output
• Media/Memory Card Slot: No
• Video Format: SDI - 1080p: 60/50/30/25/24, 1080PsF: 30/25/24, 1080i: 60/50, 720p: 60/50, HDMI - DCI 4K: 60/50/30/25/24, 1080p: 60/50/30/25/24, 1080i: 60/50, 720p: 60/50
• Battery: No
• Power Consumption: 16 W

Display

• Panel Type: LCD
• Display Size: 7.0" / 17.8 cm
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Viewing Angle: Horizontal: 160°
• Vertical: 160°
• Touchscreen: No
• Maximum Brightness: 400 nits / cd/m2
• Contrast Ratio: 2000:1
• HDR Support: Yes, Hybrid Log Gamma
• Image Controls: Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers

Inputs/Outputs

• Video I/O: 2x BNC (3G-SDI) Input, 2x BNC (3G-SDI) Loop Output, 2x HDMI 2.0 Input, 2x HDMI 2.0 Loop Output
• Audio I/O: 2x 1/8" / 3.5 mm Headphone Output
• Built-In Speaker: No
• Power I/O: 1x Barrel (1.5 A / 24 VDC) Input
• Other I/O: 1x RJ45 (LAN) Input, 1x DE-15/DB-15 (Tally) Input, 1x USB-A

Power

• Input Power: 10 to 24 VDC
• Battery: No
• Power Consumption: 16 W

Mounting

• Rack Form Factor: 3 U

General

• Operating Conditions: 32 to 82°F / 0 to 50°C
• Storage Conditions: -4 to 158°F / -20 to 70°C
• Material of Construction: Metal
• Dimensions: 18.9 x 5.2 x 1.2" / 480 x 131.6 x 29.3 mm
• Weight: 4.9 lb / 2.2 kg

In The Box

• Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI (3 RU)
• Power Adapter (12 VDC, 2A)
• Tally Connector
