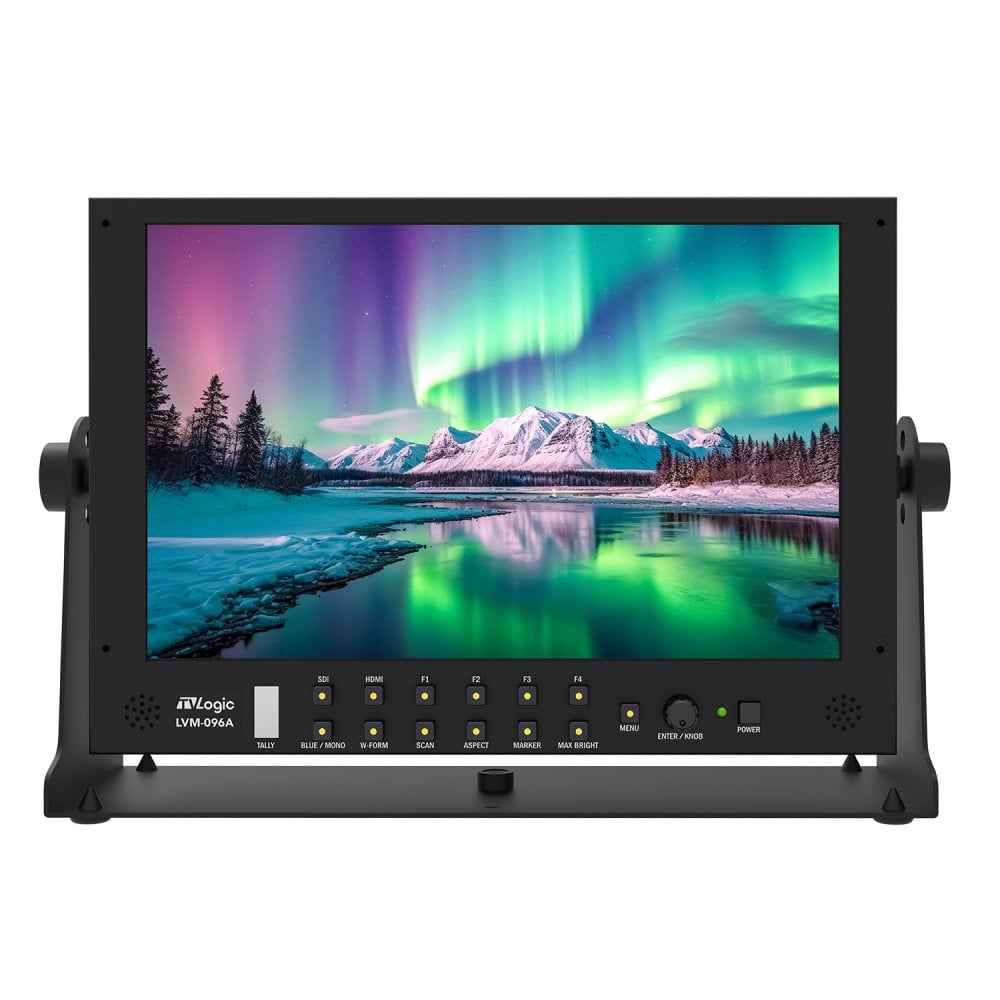

TV Logic LVM-096A 1O" FHD Multi-Purpose Monitor

1O" FHD Multi-Purpose Monitor, Full HD Resolution (1920x1200), Waveform / Vectorscope, 16ch Audio Level Meter, Focus Assist, Marker, Timecode display

This professional 10-inch Full HD (1920×1200) monitor is designed for broadcast, production, and on-set monitoring, offering a comprehensive suite of advanced tools to support accurate image evaluation. With built-in waveform and vectorscope, it ensures precise exposure and colour monitoring, while the 16-channel audio level meter provides real-time audio feedback for multi-source workflows.

Focus Assist and zoom functions help operators achieve critical focus with ease, and multiple marker and user-defined aspect ratio options support a wide range of shooting formats. The monitor features timecode display, dynamic UMD, closed caption support (CC-608/708), and tally indicators, making it ideal for studio and live production environments.

Additional professional features include Blue/Mono Only, H/V Delay, Luma Zone Check, Range Error warnings, and pixel-to-pixel viewing for accurate image analysis. With various scan modes and GPI control compatibility, this monitor integrates seamlessly into complex broadcast setups, delivering reliable performance and versatile monitoring for any production.

LCD Panel

• Size: 10.1”
• Resolution: 1920 x 1200 (16:10)
• Pixel Pitch: 0.1128(H) x 0.1128(V) mm
• Color Depth: 16.7M Colors (8 bit)
• Viewing Angle: 170°(H) / 170°(V)
• Brightness: 1000 cd/m2 / 1000 nits
• Contrast Ratio: 1000 : 1
• Display Area: 216.58 (H) x 135.36 (V) mm

Input

• 1 x 3G-SDI A Input
• 1 x 3G-SDI B Input
• 1 x HDMI input
• 1 x CVBS input (shared with SDI-B)

 Output

• 1 x 3G-SDI Out
