Magenta MAG-4002910-01 15-Pin Female VGA to RGB Passive Video Converter

Magenta MAG-4002910-01 (MAG4002910-01, 4002910-01, MAG 4002910-01, MAG/4002910-01) 15-Pin Female VGA to RGB Passive Video Converter.

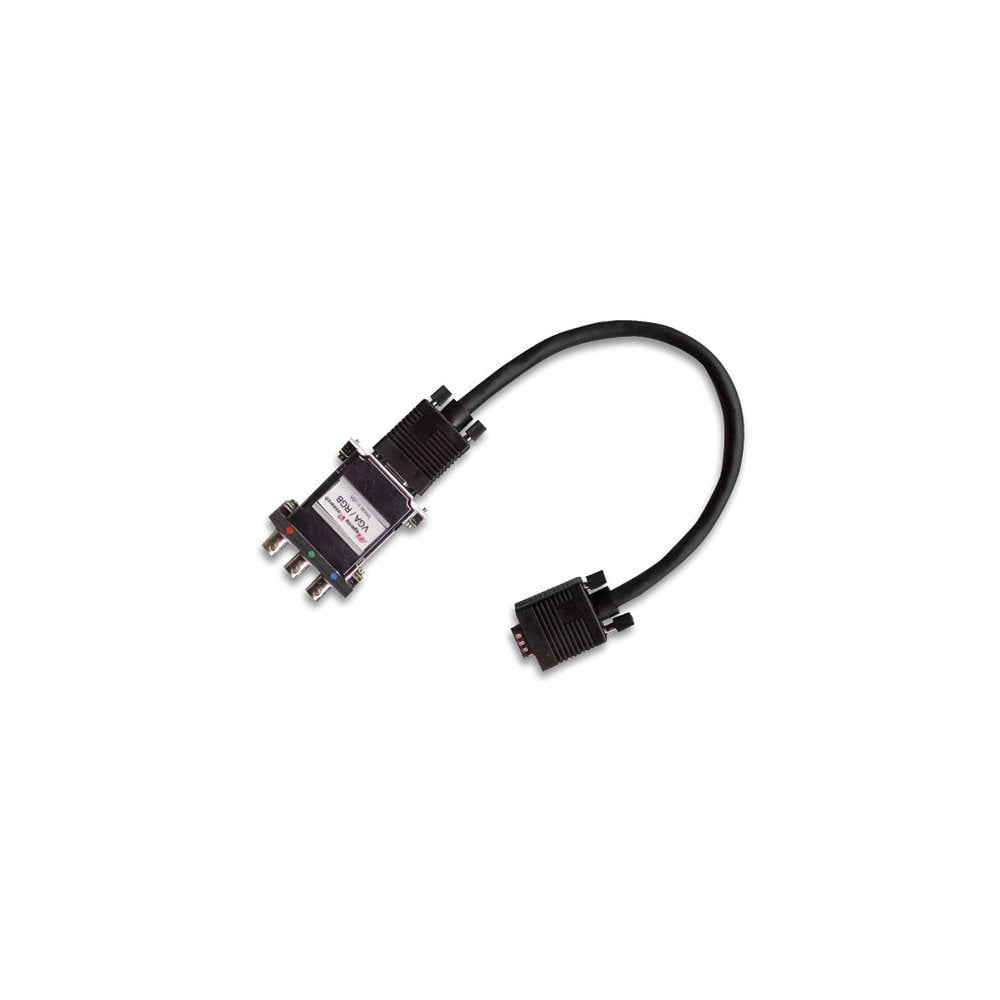

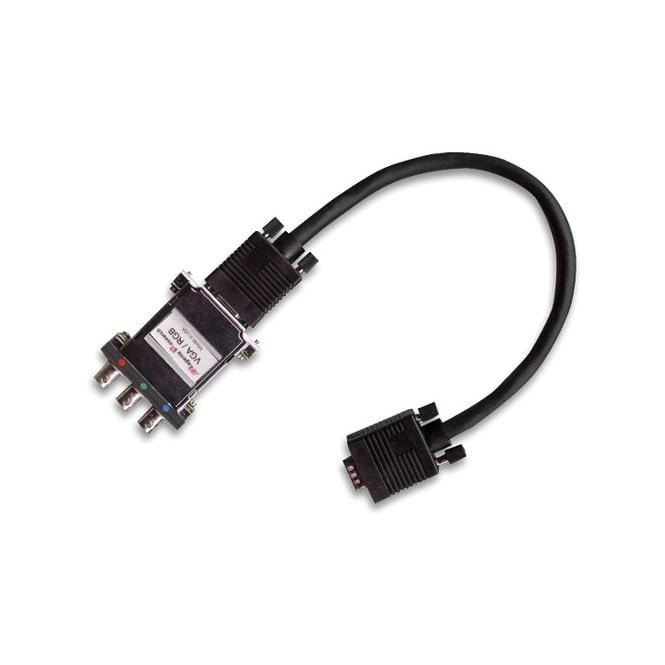

The Magenta Voyager 15-Pin Female VGA to RGB Passive Video Converter lets you connect a VGA source to RGB displays. The converter is a sync combiner that will output the original resolution and scan rates. The horizontal and vertical syncs from the VGA signal are placed on the green channel. This converter comes built with a standard 15-pin VGA connector on one end, and three BNC coaxial connectors on the other. Furthermore, a VGA cable is included.

• Connector 1: VGA Male
• Connector 2:BNC Component Female
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C
• Operating Humidity: 80%
• Dimensions: 2.9 x 2.1 x 0.7" / 74.0 x 54.0 x 16.0 mm
• Weight: 1.8 oz / 50.4 g

In The Box

• Magenta 15-Pin Female VGA to RGB Passive Video Converter
• VGA Cable.
