Portkeys MT22DS 21.5-inch PBP Dual-Screen Production Monitor

Portkeys PK-MT22-DS (PK/MT22-DS, PK/MT22/DS, PKMT22DS, PK MT22 DS) MT22DS 21.5-inch PBP Dual-Screen Production Monitor

The PORTKEYS MT22DS is a high-performance 21.5" production monitor built for precision monitoring in professional video environments. With a Full HD 1920 x 1080 resolution and a peak brightness of 1000 cd/m², it supports up to 1080p60 video input and delivers sharp, vibrant visuals—ideal for both studio and field use.

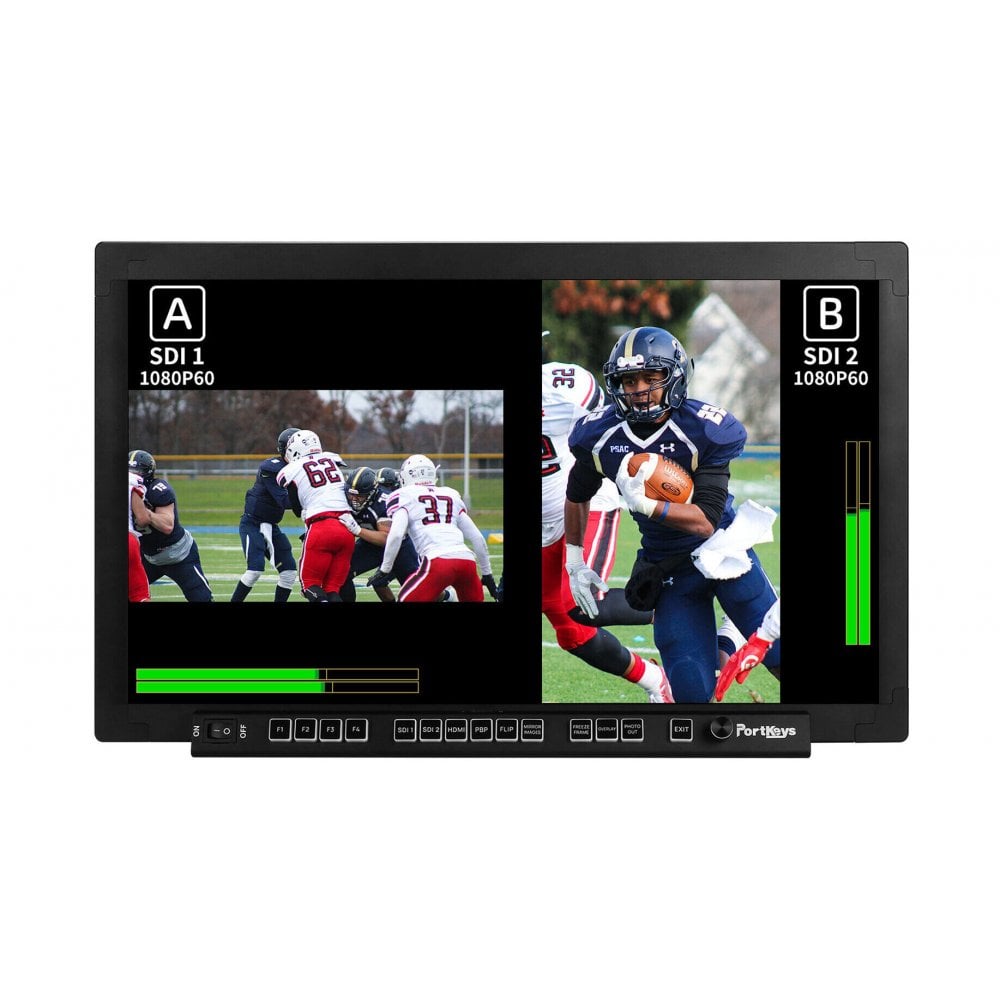

Dual-Screen Split Monitoring with PBP

Designed for multitasking, the MT22DS supports Picture-by-Picture (PBP) display, allowing two input signals to be viewed side-by-side on the same screen. It enables advanced image configurations such as:

Dual horizontal or dual vertical layout

Mixed left/right vertical-horizontal configurations

Cropped versions of the same source side-by-side

This makes it ideal for comparing angles, monitoring live feeds, or checking image flips across setups.

Versatile Input & Output Options

Equipped with HDMI and 3G-SDI inputs and outputs, the MT22DS supports cross-conversion between HDMI and SDI—eliminating the need for external converters. This flexibility enhances compatibility with a wide range of camera and production systems.

3D LUT Support & Output

Load custom 3D LUTs via USB to ensure accurate color grading on set. The monitor also allows 3D LUT output via HDMI and SDI, streamlining your post-production pipeline and providing a real-time preview of your graded look.

Advanced Monitoring Tools

Stay in control of your exposure and image quality with integrated tools such as:

Waveform

Histogram

False Color

Zebra Patterns

Custom Image Freeze & Overlay

Capture a 1920x1080 JPG still and overlay it semi-transparently onto your live feed. This freeze-frame comparison tool is ideal for continuity checks and shot matching during production.

Pro-Grade Audio Integration

The MT22DS includes:

• Two 3-pin XLR inputs with 48V phantom power—connect microphones or mixers directly
• Headphone output jack—for real-time audio monitoring on set

Durable Design & Flexible Power

Built with an aluminum all-metal chassis, the monitor ensures high durability and efficient heat dissipation in demanding production conditions. It comes ready for professional use with:

• Dual V-mount battery plate
• Folding desktop mount
• AC power adapter

• Display Size: 21.5" / 54.6 cm
• Native Resolution: 1920 x 1080
• Touchscreen: No
• HDR Support: Yes: Hybrid Log Gamma
• Video I/O: 2x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Output, 1x HDMI (Unspecified Signal) Input, 1x HDMI (Unspecified Signal) Output
• Media/Memory Card Slot: No
• Video Format: HDMI: 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080PsF: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 576p: 50, 576i: 50, 480p: 60/59.94
• 480i: 60/59.94, SDI (4:4:4/4:2:2 YUV) 1080p: 30/29.97/25/24/23.98, 1080PsF: 30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, SDI (4:2:2 YUV) 1080p: 60/59.94/50, 576i: 50, 480i: 59.94
• Battery Type: 2x V-Mount
• Power Consumption: 60 W
• Mounting: 9x 1/4"-20 Female

In The Box

• MT22DS 21.5-inch PBP Dual-Screen Production Monitor
• Power Adapter
• Folding Monitor Mount
• 2 x V-Mount Battery Plate
• Allen Wrench
• USB Flash Drive
