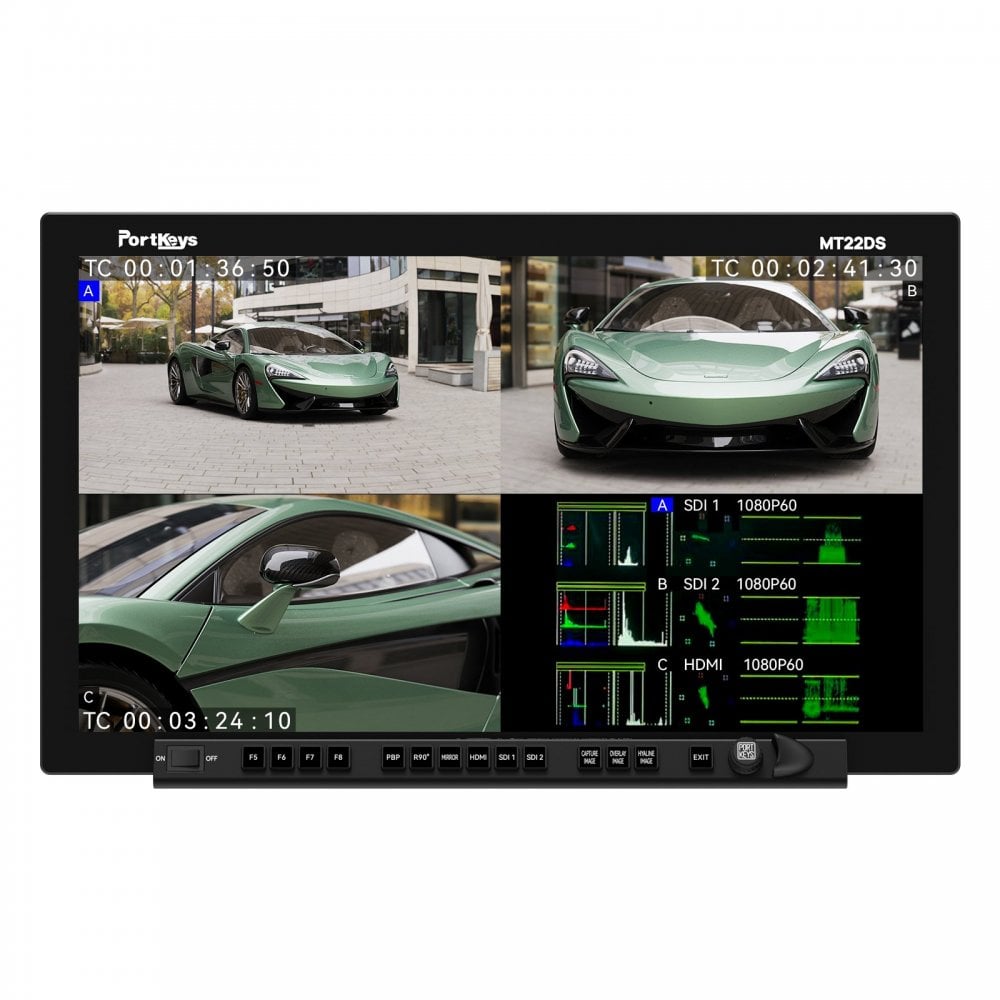

Portkeys MT22DS P3 21.5-inch Professional Production Monitor

code: PK-MT22DS-P3
  • 1023,76 €
  • RRP: 1023,76 €
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

Features:

  • 21.5-inch, 8-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
  • Daylight viewable with a maximum brightness of 1,200nits
  • Factory color-calibrated: 97% coverage of P3
  • Built-in Sony NP-F battery plates with pass-through power to power wireless video receivers
  • VESA mounting points at the back of the monitor
  • Built-in carrying handle and comes with a removable table stand
  • Rugged all-aluminum housing with 1/4″-20 mounting points on the sides
  • Two XLR audio outputs with 48V phantom power
  • Split screen monitoring, you can monitor up to three video inputs simultaneously
  • Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color

Portkeys PK-MT22DS-P3 (PK/MT22DS-P3, PK/MT22DS/P3, PKMT22DSP3, PK MT22DS P3) MT22DS P3 21.5-inch Professional Production Monitor

The Portkeys MT22DS P3 is a 21.5-inch professional production monitor built for demanding on-set use. With 1200 nits of brightness, it’s fully daylight-viewable, making it ideal for outdoor shoots. Designed for DITs, DPs, ACs, and Video Village setups, this rugged monitor offers exceptional versatility, color accuracy, and extensive I/O options.

The Full HD 1920 x 1080 screen features a 1000:1 contrast ratio, wide viewing angles, and an 8-bit panel with 97% P3 color space coverage. Each unit is factory-calibrated to ensure accurate, banding-free color reproduction.

Built from durable aluminum, the MT22DS P3 includes twelve 1/4"-20 mounting points and a rear carry handle for easy transport. It comes with a detachable table stand and supports VESA mounting for stand or rig integration (optional adapter available).

For power, the monitor offers flexible options: dual Sony NP-F plates with passthrough power for wireless video receivers, a 4-pin XLR (12–24V) input for AC mains, and dual V-Mount battery plates for mobile setups.

The monitor includes two full-size 3-pin XLR audio inputs with 48V phantom power, allowing audio embedding into the SDI output—ideal for livestream workflows.

  • Advanced Viewing Modes:
  • Dual-screen (horizontal/vertical combinations)
  • Triple-screen mode with rotation and mirroring
  • Simultaneous display of 16:9 and 9:16 crops for social media previews
  • Multi-camera support for 2–3 input feeds

With its robust design, precise color, and intelligent features, the Portkeys MT22DS P3 is a reliable monitor for every production environment—studio or location.


  • Display resolution: Full HD
  • Display size (inches): 21.50"
  • Connections: 3.5mm jack, Connection for external power source, HDMI, SDI, USB
  • Screen technology: LCD
  • Power supply: Electrical connection,  Rechargeable battery operated
  • Length: 6.58 cm
  • Width: 52.36 cm
  • Height: 32.06 cm
  • Weight: 5800 g

In The Box

  • 1x MT22DS P3 21.5-inch Professional Production Monitor
  • 1x Folding Holder
  • 1x Power Cable 12V8A
  • 1x M2.5 Inner Allen Key
  • 1x Crystal Drop Rubber Button
