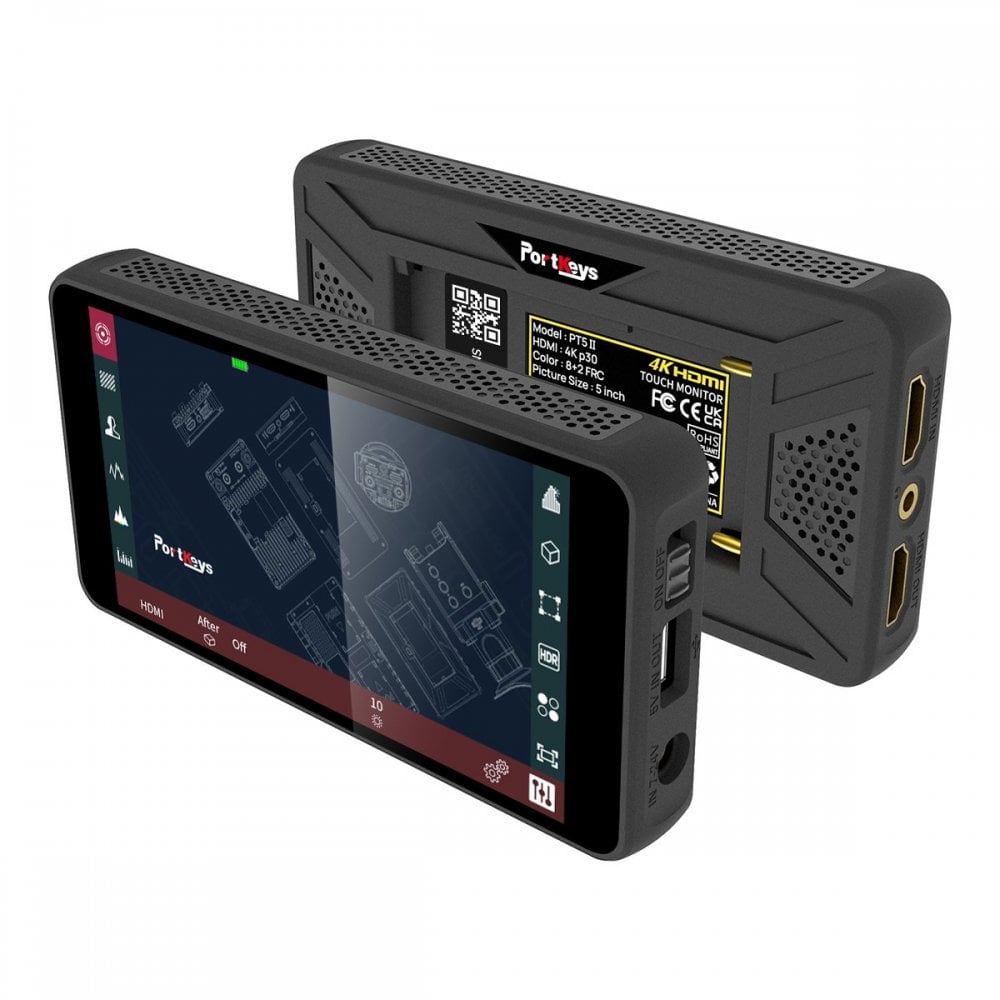

Portkeys PT5 II 5-inch Touchscreen On-camera Monitor

code: PK-PT5-II

£118.52
Secure yours with a deposit of
RRP: £118.52
|
|

Availability | Usually dispatched within 24 hours

Add to Compare

Features:

5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio
Maximum brightness of 500nits
Maximum input/output resolutions: 4K DCI at 24p or 4K UHD at 30p
Professional monitoring tools: Waveform, Histogram, Peaking, False Color
3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT
The dual battery plate accepts Sony NP-F or Canon LP-E6 batteries
5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input
Low power draw: only 7W

Description
Specification
Included In Box
Reviews
(0)

Portkeys PK-PT5-II (PK/PT5-II, PK/PT5/II, PKPT5II, PK PT5 II) PT5 II 5-inch Touchscreen On-camera Monitor

The Portkeys PT5 II is a compact, ultra-lightweight 5-inch on-camera monitor designed for content creators and filmmakers seeking an affordable yet capable monitoring solution. Weighing just 125g (4.41oz) thanks to its durable polycarbonate body, it offers excellent portability without compromising on features. Toughened glass protects the touchscreen display from scratches, while its slim profile (136 x 72 x 18.3mm) makes it feel as compact as a smartphone on your rig.

The PT5 II delivers vivid and accurate visuals with its 5-inch Full HD (1920 x 1080) panel, 500-nit brightness, 1000:1 contrast ratio, and wide 178° viewing angle. Its 10-bit (8+2 FRC) color processing ensures smooth gradients and rich detail without color banding.

Despite its entry-level positioning, the PT5 II includes a full suite of professional monitoring tools:

Exposure tools: Luma & RGB waveform, histogram, false color, zebra

Focus assist: Enhanced peaking algorithm

LUT support: Load 3D LUTs via USB for precise color monitoring

Framing tools: Grids, guides, image flip, and custom aspect ratios (0.25x to 4.0x)

Anamorphic de-squeeze: Supports standard and custom squeeze ratios

Audio monitoring: On-screen meters and a 3.5mm headphone jack

Image controls: Adjust sharpness, chroma, brightness, tint, and color temperature

The monitor features a 4K HDMI input and output, supporting signals up to 4K DCI 24p, 4K UHD 30p, and 1080p 60p. A 3.5mm headphone jack on the left side allows direct audio monitoring.

For power, the PT5 II offers excellent flexibility with a dual battery plate supporting both Sony NP-F and Canon LP-E6 batteries. Its low power consumption (only 7W) enables long runtimes on a single battery. Additionally, a 5.5mm barrel connector (7.4–24V) on the right side allows continuous operation with external power sources.

Compact, capable, and budget-friendly, the Portkeys PT5 II is an ideal companion for anyone needing reliable on-camera monitoring in a lightweight package.

Screen Size: 5”
Dimension: 136*72*18.3mm
Viewing Angle: 178°H/178°V
Brightness: 500nits
Resolution: 1920*1080
Contrast Ratio: 1000:1
Weight: 125g
Color Depth: 10bit(8+2 FRC)
Power Consumption: 7W
Material: PC+Toughened Glass
Input Voltage: 7V-24V

In The Box

1x PT5 II 5-inch Touchscreen On-camera Monitor
1x PT5 II Sun Shade
1x HDMI to HDMI Cable
1x HDMI to Micro HDMI Cable
2x Drop-proof rubber case
1x Monitor Holder Mount
1x Safety Box

Be the first to review PT5 II 5-inch Touchscreen On-camera Monitor. Write a review ›
