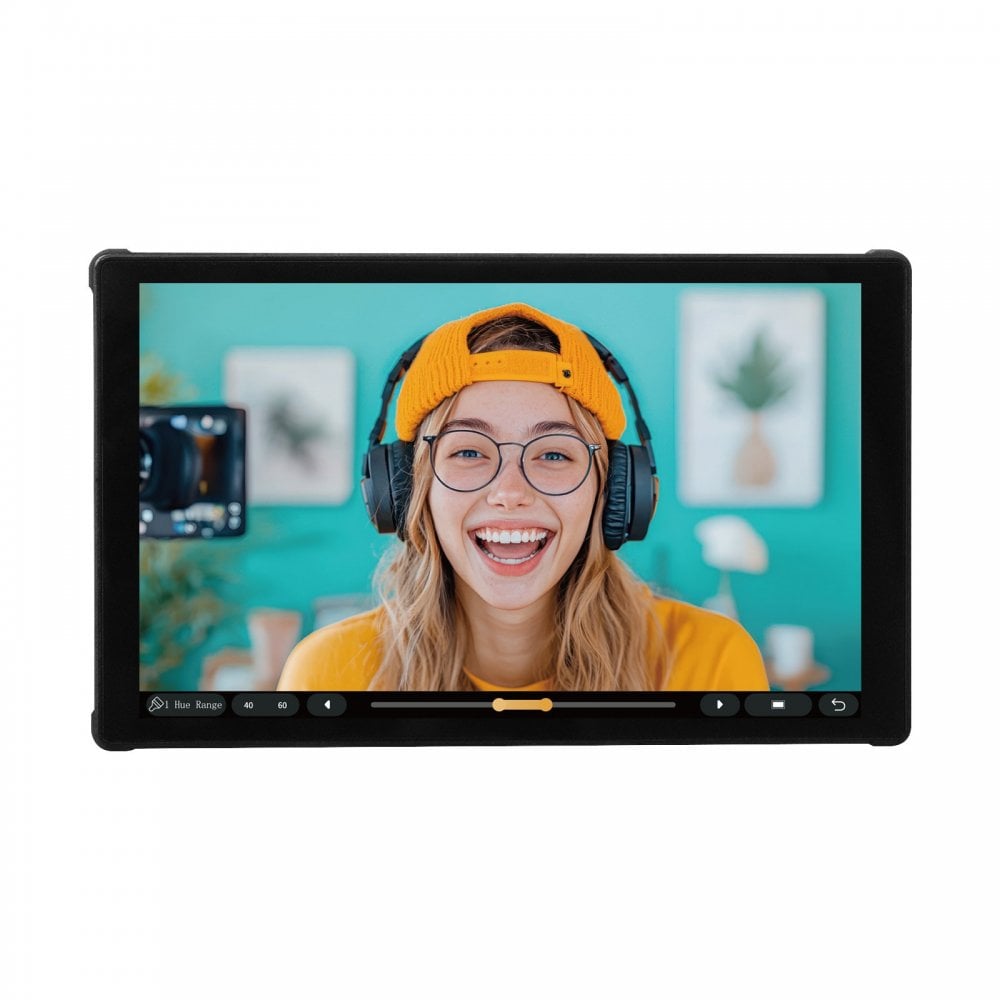

Portkeys PT5-III 5.4-inch Touchscreen Monitor

Portkeys PK-PT5-III (PK/PT5-III, PK/PT5/III, PKPT5III, PK PT5 III) PT5-III 5.4-inch Touchscreen Monitor

The Portkeys PT5 III is a compact and ultra-lightweight 5.4-inch on-camera monitor made from durable ABS and polycarbonate materials. Weighing just 154.5g (5.45oz) and measuring only 135.1 x 82.5 x 22mm, it’s ideal for mounting on cameras, rigs, or gimbals without adding bulk.

Its 8-bit touchscreen display features a crisp 1920 x 1152 resolution, 800nits of brightness, a 1000:1 contrast ratio, and a wide 178° viewing angle. Running on the intuitive MOVNORM OS, the PT5 III offers a user-friendly interface along with a comprehensive suite of professional monitoring tools:

3D LUT Support: Load and monitor custom LUTs via the USB-A port. LUT output through HDMI is supported.

Anamorphic De-squeeze: Includes standard ratios (1.33x, 1.5x, 2.0x) and custom aspect ratios from 0.25x to 4.0x.

Stretch Leg Tool: For vertical shooting, stretch only the bottom part of the image—output supported via HDMI.

Customizable False Color: 13 modes, including ARRI False Color.

Exposure Tools: RGB and Luma waveform, histogram, adjustable zebra.

Image Capture & Overlay: Snapshot your video feed (with or without LUTs) for continuity or shot matching.

360° Color Grader: Isolate and adjust hue/saturation for specific image areas.

Image Flip: Built-in for versatile monitor placement.

Rectangle Cropping: Zoom into specific areas with custom presets—ideal for live streaming.

Peaking: Define focus zones and zoom for precise focusing.

Framing Tools: Crosshair, guides, grids, check field, rectangle crop.

Image Adjustments: Contrast, brightness, sharpness, color temperature, and tint.

Audio Monitoring: On-screen audio meters.

Advanced Display Settings: Includes HDR HLG mode, OSD flip, and backlight controls.

Connectivity & Power

Inputs: HDMI (up to 4K DCI 30p), 3.5mm headphone jack, 3.5mm mic input.

Outputs: HDMI (up to 1080p60), USB-C for external power, USB-A for LUTs and firmware updates.

Battery: Integrated Sony NP-F battery plate; a low-power NP-F550 battery can last over two hours (7W power draw).

Mounting: Dual 1/4"-20 mounting points with locating pins (bottom and right sides).

On the left side of the PT5 III is one HDMI video input port that supports resolutions up to 4K DCI at 30p, along with a 3.5mm headphone jack and a 3.5mm microphone input. The HDMI output port that supports resolutions up to 1080P60 is situated on the right side of the monitor. Above the HDMI output port is one USB-C port which can be used to power the monitor externally via a power bank or V-Mount/Gold Mount battery, for example On the back of the Portkeys PT5 III is an integrated battery plate compatible with Sony NP-F style batteries. With a low power consumption of just 7W, a compact and lightweight Sony NP-F 550 battery can power the monitor for over two hours. For extended usage, you can connect the PT5 III to an external power source using its USB-C port. Additionally, there is a USB-A port located at the bottom of the monitor for performing firmware updates and uploading custom LUTs.

• Screen Size: 5.4"
• Color Gamut: 85% NTSC
• Resolution: 1920 x 1152
• Dimensions: 135.1 × 82.5 × 22 mm
• Viewing Angle: 178° Horizontal / 178° Vertical
• Brightness: 800 nits
• Contrast Ratio: 1000:1
• Color Depth: 8-bit
• Weight: 162 g
• Material: ABS + Polycarbonate
• Input Voltage: NP-F 7V ~ 24V
• Maximum Power Consumption: 7.5W
• Operating System: MOVNORM OS

In The Box

• Portkeys PT5-III 5.4-inch Touchscreen Monitor
• Sunshade
• Safety box
• USB flash drive
• HDMI (Full to Full) cable
• HDMI (Full to Micro) cable
• Rubber port covers
• MH-2 Monitor Mount
