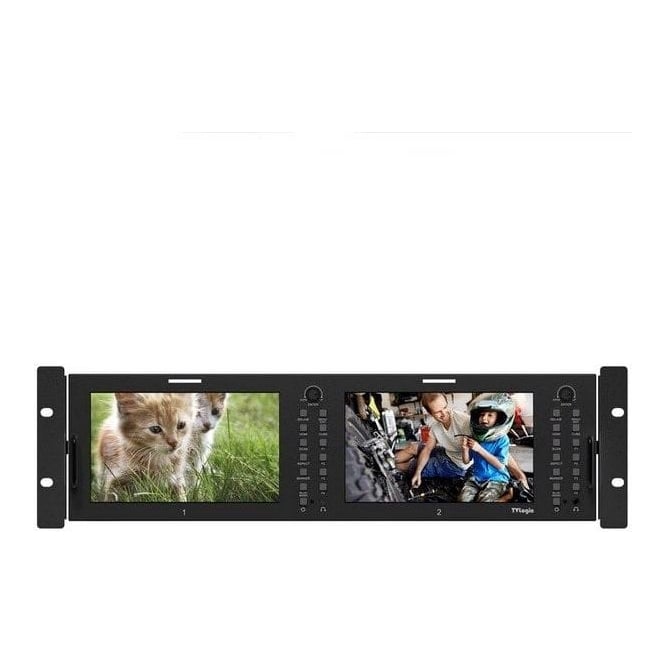

TV Logic HD/SD Multi-Channel LCD Rack Monitor

code: RKM-270A
  • £1,789.00
  • RRP: £1,976.19
Availability | Usually dispatched within 24 hours
Loading...

Features:

  • Two 7" screens with 1024 x 600 resolution
  • Native 16:9 wide screens
  • 400 cd/m² brightness and 800:1 contrast ratio
  • 170°/170° (H/V) wide viewing angles
  • 1:1 pixel mapping modes for SD/HD
  • Compatible with various SDI signal formats (480i, 576i, 720p, 1035i, 1080i, 1080p, 1080PsF)
  • Compatible with composite video signals
  • Supports HDMI (with HDCP) input, and DVI (without HDCP) input signals
  • Waveform and vectorscope
  • Embedded audio level meter function
  • Luma (Y') zone check (color/zebra type); range error function
  • Internal speaker with embedded audio and external audio input
  • Stereo audio out through phone jack and external audio input
  • Adjust user configuration using the control knob on front of the monitor
  • Blue only, mono, focus assist, H/V delay function
  • Internal pattern generator (0 to 100% gray; color bars + pluge)
  • Markers and safety areas (center marker, safety area marker, aspect marker, display size)
  • 1:1 scan/zoom function displays original image resolution without scaling while zoom function enlarges the original image
  • Externally controlled using parallel switch and network via a cable connection without having to attach other equipment to the unit
  • Supports TSL protocols via RS-422
  • Loop-through (SDI)
  • OSD user interface
  • VESA or rack-mounted

TV-Logic RKM 270A (RKM-270A, RKM270A, RKM/270A, rkm 270a) HD/SD Multi-Channel LCD Rack Monitor

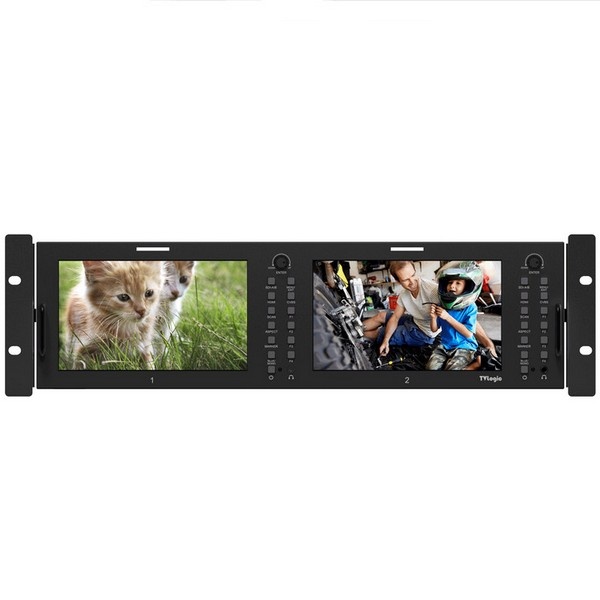

A brand-new rack-mount monitor with 2 × 7" LCD screens, which has the same high performance display as LVM-074W. Wide viewing angle IPS LCD with 1024 x 600 resolution. It supports SDI in/out and HDMI input.

View More Details

Display Spec.

  • Size : 7"
  • Resolution : 1024 X 600 (16 : 9)
  • Pixe Pitch : 0.15mm
  • Color Depth : 16.7M
  • Viewing Angle : 170°(H) / 170°(V)
  • Luminance : 400cd/m2
  • Contrast Ratio : 800:1
  • Display Area : 154(H) x 90(V) mm

Input

  • 1 X BNC : Analog Input (Composite)
  • 2 X BNC : 3G-SDI A/B Channel Input
  • 1 X HDMI : HDMI Input

Output

  • 1 X BNC : 3G-SDI Output

Audio

  • Audio In : Embedded Audio/Analog Stereo (Phone Jack)
  • Audio Out : Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom

Closed Caption

  • CC-608 ANC, CC-608 LINE 21, CC-708

Other Functions

  • USB : Firmware update by USB cable. Firmware update by USB memory stick
  • Ethernet : Ethernet Control support
  • Conversion : SDI-to-SDI,

Options

  • RKM-270A : HD/SD Multi-Channel LCD Rack Monitor

Options

RKM-270A : HD/SD Multi-Channel LCD Rack Monitor

- Main Body : 480.8 x 132 x 50.5 (mm) / 18.92 x 5.19 x 1.98 (inch)

- Weight : 4kg / 8.81lb
