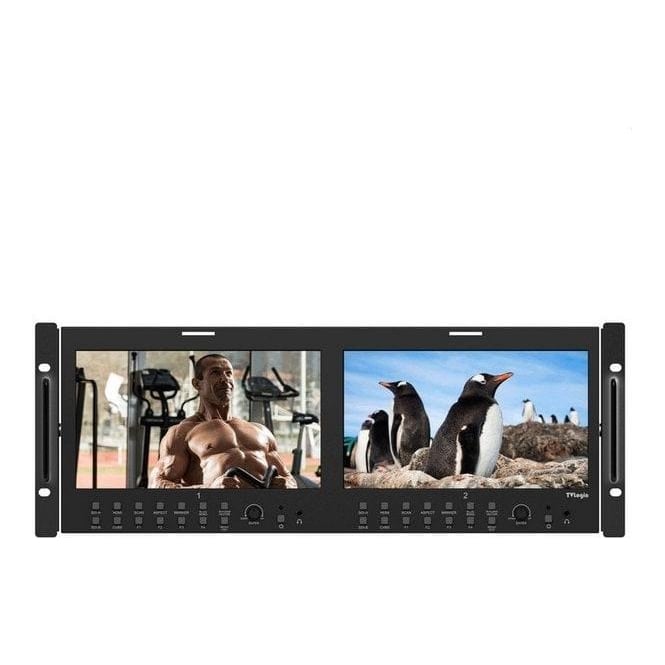

TV Logic HD/SD Multi-Channel LCD Rack Monitors

code: RKM-290A

£3,520.25
Secure yours with a deposit of
RRP: £4,191.96
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features:

Two 9" screens with 1920 x 1080 resolution
Native 16:9 wide screens
400 cd/m² brightness and 750:1 contrast ratio
176°/176° (H/V) wide viewing angles
1:1 pixel mapping modes for SD/HD
Compatible with various SDI signal formats (480i, 576i, 720p, 1035i, 1080i, 1080p, 1080PsF)
Compatible with composite video signals
Supports HDMI (with HDCP) input, and DVI (without HDCP) input signals
Waveform and vectorscope
Embedded audio level meter function
Luma (Y') zone check (color/zebra type); range error function
Internal speaker with embedded audio and external audio input
Stereo audio out through phone jack and external audio input
Adjust user configuration using the control knob on front of the monitor
Blue only, mono, focus assist, H/V delay function
Internal pattern generator (0 to 100% gray; color bars + pluge)
Markers and safety areas (center marker, safety area marker, aspect marker, display size)
1:1 scan/zoom function displays original image resolution without scaling while zoom function enlarges the original image
Externally controlled using parallel switch and network via a cable connection without having to attach other equipment to the unit
Supports TSL protocols via RS-422
Loop-through (SDI)
OSD user interface
VESA or rack-mounted

Description
Specification
Reviews

TV Logic RKM-290A (RKM290A, RKM 290A, RKM/290A, rkm-290a) HD/SD Multi-Channel LCD Rack Monitors

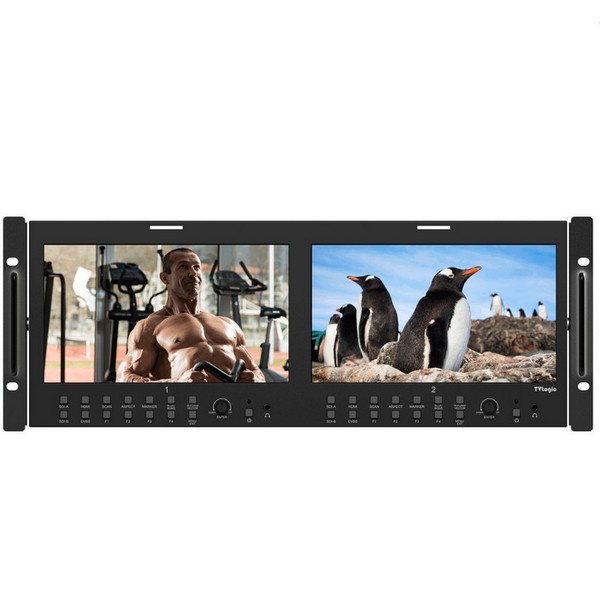

A brand-new rack-mount monitor with 2 × 9" LCD screens. which has the same high performance display as LVM-095W-N with full HD resolution and wide viewing angle capability. It supports SDI in/out and HDMI input.

- Main Body : 480.2 x 175 x 47.4 (mm) / 18.9 x 6.55 x 1.86 (inch)

- Weight : TBD

Display Spec.

Size : 9"
Resolution : 1920 X 1080 (16 : 9)
Pixe Pitch : 0.1035mm
Color Depth : 16.7M
Viewing Angle : 176°(H) / 176°(V)
Luminance : 400cd/m2
Contrast Ratio : 750:1
Display Area : 199(H) x 112(V) mm

Input

1 X BNC : Analog Input (Composite)
2 X BNC : 3G-SDI A/B Channel Input
1 X HDMI : HDMI Input

Output

1 X BNC : 3G-SDI Output

Audio

Audio In : Embedded Audio/Analog Stereo (Phone Jack)
Audio Out : Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom

Closed Caption

CC-608 ANC, CC-608 LINE 21, CC-708

Other Functions

USB : Firmware update by USB cable, Firmware update by USB memory stick
Ethernet : Ethernet Control support
Conversion : SDI-to-SDI,
