Sony 17" LCD Production Monitor

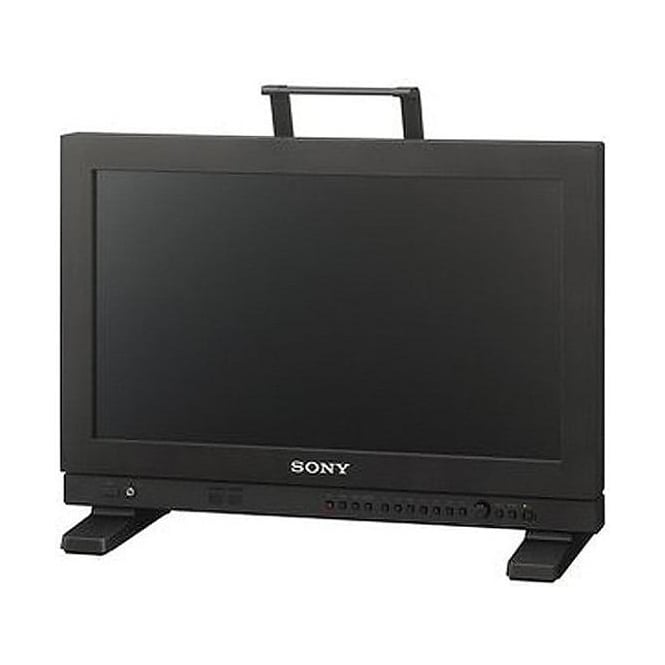

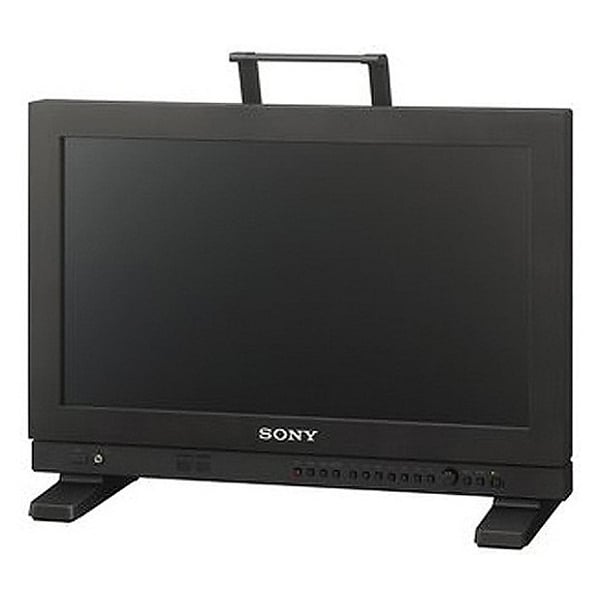

Sony LMD-A170 (LMD_A170, LMD/A170, LMD A170) 17" LCD Production Monitor

The LMD-A170 is a 17-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes, and an optional protection kit.

The LMD-A series offers full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. This Series also offers the same user-interface design, convenient features and functions, and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field: DC operation, VESA mount and yoke-mount holes, and an optional protection kit (LMD-A170 only).

This broad and powerful professional LCD monitor continues to meet the broadest range of application needs for excellent cost:performance picture monitoring.

Picture Performance

• Panel: a-Si TFT Active Matrix LCD
• Picture Size (Diagonal): 16.5 inches
• Effective Picture Size (H x V): 365.8 x 205.7 mm 14 1/2 x 8 1/8 inches
• Resolution (H x V): 1920 x 1080 pixels (Full HD)
• Aspect: 16:9
• Pixel Efficiency: 99.99%
• Colors: Approx.16.7 million colors
• Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
• Normal Scan: 0% scan
• Over Scan: 5% over scan

Input

• Composite Input: BNC (x1), 1 Vp-p ±3dB, sync negative
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1) (HDCP correspondence)
• Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩ or higher
• Parallel Remote: RJ-45 Modular connector 8-pin (x1)(Pin-assignable)
• Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
• DC Input: XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 Ω or less)

Output

• Composite Output: BNC (x1), Loop-through, with 75 Ω automatic terminal function
• SDI Output: BNC (x2), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
• Audio Monitor Output: Stereo mini jack (x1)
• Speaker (Built-in) Output: 1.0 W (Monaural)
• Headphone Output : Stereo mini jack (x1)

General

• Power Requirements: 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz, DC 12 V to 17 V, 3.6 A to 2.5 A
• Power Consumption: Approx. 49 W (max.), Approx. 42 W (average power consumption in the default sattus)
• Inrush Current: (1) Maximum possible inrush current at initial switch-on(Voltage changes caused by manual switching):60 A peak,0.3 A r.m.s.
• (240V AC), (2) Inrush current after a mains interruption of five seconds(Voltage changes caused at zero-crossing):48 A peak,0.2 A r.m.s.(240V AC)
• Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C), 32°F to 95°F (Recommended: 68°F to 86°F)
• Operating Humidity: 30% to 85% (no condensation)
• Storage/Transport Temperature: -20°C to +60°C, -4°F to +140°F
• Storage/Transport Humidity: 0% to 90%
• Operating/Storage/Transport Pressure: 700 hPa to 1060 hPa
• Dimensions (W x H x D): 1: 420.2 x 288.8 x 70.0 mm (without monitor feet), 420.2 x 311.3 x 165.0 (with monitor feet), 16 5/8 x 11 3/8 x 2 7/8 inches (without monitor feet)
• 16 5/8 x 12 3/8 x 6 1/2 inches (with monitor feet)
• Mass: Approx. 4.9 kg (with monitor feet), Approx. 10 lb 13 oz (with monitor feet), Approx. kg (without monitor feet), Approx. lb oz (without monitor feet)

In The Box

• Sony LMD-A170 17" LCD Production Monitor
• AC Power Cord
• AC Plug Holder
• Handle
• 4 x Fixing Screw for the Handle
• Monitor Feet
• CD-ROM
