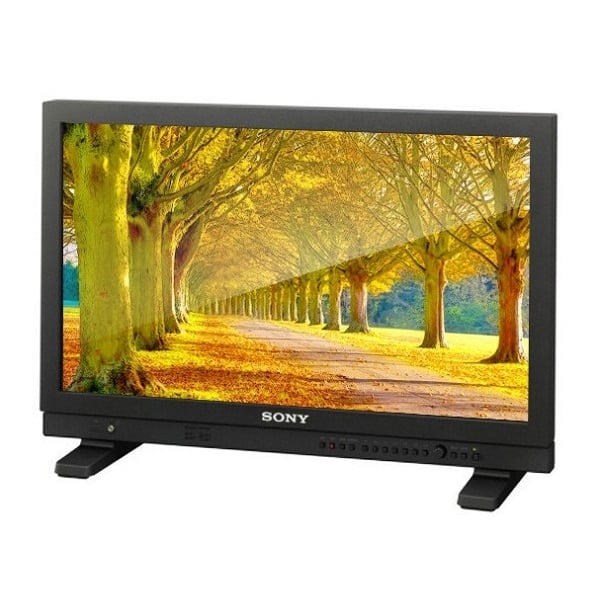

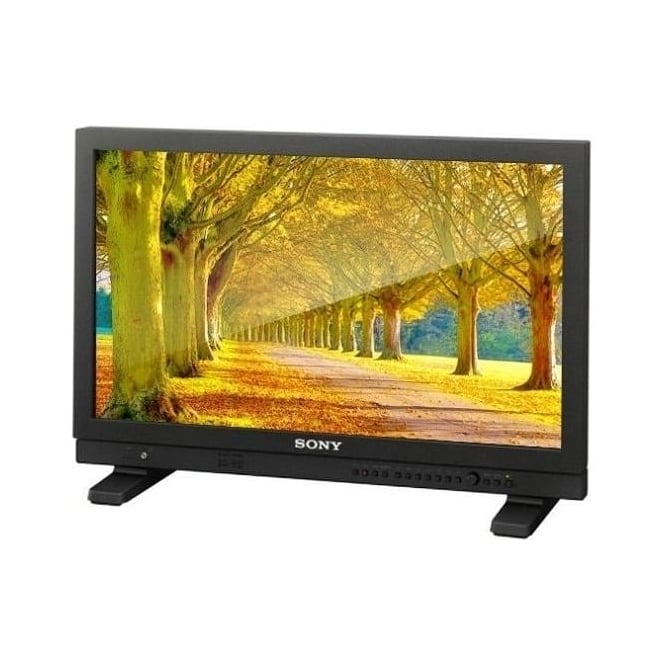

Sony 22-inch LCD Production Monitor

Sony LMD-A220 (LMDA220, LMD/A220, lmd-a220) 22-inch LCD Production Monitor

The LMD-A220 22-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes.

Stylish lightweight and slim body with industry’s widest viewing angle

• Robust double-coated paint finish and stylish sharp edges chassis. Perfect for group monitoring. More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. It provides cost savings for transportation and power consumption. It also saves space and weight in digital galleries.

Latest camera-linkage functions

• Includes camera and lens metadata display and a Picture and Picture function with side by side, wipe, blending, difference and auto input switching. Ideal for OnSet and live production monitoring.

User presets and password protection

• Secure your monitor settings for greater peace of mind. Five user presets are available. One colour temperature memory USER1 can also be password protected.

2K format display and Dual-Link HD-SDI mode

• This feature offers a cost effective 2K monitoring solution, ideal for OnSet digital cinematography. In addition, a Dual-link HD-SDI input is available.

Multiple monitors firmware upgrade utility

• Save you time to upgrade simultaneously your monitors through your network.

Picture Performance

• Panel: a-Si TFT Active Matrix LCD
• Picture Size (Diagonal): 21.5 inches
• Effective Picture Size (H x V): 476.1 x 267.8 mm, 18 3/4 x 10 5/8 inches
• Resolution (H x V): 1920 x 1080 pixels (WUXGA)
• Aspect: 16:90000
• Pixel Efficiency: 99.99%
• Colors: Approx.16.7 million colors
• Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
• Normal Scan: 0% scan
• Over Scan: 5% over scan

Input

• Composite Input: BNC (x1), 1 Vp-p ±3dB, sync negative
• SDI Input: BNC (x2)
• HDMI Input: HDMI (x1) (HDCP correspondence)
• Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩ or higher
• Parallel Remote: RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
• Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
• DC Input: XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 Ω or less)

Output

• Composite Output: BNC (x1), Loop-through, with 75 Ω automatic terminal function
• SDI Output: BNC (x2), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
• Audio Monitor Output: Stereo mini jack (x1)
• Speaker (Built-in) Output: 1.0 W (Monaural)
• Headphone Output: Stereo mini jack (x1)

General

• Power Requirements: 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz, DC 12 V to 17 V, 3.6 A to 2.6 A
• Power Consumption: Approx. 47 W (max.), Approx. 43 W (average power consumption in the default sattus)
• Inrush Current: (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 57 A peak, 0.3 A r.m.s. (240V AC), (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 46 A peak, 0.2 A, r.m.s. (240V AC)
• Operating Temperature: 0°C to 35°C (Recommended: 20°C to 30°C), 32°F to 95°F (Recommended: 68°F to 86°F)
• Operating Humidity: 30% to 85% (no condensation)
• Storage/Transport Temperature: -20°C to +60°C, -4°F to +140°F
• Storage/Transport Humidity: 0% to 90%
• Operating/Storage/Transport Pressure: 700 hPa to 1060 hPa
• Dimensions (W x H x D) *1: 517.8 x 338.0 x 67.2 mm (without monitor feet), 517.8 x 360.5 x 165.0 mm (with monitor feet), 20 1/2 x 13 3/8 x 2 3/4 inches (without monitor feet)
• 20 1/2 x 14 1/4 x 6 1/2 inches (with monitor feet)
• Mass: Approx. 5.4 kg (with monitor feet), Approx. 11 lb 14 oz (with monitor feet), Approx. kg (without monitor feet), Approx. lb oz (without monitor feet)
• Supplied Accessories: AC power cord (1), AC plug holder (1), Handle (1) (including 4 screws), Before Using This Unit (1), CD-ROM (1)
• Optional Accessories: SU-561 Monitor Stand, MB-L22

In The Box

• 22-inch LCD Production Monitor
• AC power cord (1)
• AC plug holder (1)
• Handle (1) (including 4 screws)
• Before Using This Unit (1)
• CD-ROM (1)
